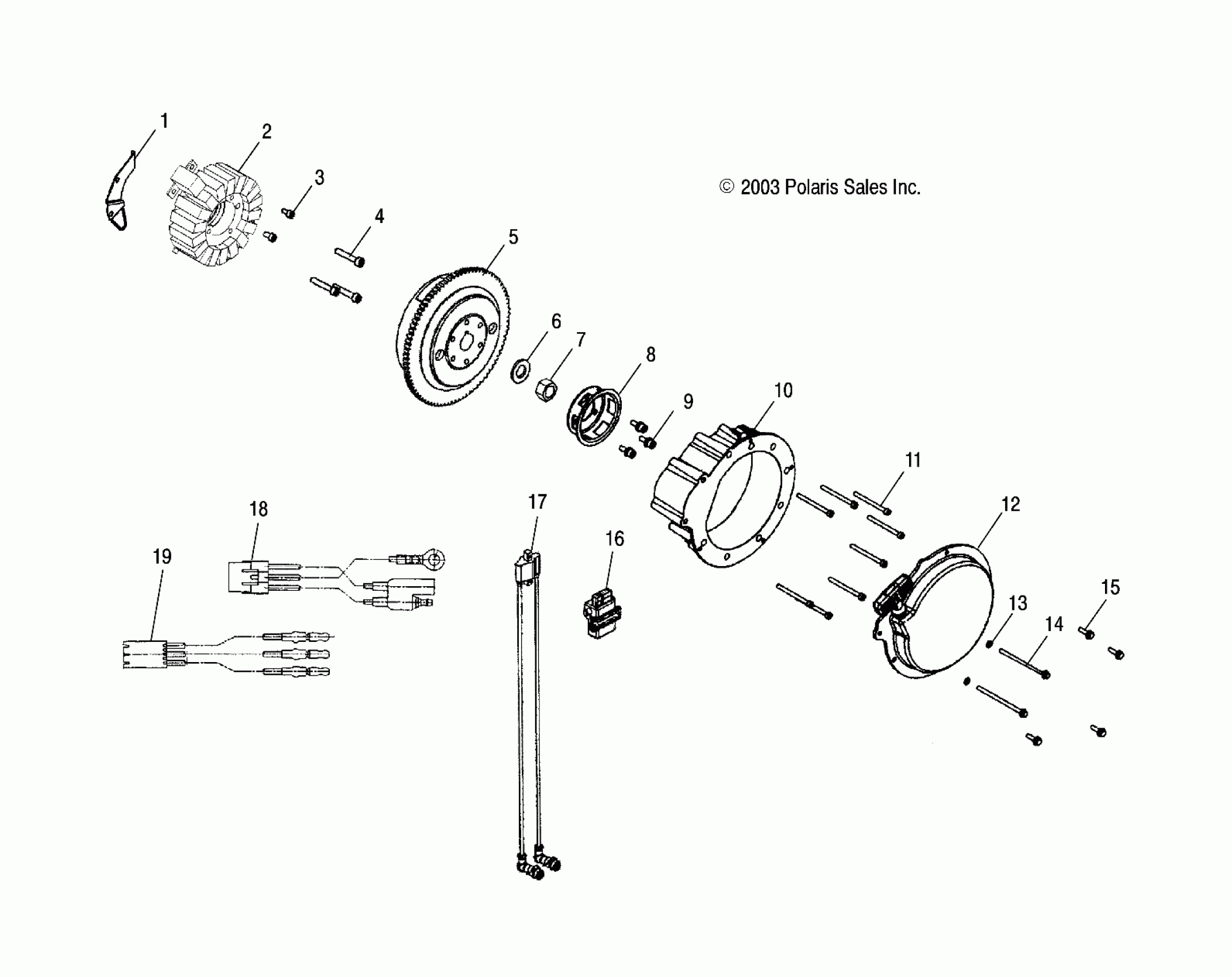

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD ENGINE, MAGNETO and RECOIL - A05MH68AD (4999609960E04) Diagram

#

Description
Price

1

Holddown, Wire

5245364

$49.99

2

Asm., Stator (If built after 3/04/05)

4010901

$549.99

2

Asm., Stator (If built before 3/04/05)

4011103

Unavailable

3

SCREW

7517847

$3.19

4

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.39

5

Asm., Flywheel

4010899

$504.99

6

WASHER

7555907

$5.59

7

Nut, Hex

7547213

$4.79

8

Pulley, Starting

3021474

$6.19

9

Screw

7516730

$6.39

10

Asm., Housing Recoil, Lower

1202647

$198.39

11

Bolt

7517807

$4.79

12

Asm., Recoil Housing, Twin

1202648

Unavailable

12

Cover, Recoil

2633114

$78.39

13

WASHER, FLAT

7555998

$1.49

14

Screw

7517306

Unavailable

15

Screw

7516730

$6.39

16

Controller, Ignition

4011017

$311.99

17

Coil, Ignition

4010898

$169.99

18

Harness, Jumper, Ignition Update (Use w/4010901)

2410657

$19.83

19

Harness, Jumper, Ignition Update (Use w/4010901)

2410658

Unavailable
