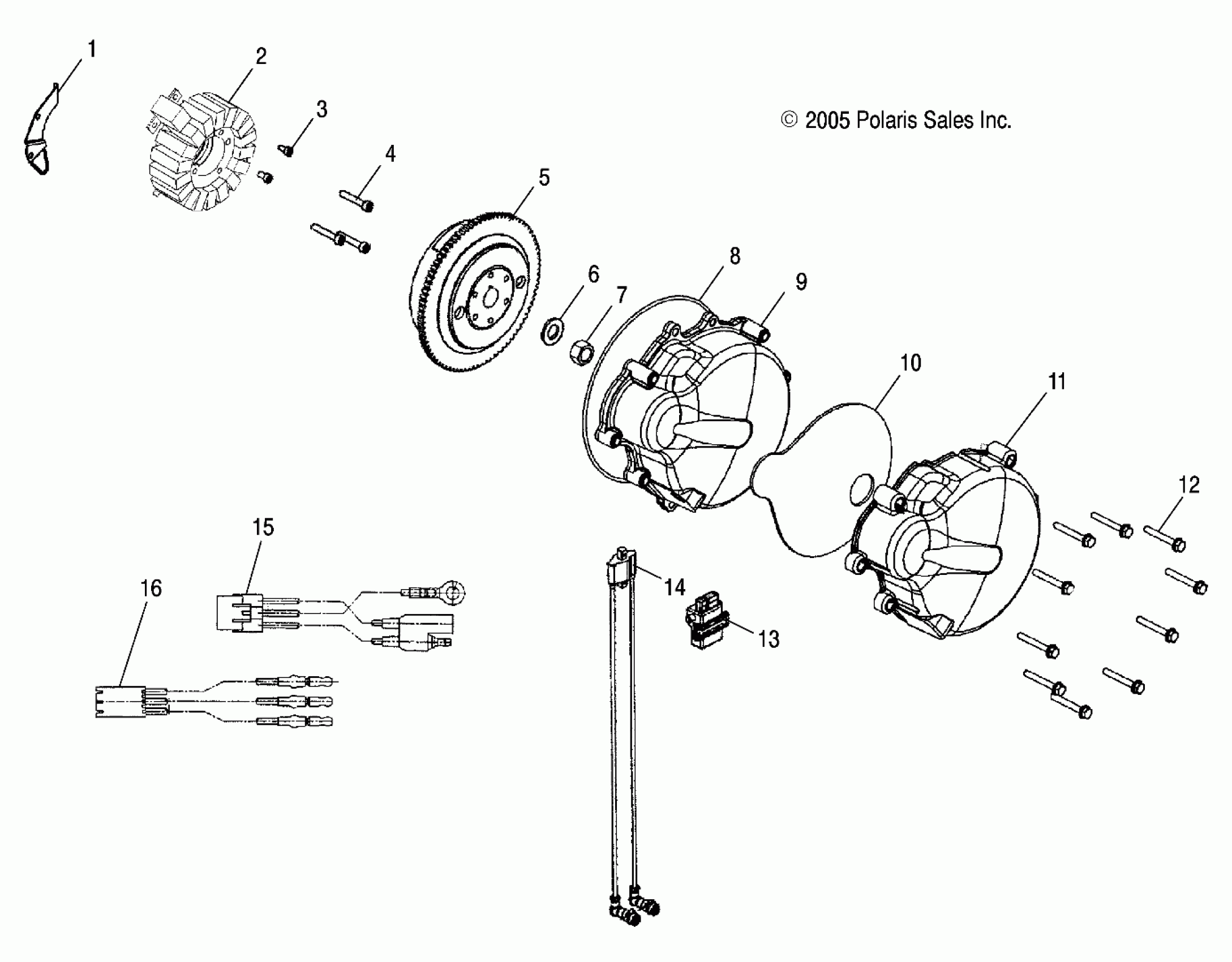

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD ENGINE, MAGNETO - A05MH68AK/AN (4999200179920017E01) Diagram

#

Description
Price

1

Holddown, Wire

5245364

$49.99

2

Asm., Stator [If built after 3/04/05]

4010901

$579.99

2

Asm., Stator [If built before 3/04/05]

4011103

$519.99

3

SCREW

7517847

$3.17

4

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.32

5

Asm., Flywheel

4010899

$509.99

6

WASHER

7555907

$5.56

7

Nut, Hex

7547213

$4.76

8

O-Ring

5412458

Unavailable

9

Asm., Cover, Stator

1202641

$86.51

10

Cover, Sound Dampening

5812283

$36.41

11

Cover, Outer

5435099

Unavailable

12

Screw

7517950

$5.56

13

Controller, Ignition

4011017

$331.89

14

Coil, Ignition

4010898

Unavailable

15

Harness, Jumper Ignition Update

2410657

$19.68

16

Harness, Jumper Ignition Update

2410658

Unavailable
