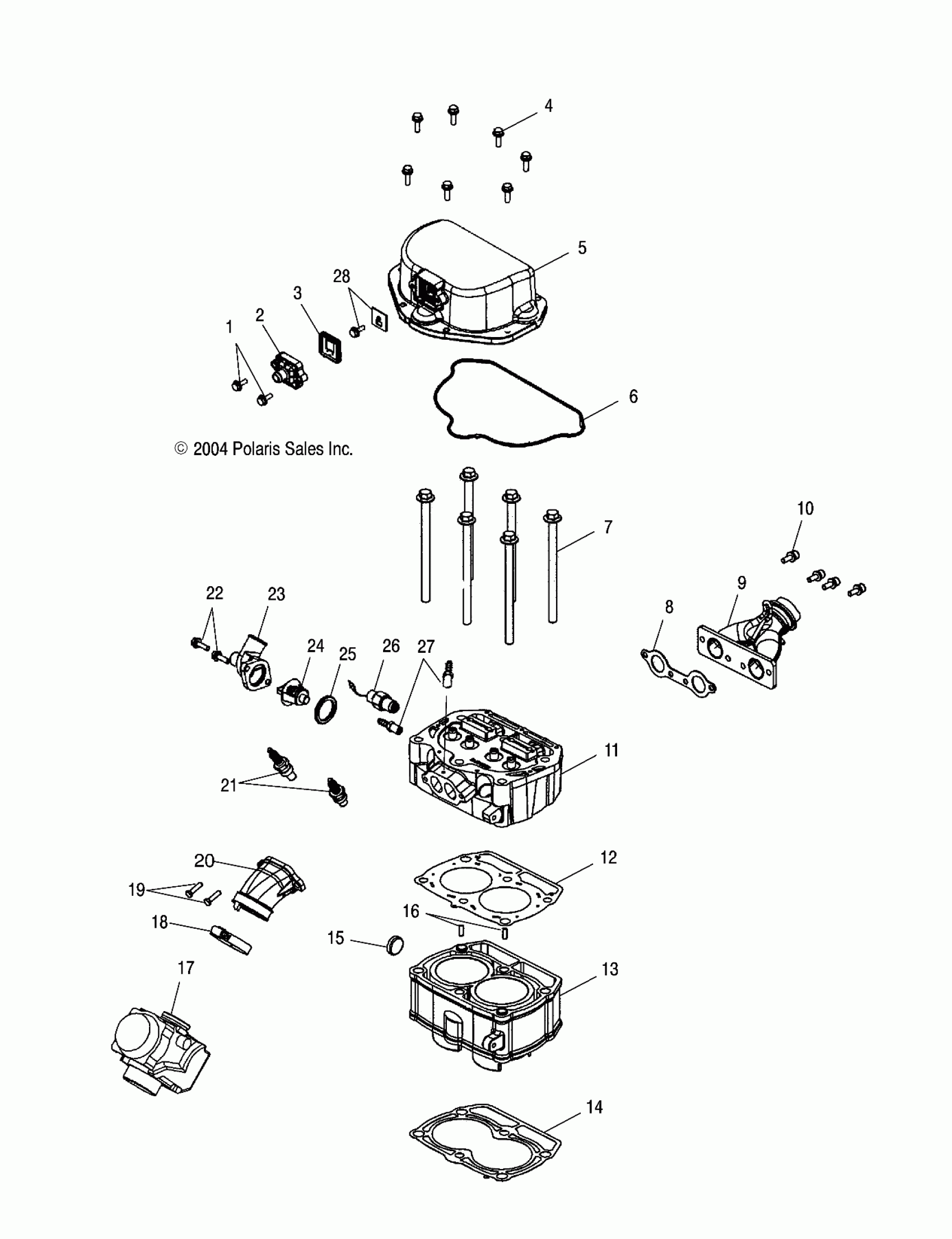

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD ENGINE, CYLINDER and CYLINDER HEAD - A05MH68AK/AN/AD (4999609960D09) Diagram

#

Description
Price

1

SCREW

7517277

$3.19

2

Cover, Breather

5432533

Unavailable

3

ASM-REED W/GASKET [AK][AN]

3021352

$28.32

3

Gasket, Breather [AD]

5412730

$50.18

4

SCREW

7516822

$2.39

5

Asm., Cover, Rocker [AK][AN]

1201973

Unavailable

5

Cover, Valve [AD]

5134427

Unavailable

6

Seal, Valve Cover [AD]

5412632

Unavailable

6

Seal, O-Ring [AK][AN]

5411862

$48.56

7

Bolt, Head

7518274

Unavailable

8

GASKET

5811511

$48.56

9

MANIFOLD, BLACK [SEE EXHAUST SYSTEM PAGE, REF. 23]

-------

Unavailable

10

Screw

7518234

$2.99

11

Guide, Valve

5131429

Unavailable

11

Head, Cylinder

3021483

Unavailable

12

Gasket, Head

5247359

$55.99

13

Kit, Cylinder [Incl. 15]

2202696

$482.62

14

GASKET, BASE

5247360

$39.99

15

PLUG

7051534

$5.59

16

DOWEL

7661175

$5.59

17

ASM., CARBURETOR [SEE CARBURETOR PAGE, REF. 48]

-------

Unavailable

18

Clamp, Hose

7080681

$9.59

19

Screw

7517666

$6.99

20

Adapter, Carburetor

1253415

$91.99

21

Spark Plug, RC7YC

3070195

Unavailable

22

SCREW

7516822

$2.39

23

Cover, Thermostat

5631390

Unavailable

24

Thermostat

7052352

$59.99

25

O-Ring

5411521

$24.19

26

Sensor, Themistor [Built 10/05/04 and After, AK/AN]

4010398

$36.41

26

Sensor, Themistor [AD][Built 10/04/04 and Before, AK/AN]

4011071

Unavailable

27

Fitting

7052145

$9.59

28

Plate, Breather [AD]

5248146

Unavailable
