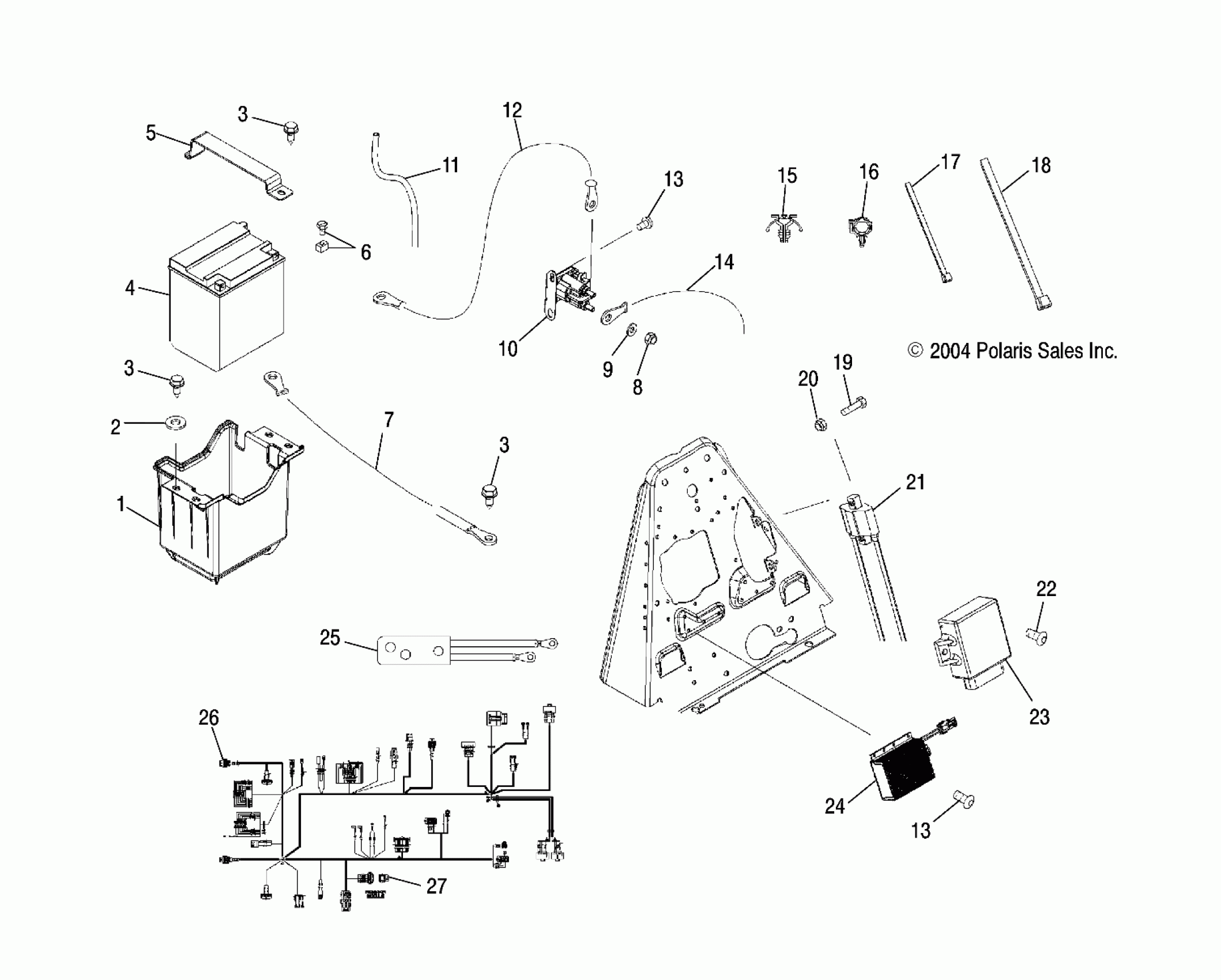

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD ELECTRICAL - A05MH68AK/AN/AD (4994229422C14) Diagram

#

Description
Price

1

BOX, BATTERY

5435696

$23.74

2

Washer, Flat

7555859

$1.19

3

Bolt

7512232

$1.19

3

Bolt

7512232

$1.19

3

Bolt

7512232

$1.19

4

BATTERY

4010630

$147.60

5

STRAP, BATTERY HOLDDOWN

5247376

$15.19

6

Kit, Battery Bolt

2202099

$5.99

7

CABLE, BATTERY/FRAME

4011139

$44.51

8

Nut, Hex, Jam

7547283

$3.17

9

WASHER, SPRING LOCK

7552801

$1.59

10

Switch, Magnetic (If built after 1/10/05)

4011251

$76.89

10

Switch, Magnetic (If built before 1/10/05)

4011072

$76.89

11

Tube, Vent

5432077

Unavailable

12

Cable, Battery/Solenoid

4010471

Unavailable

13

SCREW

7512024

$4.76

13

SCREW

7512024

$4.76

14

CABLE, SOLENOID/STARTER

4010376

$48.56

15

MOUNT, CABLE TIE

7080965

$7.27

16

CLIP, ROSEBUD

4020139

$4.76

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

BOLT

7512007

$3.97

20

Nut, Nylok

7541925

$0.79

21

Coil, Ignition

4010898

Unavailable

22

Screw

7512084

$1.19

23

Controller, Ignition

4011017

$331.89

24

Module, Controller

4011044

$189.99

25

Harness, Winch

2410535

$93.08

26

Kit, Fusible Link

2202147

$84.99

26

Harness, Main

2410466

Unavailable

27

Kit, Harness, Resistor Module

2204890

$161.49
