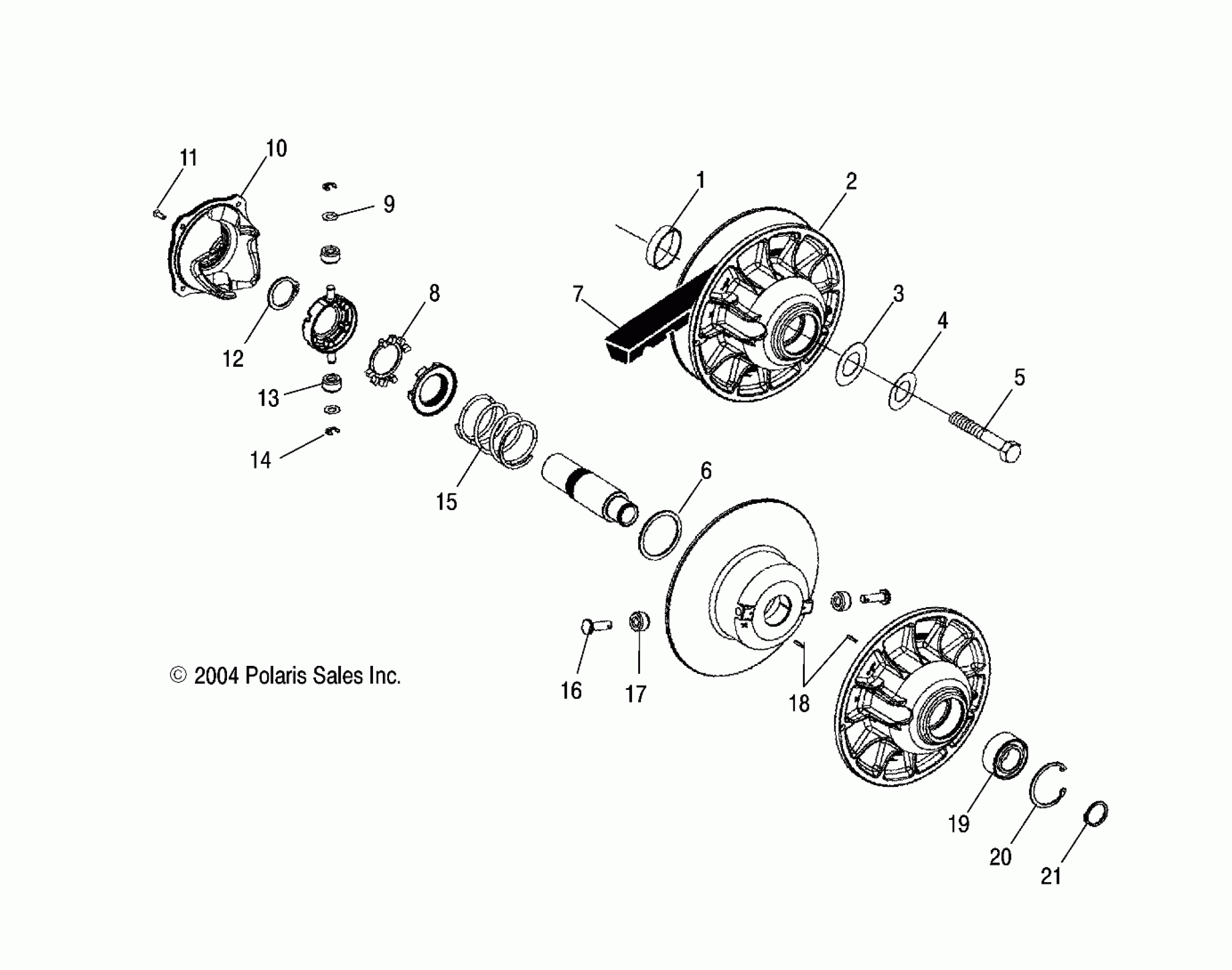

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD DRIVEN CLUTCH - A05MH68AK/AN/AD (4999609960C10) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 6,8,9,11-14,16-21](If built before 2/08/05)

1322419

$619.99

2

Asm., Driven Clutch [Incl. 6,8,9,11-14,16-21](If built after 2/08/05)

1322551

$619.99

3

Washer, Domed

5248227

$2.38

4

WASHER, SPRING LOCK

7552901

$1.19

5

BOLT

7515382

$2.38

6

WASHER, THRUST

3234200

$8.99

7

Belt, Drive

3211091

$94.99

8

Retainer, Spring, Inner (1322551)

7710564

$74.99

8

Dampener, Spider (1322419)

3234206

$74.99

9

Washer, Thrust (1322551)

7556226

$5.65

9

Washer, Thrust (1322419)

3234196

$5.65

10

Asm., Cam

3234208

$267.99

11

Screw, Cap

3234192

$4.76

12

Ring, Retaining (1322551)

7710522

$13.49

12

Ring, Retaining (1322419)

3234194

$13.49

13

ROLLER, CLUTCH

3234207

$48.56

14

RET.E-RING-E T.375-TEAM#130059 (1322551)

7710523

$3.49

14

Ring, Retaining (1322419)

3234195

$3.49

15

Spring, Compression

3234199

Unavailable

16

PIN, ROLLER

3234201

$15.87

17

ROLLER, CLUTCH

3234197

$48.56

18

PIN,SPRING SLOTTED .125X.625

3234202

$3.97

19

RING, RETAINING

3234205

$11.11

20

Ring, Retaining

3234204

$7.94

21

BEARING, BALL

3234203

$29.99
