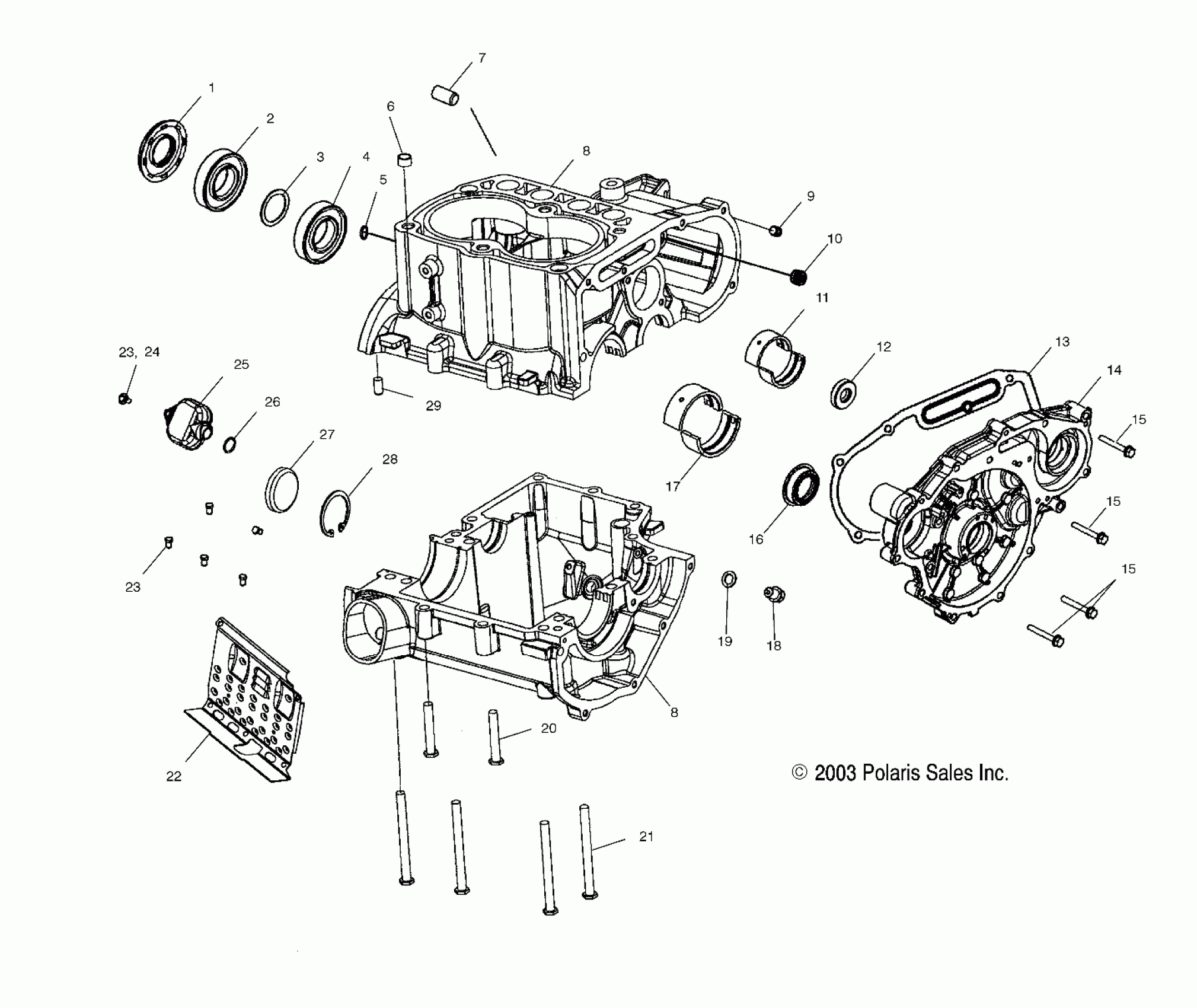

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD CRANKCASE - A05MH68AK/AN/AD (4987438743D03) Diagram

#

Description
Price

1

Seal, Flanged

5412114

$39.99

2

BEARING, BALL

3514361

Unavailable

3

BUSHING

7556194

$3.99

4

BEARING, BALL

3514318

$43.99

5

PLUG-EXPANSION,19MM

7051530

$7.19

6

DOWEL

7661175

$5.59

7

Plug

7518007

$5.65

8

Kit., Crankcase [Incl.18-26]

2202864

Unavailable

8

Kit., Crankcase [Incl.18-26]

2202864

Unavailable

9

Plug

7051531

$6.39

10

PLUG

7052288

Unavailable

11

BEARING

5132753

Unavailable

12

SEAL, OIL

5412455

$24.27

13

Gasket, Cover

5812511

Unavailable

14

Asm., Cover, Engine, Magneto

1200002

$246.89

15

Screw

7517950

$5.59

15

Screw

7517950

$5.59

15

Screw

7517950

$5.59

16

Seal

5412677

Unavailable

17

BEARING, MAIN JOURNAL

3585704

$28.56

18

Plug, Magnetic

7052306

$15.37

19

WASHER, COPPER

5812232

$1.59

20

SCREW

7517793

$5.59

21

SCREW

7517792

$2.39

22

PLATE, BAFFLE

5211785

$39.99

23

SCREW

7518045

$10.39

23

SCREW

7518045

$10.39

24

BOLT

7516603

$10.39

25

Asm., Pickup, Oil

1202663

$51.99

26

O-Ring

5812016

$3.19

27

PLUG

3060004

$15.19

28

RING, RETAINING

7710512

$3.99

29

PIN-DOWEL,M8 X 16 SS

7663001

$11.19
