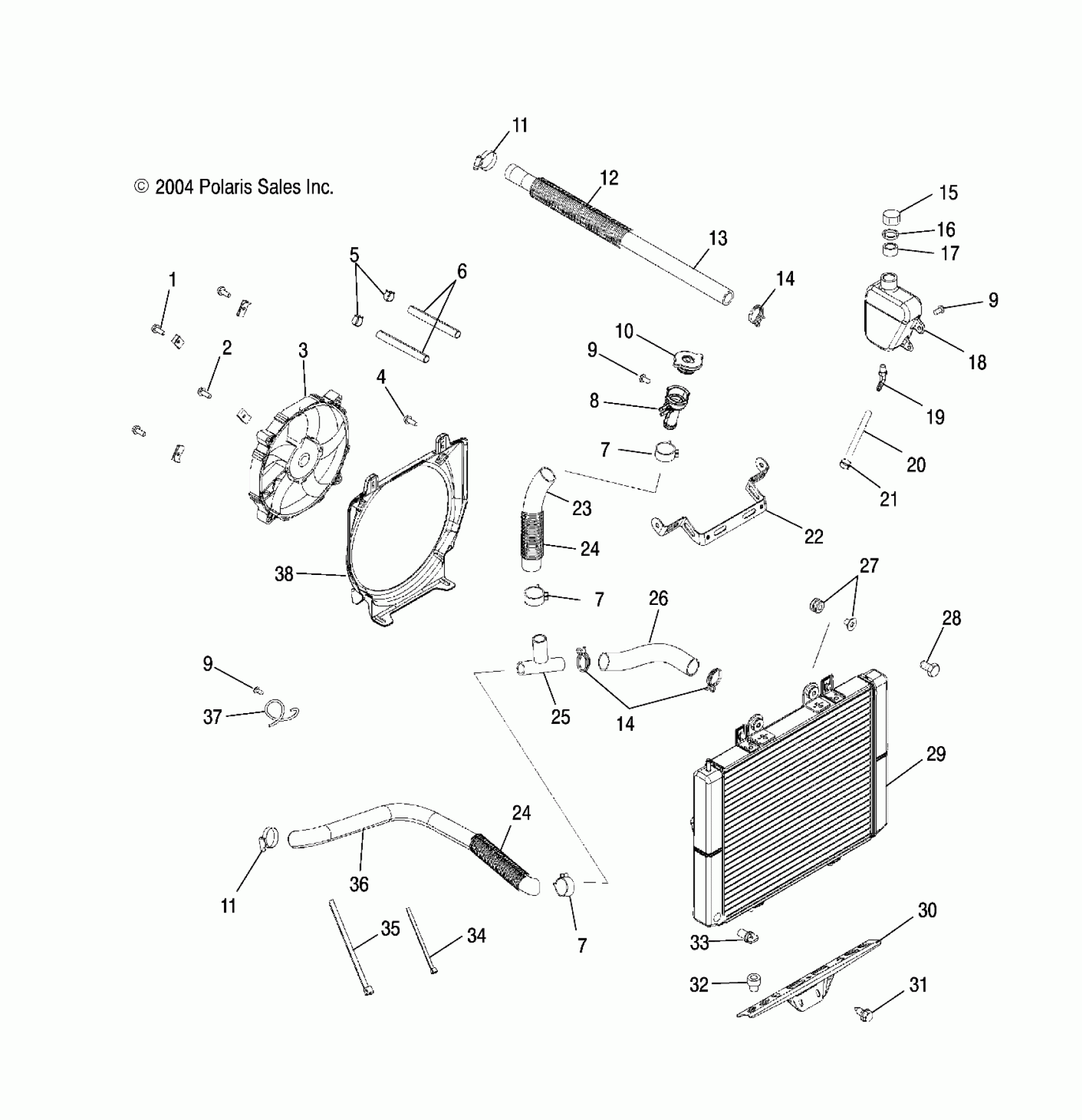

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD COOLING SYSTEM - A05MH68AK/AN/AD (4994199419A13) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

U-Clip

7547197

$6.23

3

ASM., FAN

2410413

$251.99

4

Screw w/Washer

7547220

$5.99

5

HOSE CLAMP, RED

7080003

$1.49

6

Line

8450040

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Cap, Pressure

1240044

Unavailable

11

CLAMP, HOSE

7081174

$7.19

11

CLAMP, HOSE

7081174

$7.19

12

Guard, Hose, 9 Inch

5521597

Unavailable

13

Hose, Engine, Upper

5412030

Unavailable

14

Clamp

7080826

$4.79

14

Clamp

7080826

$4.79

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

Tank, Surge

5431673

Unavailable

19

FITTING, 90 DEGREE

7052065

$7.19

20

Line, Fuel

8450003-1525

$84.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose, Filler Neck

5412311

$28.32

24

Guard, Hose, 6.75 Inch

5521644

Unavailable

24

Guard, Hose, 6.75 Inch

5521644

Unavailable

25

T-Connector

7052282

$24.99

26

Hose, Lower Radiator

5412312

$40.46

27

ASM., GROMMET AND INSERT

5411975

$3.19

28

Screw

7515179

$2.39

29

Radiator

1240203

Unavailable

30

Bracket, Radiator, Lower, Black

5245773-067

$144.99

31

SCREW

7517386

$1.49

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

36

Hose, Engine, Lower

5412585

$52.60

37

Retainer, Hose

7042089

$7.03

38

Shroud, Fan

5434171

$70.39
