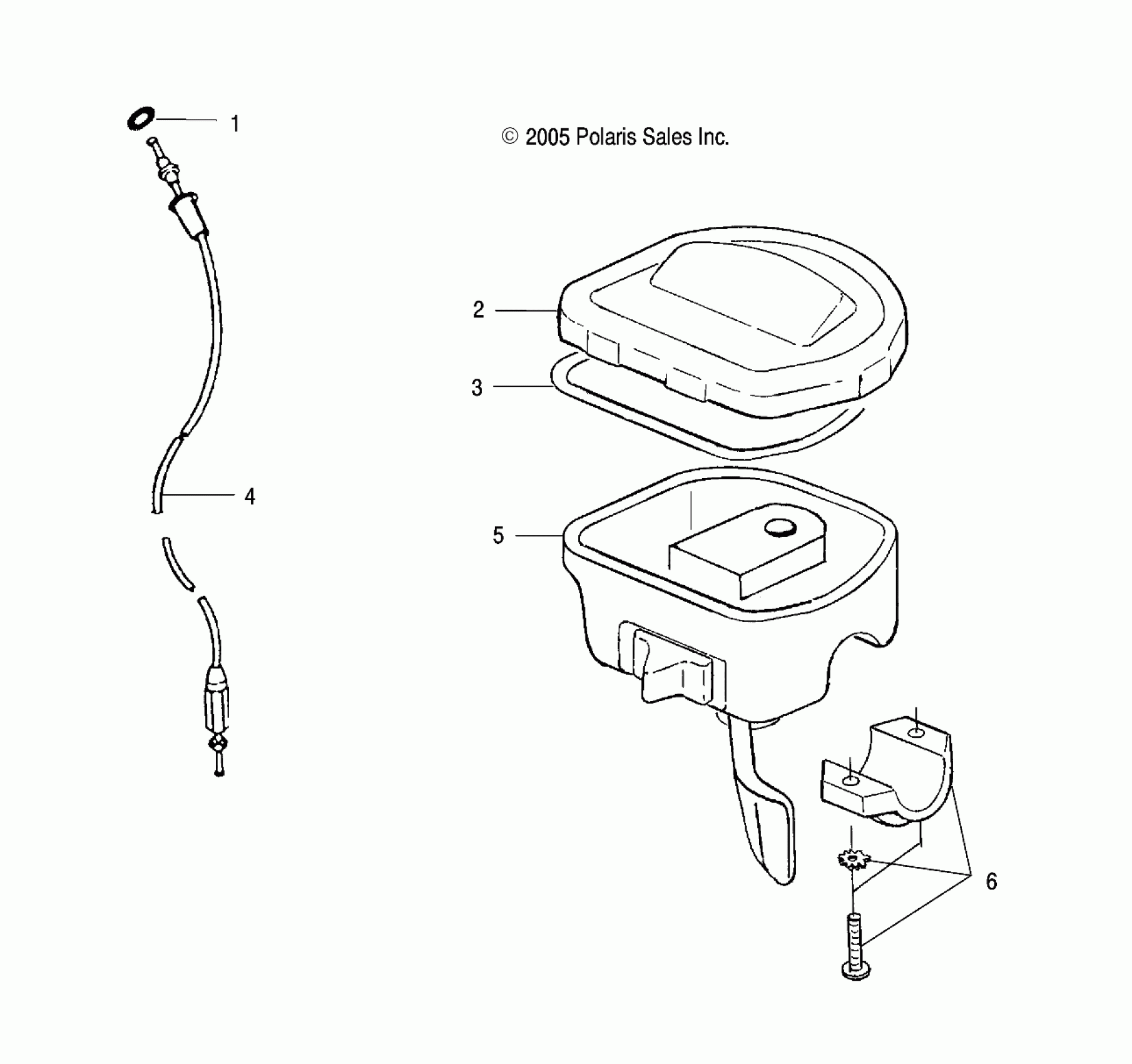

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD CONTROLS-THROTTLE ASM/CABLE - A05MH68AK/AN/AD (4999201649920164B07) Diagram

#

Description

Price

1

O-RING

5410193

$4.99

2

COVER, THROTTLE CONTROL

5434113

$36.41

3

O-RING

5411439

$2.41

4

Cable, Throttle (If built between 10/01/04 and 3/01/05)

7081025

$56.65

4

Cable, Throttle (If built after 3/01/05)

7081219

$56.65

4

Cable, Throttle (If built before 10/01/04)

7081183

$56.65

5

Asm., Throttle Control, AWD [Incl. 6][If built after 10/04/04]

2010250

$190.22

5

Asm., Throttle Control, AWD [Incl. 6][If built before 10/04/04]

2010230

$190.22

6

ASM-THROTTLE CLAMP

2010191

$36.41
