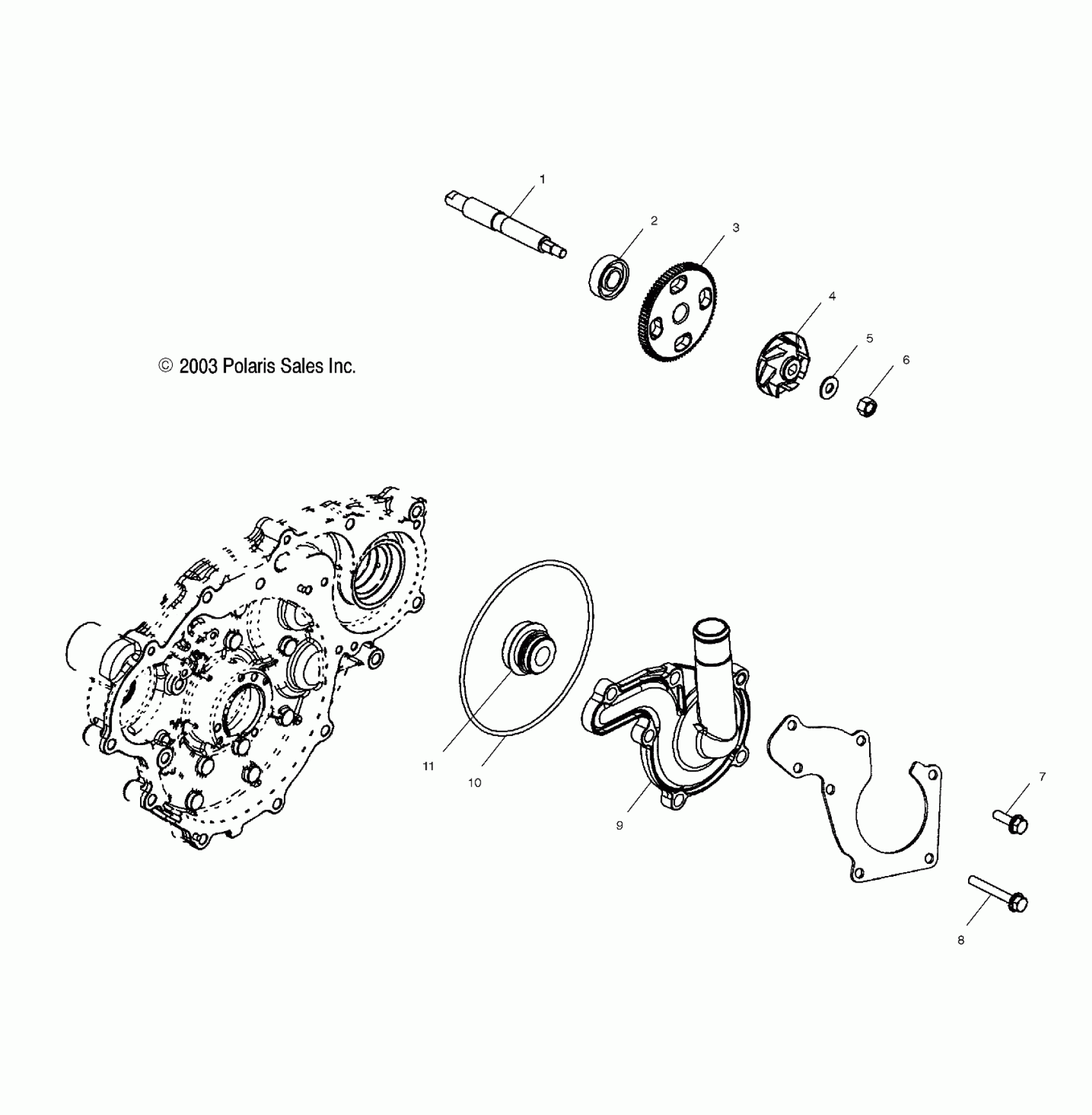

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL WATER PUMP - A03CH68AA/AC/AF/AH/AL (4986128612D11) Diagram

#

Description
Price

1

Shaft, Oil/Water Pump

5131419

Unavailable

2

Bearing

3584404

Unavailable

3

KIT, GEAR SET 680/780 [SEE INTAKE AND EXHAUST PG. D9, REF. 6]

----

Unavailable

4

Impeller

5433684

$31.75

5

Washer, Flat

7555874

$2.38

6

NUT, NYLOK

7546804

$1.19

7

SCREW

7516822

$2.38

8

Screw

7517950

$5.56

9

Cover

1202019

Unavailable

10

O-Ring

5812048

$40.46

11

SEAL, WATER PUMP

3610075

Unavailable
