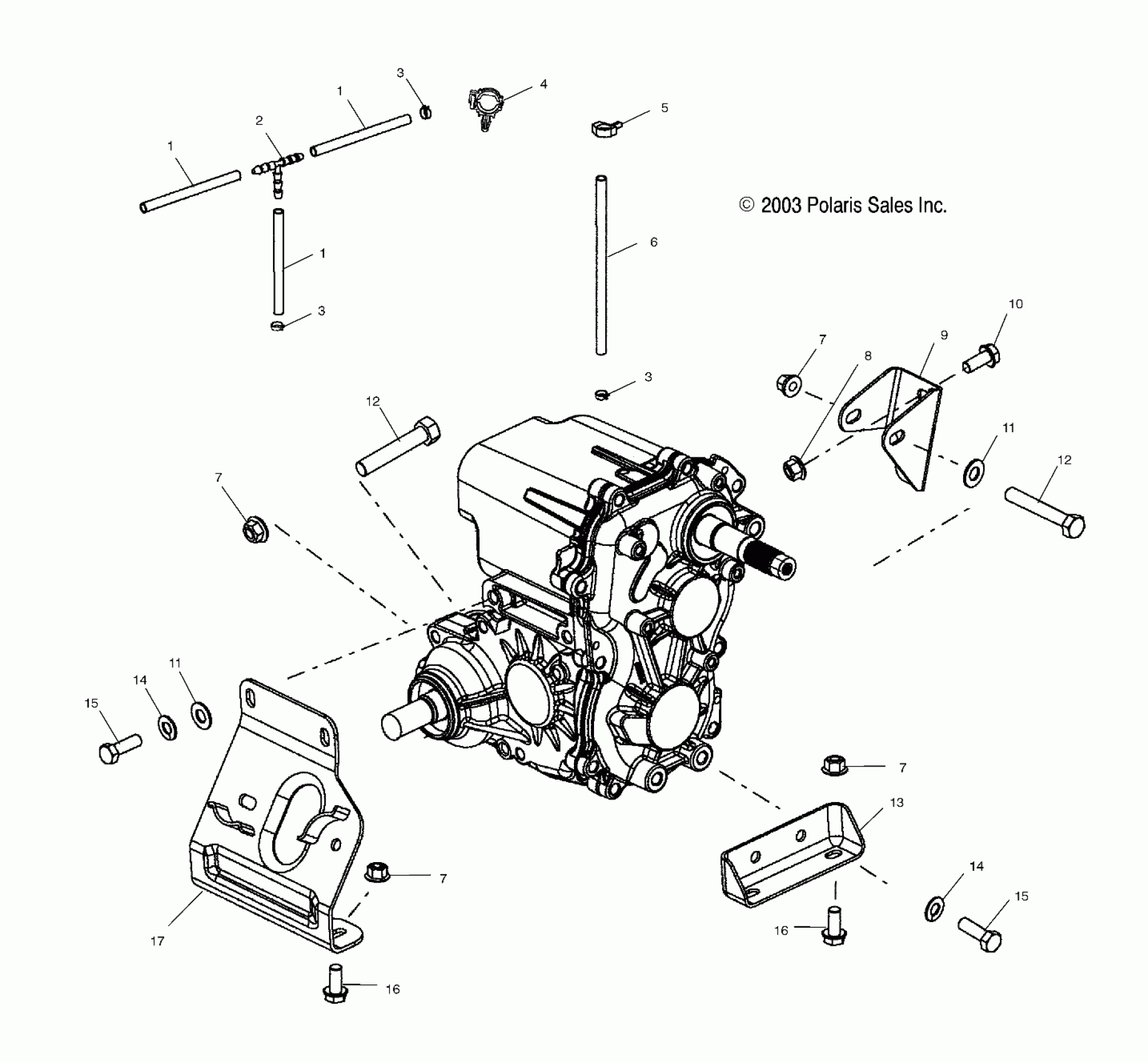

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL TRANSMISSION MOUNTING - A03CH68AA/AC/AF/AH/AL (4975557555C12) Diagram

#

Description
Price

-

ASM., MAIN GEARCASE [SEE GEARCASE PG. C14 FOR DETAILS]

-------

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

T-Fitting

7052075

$9.59

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

4

Clip

7080756

$4.79

5

Clip

7670102

$2.39

6

Line, Fuel

8450003-1525

Unavailable

7

NUT, FLANGE, LOCK

7547108

$4.79

7

NUT, FLANGE, LOCK

7547108

$4.79

7

NUT, FLANGE, LOCK

7547108

$4.79

7

NUT, FLANGE, LOCK

7547108

$4.79

8

Nut, Flange

7542321

$1.49

9

Mount, Rear Transmission

5244599-067

$9.11

10

SCREW

7515398

$2.39

11

Washer, Flat

7555976

$3.99

11

Washer, Flat

7555976

$3.99

12

SCREW

7515417

$4.79

12

SCREW

7515417

$4.79

13

Mount, Transmission

5245524-067

$10.81

14

Washer, Spring Lock

7552603

$1.49

14

Washer, Spring Lock

7552603

$1.49

15

Bolt

7515522

$3.99

15

Bolt

7515522

$3.99

16

Screw

7517289

$4.79

16

Screw

7517289

$4.79

17

Mount, Rear Engine

1013134-067

$114.39
