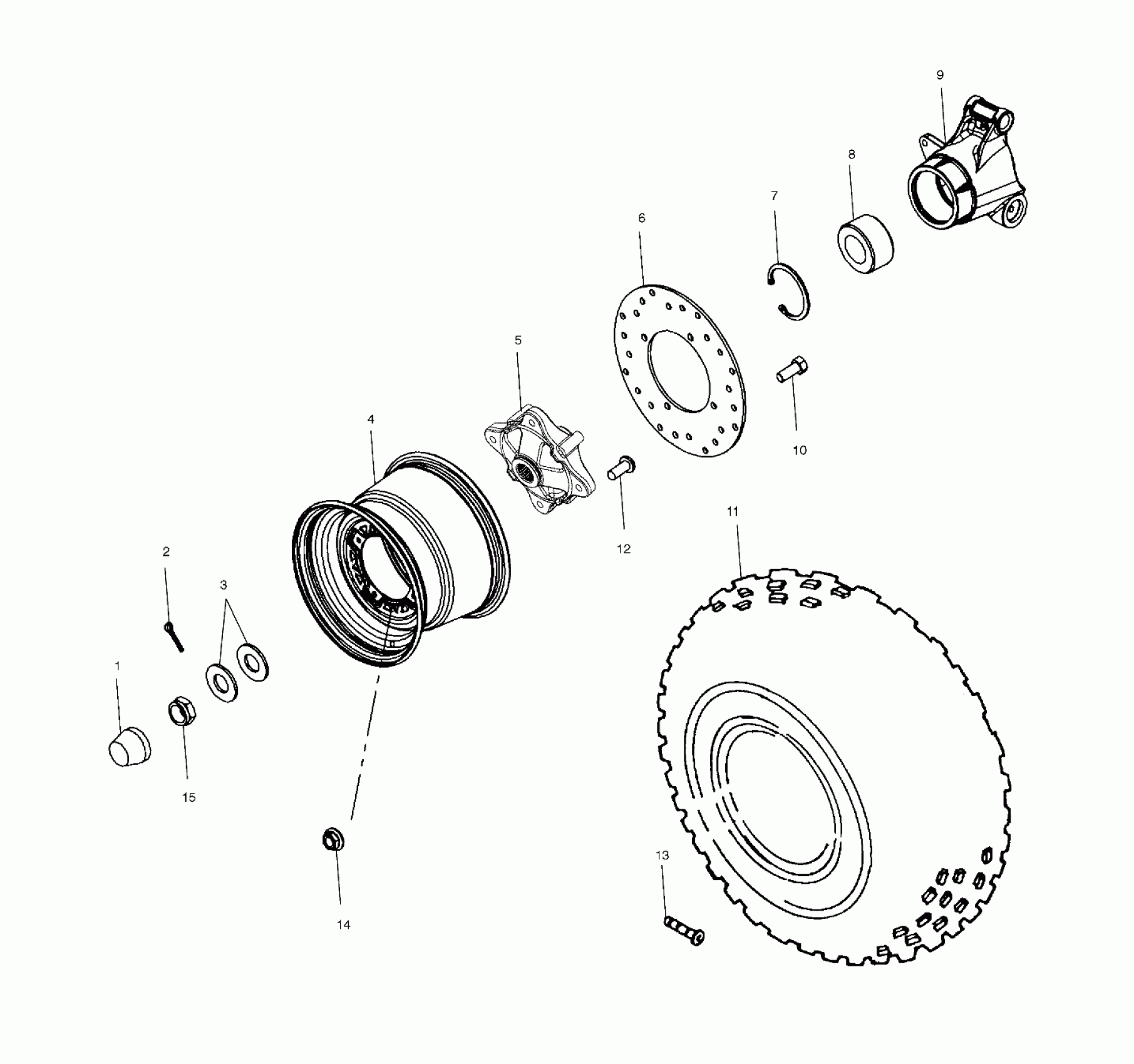

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL REAR WHEEL DRIVE - A03CH68AA/AC/AF/AH/AL (4986108610C04) Diagram

#

Description
Price

1

Cover, Dust, Hub

5411164

$24.27

2

PIN, COTTER

7661404

$4.79

3

WASHER, CONE

7555796

$7.99

4

Rim, Rear, Black [AC][AL]

1520564-067

Unavailable

4

Rim, Rear, Chrome [If built after 6/17/02]

1520588

Unavailable

4

Rim, Rear, Chrome [If built before 6/17/02]

1520520

Unavailable

5

Hub, Rear Wheel

5133361

Unavailable

6

Disc, Brake, Rear

5244635

$75.99

7

RING, RETAINING

7710440

$10.39

8

Bearing

3585502

Unavailable

9

CARRIER, BEARING, WHEEL [SEE REAR SUSPENSION PG., REF. 39]

-------

Unavailable

10

Screw

7512325

$2.39

11

Tire, 25x11-12

5411949

Unavailable

12

Stud

7515513

$1.49

13

VALVE-RIM

1525017

$5.59

14

NUT, FLANGE

7547237

$2.39

15

Nut, Castle

7543005

Unavailable
