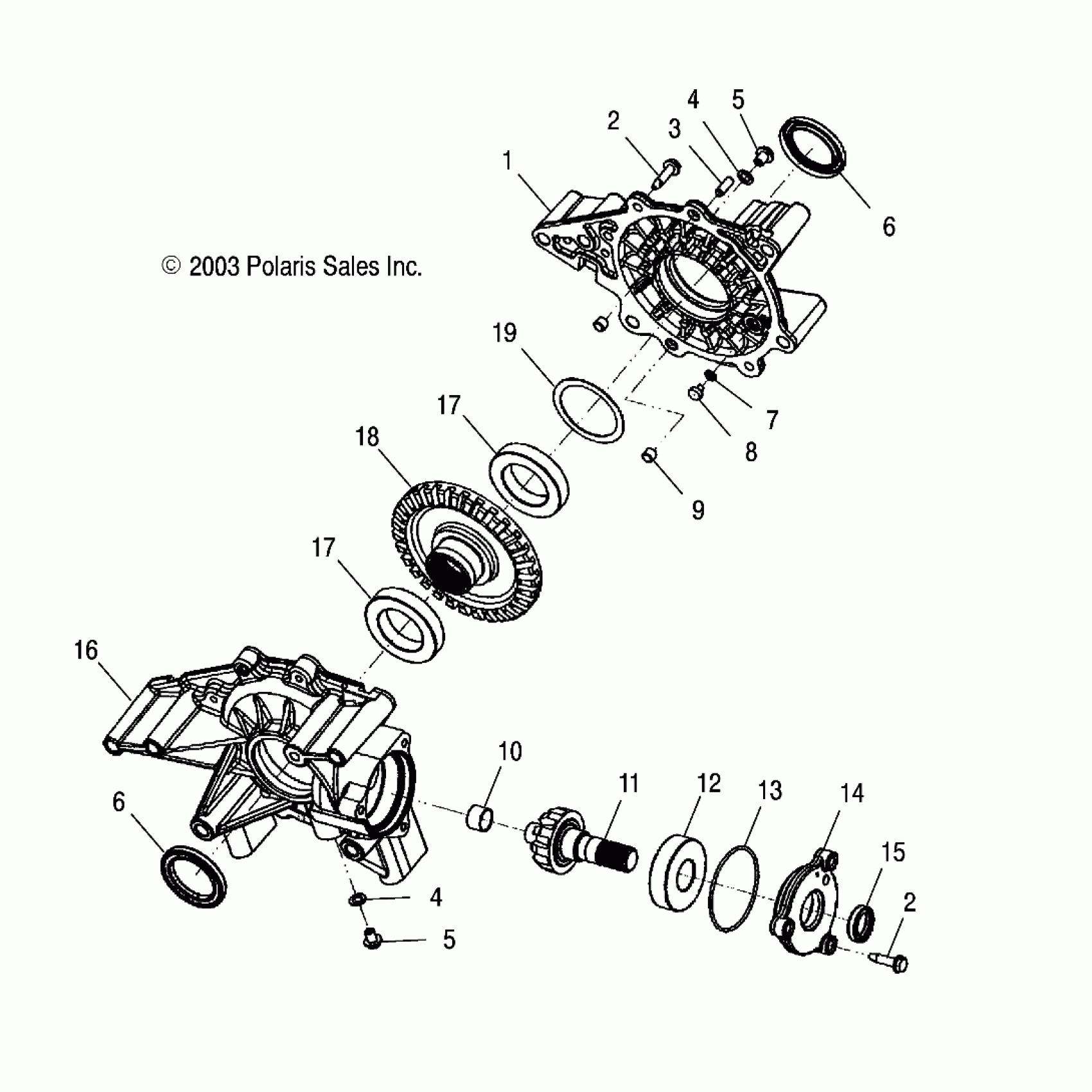

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL REAR GEARCASE - A03CH68AA/AC/AF/AH/AL (4987468746D01) Diagram

#

Description
Price

-

Asm., Gearcase, Rear

1341352

Unavailable

1

Cover, Output, LH

3233876

Unavailable

2

Screw

3233846

Unavailable

2

Screw

3233846

Unavailable

3

TUBE, VENT

3233524

$7.19

4

Washer

3233254

$7.99

4

Washer

3233254

$7.99

5

Plug

3233777

$34.99

5

Plug

3233777

$34.99

6

Seal

3233878

$32.37

6

Seal

3233878

$32.37

7

SHIM

3233583

Unavailable

8

THRUST BUTTON

3233582

$7.91

9

Pipe, Knock

3233529

$7.99

10

Bushing

3233577

$19.99

11

Shaft, Pinion, 10T

3233881

$171.99

12

BEARING, BALL

3233714

$31.99

13

O-Ring

3233588

$10.55

14

Cover, Input

3233882

$45.59

15

Seal

3233785

$19.99

16

Gearcase, Housing, Rear

3233880

Unavailable

17

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

17

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

18

Gear, 31T

3233879

Unavailable

19

SHIM

3233581

Unavailable
