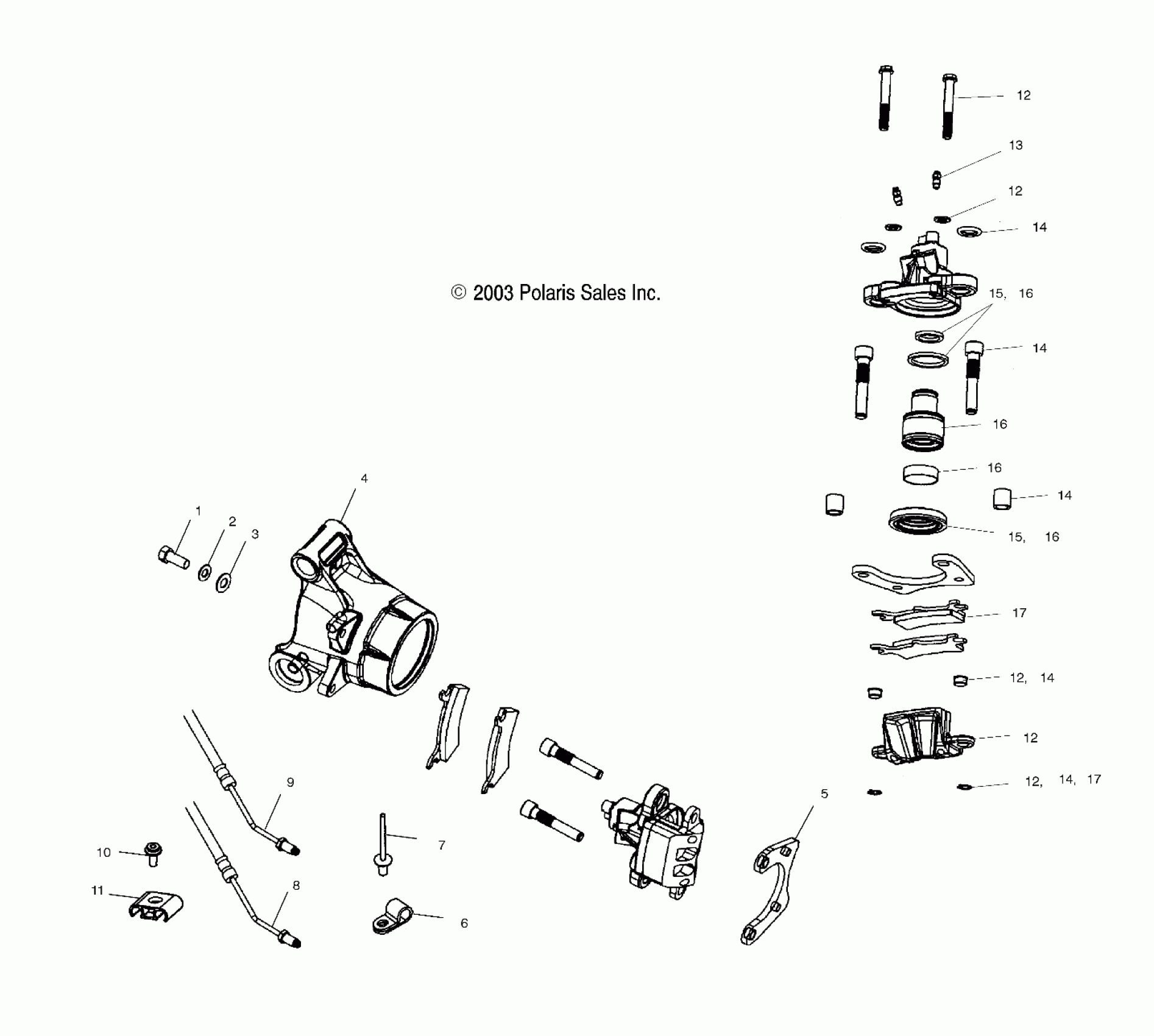

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL REAR CALIPER - A03CH68AA/AC/AF/AH/AL (4987318731C09) Diagram

#

Description
Price

-

Asm., Brake Caliper [If built after 7/12/02]

1910690

$259.99

-

Asm., Brake Caliper [If built before 7/12/02]

1910455

$250.96

1

SCREW

7512365

$1.49

2

WASHER, SPRING LOCK

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

CARRIER, BEARING

-------

Unavailable

5

Bracket, Caliper

1910529

$47.99

6

Clamp, Nylon

7080960

$4.79

7

Rivet

7621462

$1.49

8

LINE, BRAKE, HAND, REAR [See Controls - Master Cylinder/Brake Line Pg., Ref. 9]

-------

Unavailable

9

Line, Rear Brake, Foot

1910429

$84.93

10

Screw

7517756

$1.49

11

Clip, Retaining, Dual

7670126

$4.79

12

Kit, Anvil Body

2201873

$147.99

12

Kit, Anvil Body

2201873

$147.99

12

Kit, Anvil Body

2201873

$147.99

12

Kit, Anvil Body

2201873

$147.99

12

Kit, Anvil Body

2201873

$147.99

13

Fitting,Bleed, Compact

1910538

$10.39

14

Kit, Slide Bolt

2201870

$63.99

14

Kit, Slide Bolt

2201870

$63.99

14

Kit, Slide Bolt

2201870

$63.99

14

Kit, Slide Bolt

2201870

$63.99

14

Kit, Slide Bolt

2201870

$63.99

15

Kit, Seal

2201872

$63.99

15

Kit, Seal

2201872

$63.99

16

Kit, Piston and Seal

2201869

$119.99

16

Kit, Piston and Seal

2201869

$119.99

16

Kit, Piston and Seal

2201869

$119.99

16

Kit, Piston and Seal

2201869

$119.99

17

Kit, Brake Pad [If built after 7/12/02]

2202414

$31.99

17

Kit, Brake Pad [If built before 7/12/02]

2201871

$27.99

17

Kit, Brake Pad [If built after 7/12/02]

2202414

$31.99

17

Kit, Brake Pad [If built before 7/12/02]

2201871

$27.99
