- SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL
GEARCASE - A03CH68AA/AC/AF/AH/AL (4975557555C13)

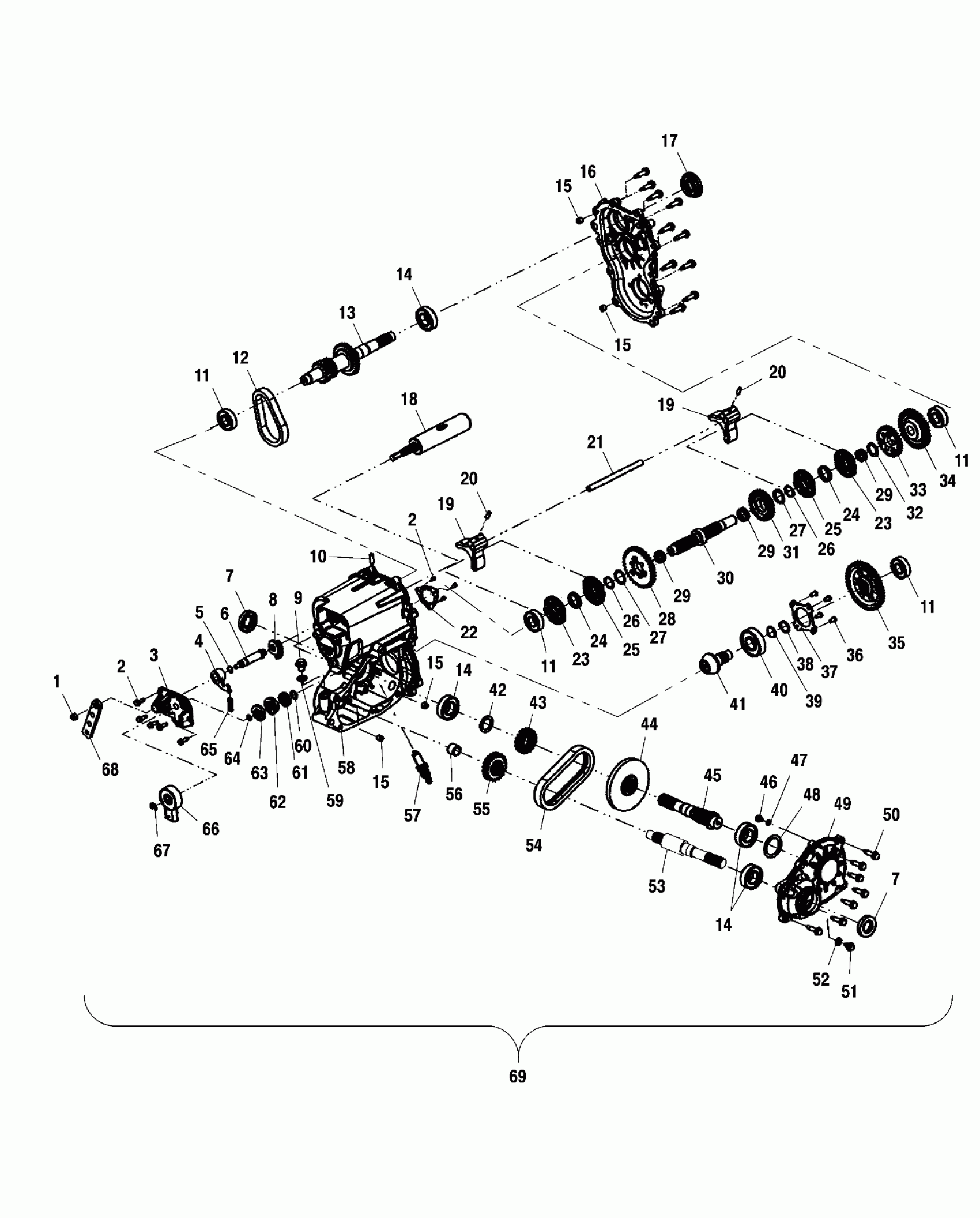

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL GEARCASE - A03CH68AA/AC/AF/AH/AL (4975557555C13) Diagram
#
1
NUT
3233961
$2.79
2
SCREW
3233826
$9.59
2
SCREW
3233826
$9.59
3
Cover
3233827
$107.99
4
Pawl, Detent
3233829
$31.99
5
O-RING
3233869
$5.59
6
SHAFT, SHIFT
3233831
$59.99
7
Seal
3233788
$31.99
7
Seal
3233788
$31.99
8
GEAR-SECTOR,31T
3233832
$31.99
9
Plug, Oil Fill
3233711
Unavailable
10
TUBE, VENT
3233524
$7.19
11
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
11
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
11
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
11
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
12
Chain, Silent
3233036
Unavailable
13
Shaft, Input
3233890
Unavailable
14
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
14
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
14
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
15
Pipe, Knock
3233529
$7.99
15
Pipe, Knock
3233529
$7.99
15
Pipe, Knock
3233529
$7.99
15
Pipe, Knock
3233529
$7.99
16
Cover, LH
3233865
Unavailable
17
Seal
3233874
$31.99
18
Drum, Shift
3233910
Unavailable
19
Fork, Shift w/Pin [Incl. 20]
3234141
Unavailable
19
Fork, Shift w/Pin [Incl. 20]
3234141
Unavailable
20
Pin, Dowel
-------
Unavailable
20
Pin, Dowel
-------
Unavailable
21
RAIL, SHIFT SHAFT
3233860
$52.79
22
PLATE, PARK
3233915
$39.99
23
Engagement Dog
3233916
Unavailable
23
Engagement Dog
3233916
Unavailable
24
SPRING, WAVE
3234144
$26.39
24
SPRING, WAVE
3234144
$26.39
25
ENGAGEMENT DOG
3233875
$155.99
25
ENGAGEMENT DOG
3233875
$155.99
26
RING, RETAINING
3233850
$10.39
26
RING, RETAINING
3233850
$10.39
27
WASHER
3233851
$10.39
27
WASHER
3233851
$10.39
28
GEAR, 33T
3233852
$231.99
29
BEARING, NEEDLE
3233718
$35.99
29
BEARING, NEEDLE
3233718
$35.99
29
BEARING, NEEDLE
3233718
$35.99
30
Shaft, Reverse
3233853
$267.13
31
Sprocket, 24T
3233854
$149.59
32
WASHER
3233855
$10.39
33
Gear, 28T
3233912
Unavailable
34
Gear, 40T
3233913
Unavailable
35
Gear, 44T
3233612
Unavailable
36
Screw
3233608
$5.99
37
Cover, Bearing
3233609
$19.99
38
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
39
SPACER
3233357
$21.99
40
Bearing, Ball
3233607
$36.41
41
Subasm., Ground Spiral Bevel [Incl. 44]
3234912
$595.54
42
WASHER,THRUST
3233619
$21.99
43
Sprocket, 22T/18T
3233872
$9.59
44
Subasm., Ground Spiral Bevel [Incl. 41]
3234912
$595.54
45
SHAFT-OUTPUT,MAIN,REAR
3233911
$189.19
46
THRUST BUTTON
3233582
$7.91
47
SHIM
3233583
Unavailable
48
SHIM
3233611
Unavailable
49
Cover, Output, Front
3233781
$275.22
50
SCREW
3234114
$7.19
51
Plug
3233777
$34.99
52
Washer
3233254
$7.99
53
SHAFT,FRONT OUTPUT
3233625
$139.99
54
CHAIN, SILENT
3233784
$87.99
55
SPROCKET-22T
3233844
$127.59
56
BUSHING-GARLOCK
3233552
$23.99
57
Lockout, Park
3233917
Unavailable
58
Gearcase, Main
3233867
$569.99
59
Washer
3233324
$8.99
60
O-Ring
3233548
$27.99
61
GEAR, 16T
3233839
$31.99
62
DISC, LOCKOUT
3233838
$26.39
63
Star, Detent
3234082
$35.19
64
O-RING
3233076
$6.39
65
SPRING, COMPRESSION
3233830
$10.39
66
SWITCH
3233835
Unavailable
67
RING, RETAINING
3233834
$10.39
68
Bellcrank
3233906
Unavailable
69
Asm., Main Gearcase
1341343
Unavailable
