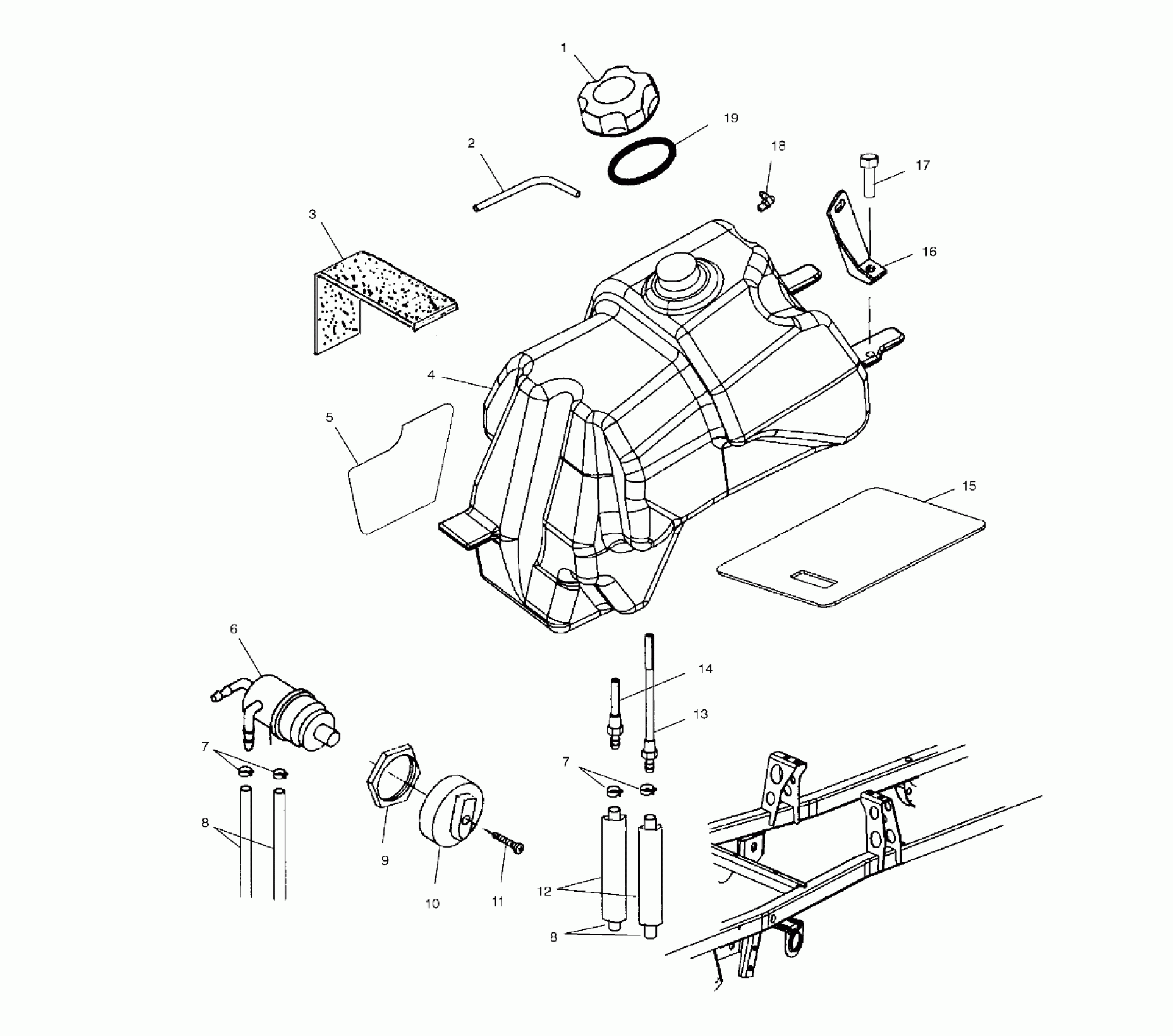

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL FUEL TANK - A03CH68AA/AC/AF/AH/AL (4977187718A12) Diagram

#

Description
Price

1

Cap, Gas Tank [Incl. 19]

5433687

$20.22

2

LINE, FUEL

8360009-600

Unavailable

3

SEAL, FOAM

5812265

$27.99

4

Asm., Fuel Tank [Incl. 13,14,18]

2520203

Unavailable

5

Foil, Fuel Tank

5182004

Unavailable

6

Valve, 3-Way

7052161

$39.99

7

HOSE CLAMP, RED

7080003

$1.49

7

HOSE CLAMP, RED

7080003

$1.49

8

Hose, Fuel

8450103-600

Unavailable

8

Hose, Fuel

8450103-600

Unavailable

9

Nut, Fuel Valve

5432733

Unavailable

10

Knob, Fuel Valve

5432559

$10.39

11

Screw

7517505

$1.59

12

Sheath, Foil

8450080-65

$64.75

13

Fitting, Fuel Outlet, Main

7052150

$27.99

14

Fitting, Fuel Outlet, Reserve

7052149

$23.99

15

Foil, Fuel Tank

5812005

$19.30

16

Bracket, Mounting, Rear, LH

5246069-067

Unavailable

16

Bracket, Mounting, Rear, RH

5246070-067

Unavailable

17

SCREW

7517685

$1.59

18

Vent, Tank

5431053

$19.99

19

GASKET

5812123

$5.65
