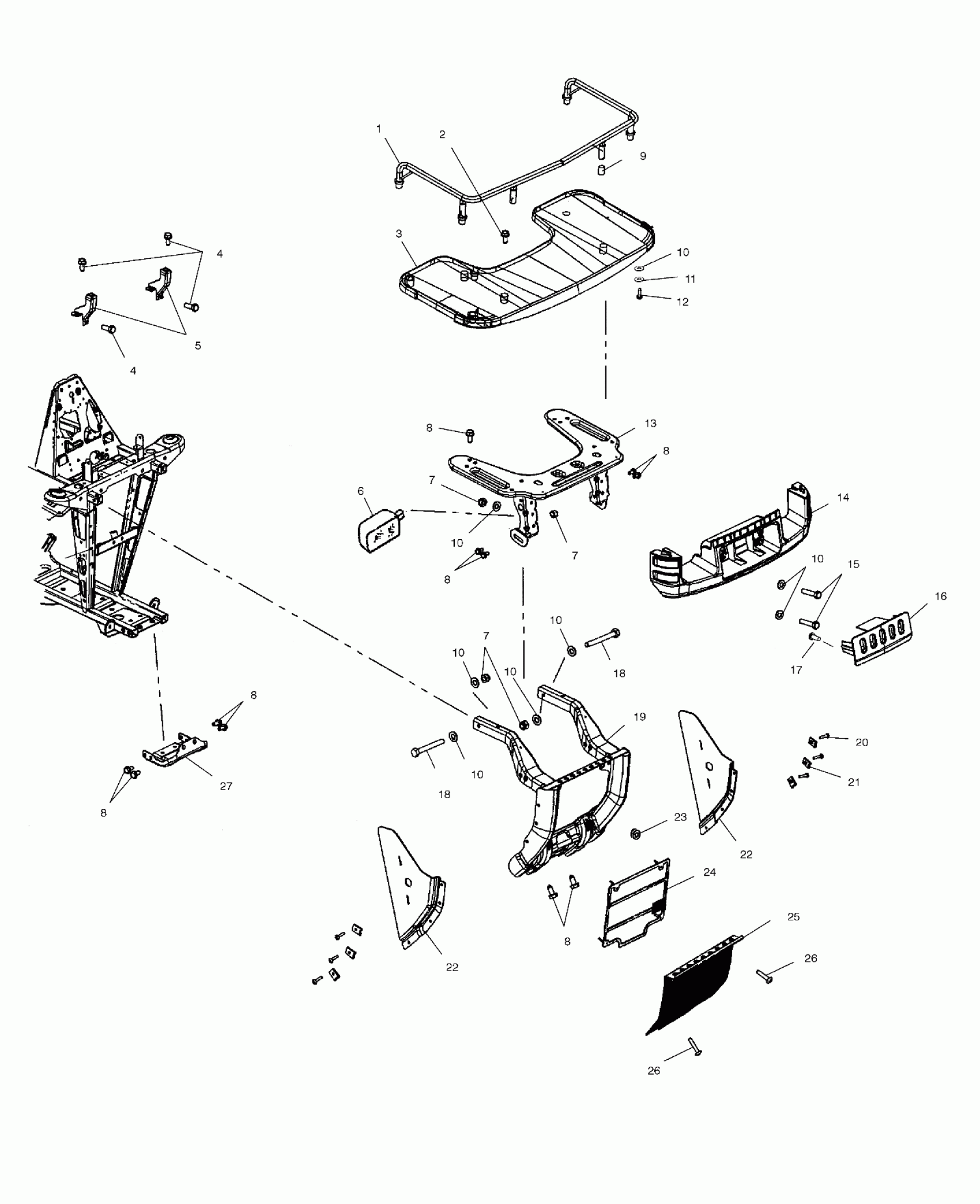

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL FRONT RACK AND BUMPER MOUNTING - A03CH68AA/AC/AF/AH/AL (4975557555A07) Diagram

#

Description
Price

1

Extender, Front Rack

1040526-385

Unavailable

1

Extender, Front Rack [AC](AL)

1040526-067

Unavailable

2

SCREW

7517685

$1.59

3

Asm., Front Rack [Incl. Warning Decal]

2632666-070

Unavailable

4

SCREW

7512232

$1.19

4

SCREW

7512232

$1.19

5

Support, Front Rack, LH

1013744-067

Unavailable

5

Support, Front Rack, RH

1013746-067

$94.99

6

Bulb, Replacement, 27W

4030059

Unavailable

6

Headlight, LH

2431014

Unavailable

6

Headlight, RH

2431015

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

8

SCREW

7515399

$1.19

8

SCREW

7515399

$1.19

8

SCREW

7515399

$1.19

8

SCREW

7515399

$1.19

8

SCREW

7515399

$1.19

8

SCREW

7515399

$1.19

9

Insert

5432387

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

11

Washer, Flat

7556175

$5.99

12

Screw

7512392

$4.76

13

Support, Front Rack

1014020-067

$199.98

14

Bumper

5434001-070

Unavailable

15

Screw

7515306

Unavailable

16

Panel

5434002-070

Unavailable

17

Screw

7512093

$1.19

18

Screw

7512329

$3.97

18

Screw

7512329

$3.97

19

Guard, Brush

1013667-067

Unavailable

20

Screw

7512097

$3.97

21

Nut, U-Type

7670094

$5.56

22

Shield, Side, Radiator, LH

5434314

$42.74

22

Shield, Side, Radiator, RH

5434315

Unavailable

22

Shield, Side, Radiator, LH

5434314

$42.74

22

Shield, Side, Radiator, RH

5434315

Unavailable

23

Grommet

5410774

$3.97

24

Cover, Radiator (If built after 11/01/02)

5435046

$52.60

24

Cover, Radiator (If built before 11/01/02)

5434313

$52.60

25

Grill (If built before 11/01/02)

5244808-067

$64.99

25

Grill (If built after 11/01/02)

5247137-067

$64.99

26

Screw

7518046

Unavailable

26

Screw

7518046

Unavailable

27

Bracket, Bumper, Lower

5245767-067

Unavailable
