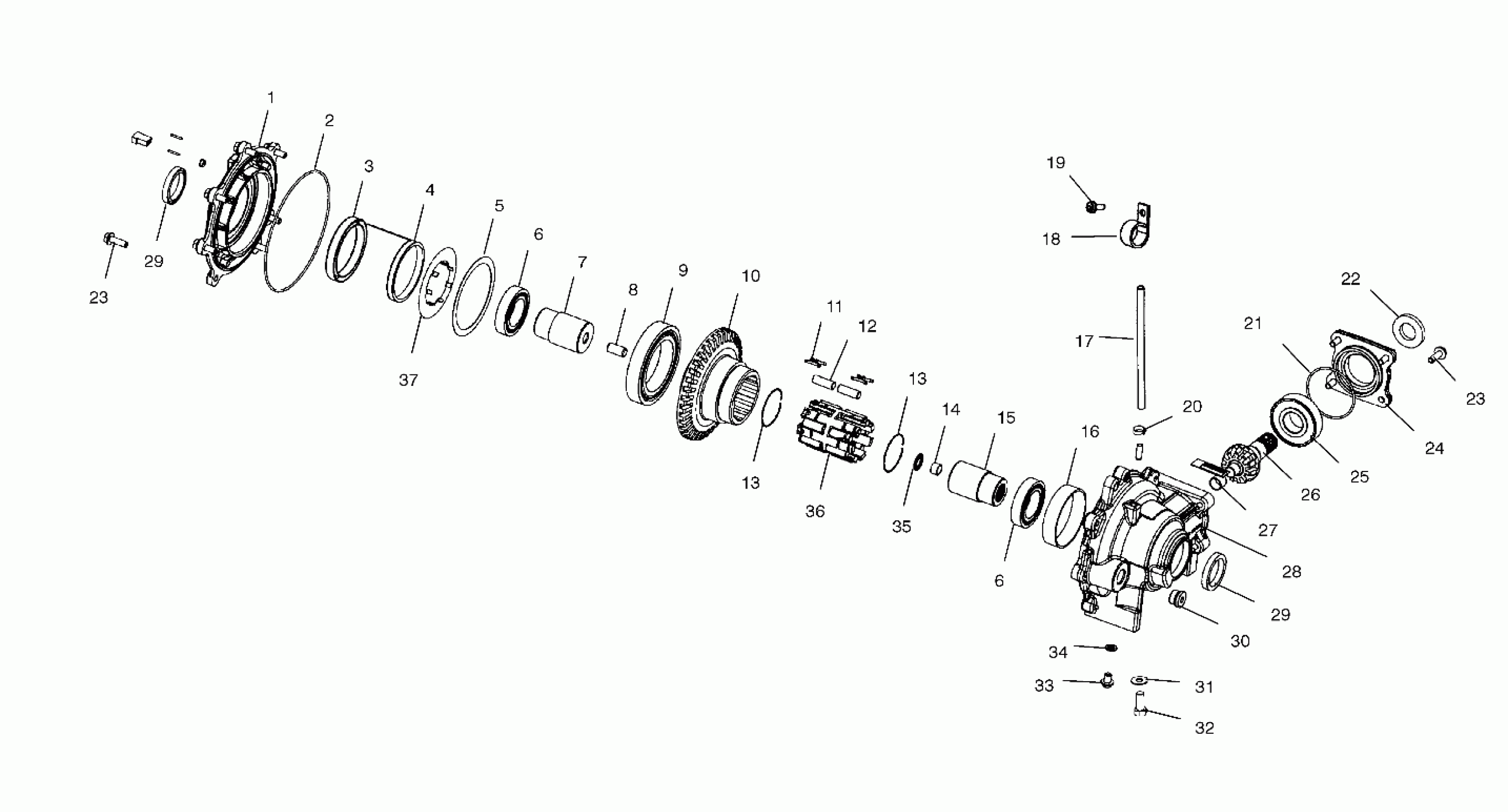

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL FRONT HOUSING - A03CH68AA/AC/AF/AH/AL (4975557555C11) Diagram

#

Description
Price

-

Asm., Race/Output Hub [Incl. 7,14,15,35]

3233953

$404.75

-

Kit, Seal Kit [Incl. 2,21,22,29]

3233956

$76.89

-

Asm., Front Gearcase [Incl. 1-16,21-30,33-37]

1341344

$2,099.99

-

Asm., Cover Plate [Incl. 1,3,4,29]

3234093

$2,099.99

-

Asm., Drain Plug [Incl. 33,34]

3233951

Unavailable

-

Asm., Clutch [Incl. 9-13,36]

3233954

$532.99

-

Asm., Roll Cage [Incl. 11,36]

3233949

$279.27

-

Gearcase [Incl. 16,27,28]

3233950

$2,099.99

1

Cover, Output

----

Unavailable

2

O-RING

----

Unavailable

3

INSERT

----

Unavailable

4

COIL

----

Unavailable

5

Kit, Shim Set [Incl. Shims]

3233925

Unavailable

6

Bearing, Roller Ball

3233926

$59.52

6

Bearing, Roller Ball

3233926

$59.52

7

HUB, RACE/OUTPUT, MALE

----

Unavailable

8

Pin, Dowel

3233928

$23.81

9

Bearing, Roller Ball

3233932

Unavailable

10

Clutch Housing/Ring Gear

3233933

$646.83

11

Spring

----

Unavailable

12

Kit, Roll

3233957

Unavailable

13

Ring, Retaining

3233934

Unavailable

13

Ring, Retaining

3233934

Unavailable

14

BUSHING

----

Unavailable

15

HUB, RACE/OUTPUT, FEMALE

----

Unavailable

16

BUSHING

----

Unavailable

17

Line, Fuel

8450003-1525

Unavailable

18

CLAMP, HOSE

7080693

$5.56

19

SCREW

7512024

$4.76

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

21

O-RING

----

Unavailable

22

SEAL

----

Unavailable

23

Kit, Bolt

3233955

$31.75

23

Kit, Bolt

3233955

$31.75

24

Cover, Input

3233947

$72.84

25

Bearing, Roller Ball

3233945

Unavailable

26

Shaft, Pinion, 11T

3233944

$839.99

27

BUSHING

----

Unavailable

28

GEARCASE, LH

----

Unavailable

29

SEAL, OIL

----

Unavailable

29

SEAL, OIL

----

Unavailable

30

Plug, Oil Fill

3233942

$32.37

31

Washer, Spring Lock

7552603

$0.79

32

Screw

7512492

$1.19

33

PLUG, OIL DRAIN

----

Unavailable

34

WASHER

----

Unavailable

35

Bearing, Needle, Roller Thrust

3233929

$404.75

36

ROLL CAGE, ALUMINUM

----

Unavailable

37

Plate Armature

3233924

$109.27
