- SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL
FRONT CAB - A03CH68AA/AC/AF/AH/AL (4975557555A05)

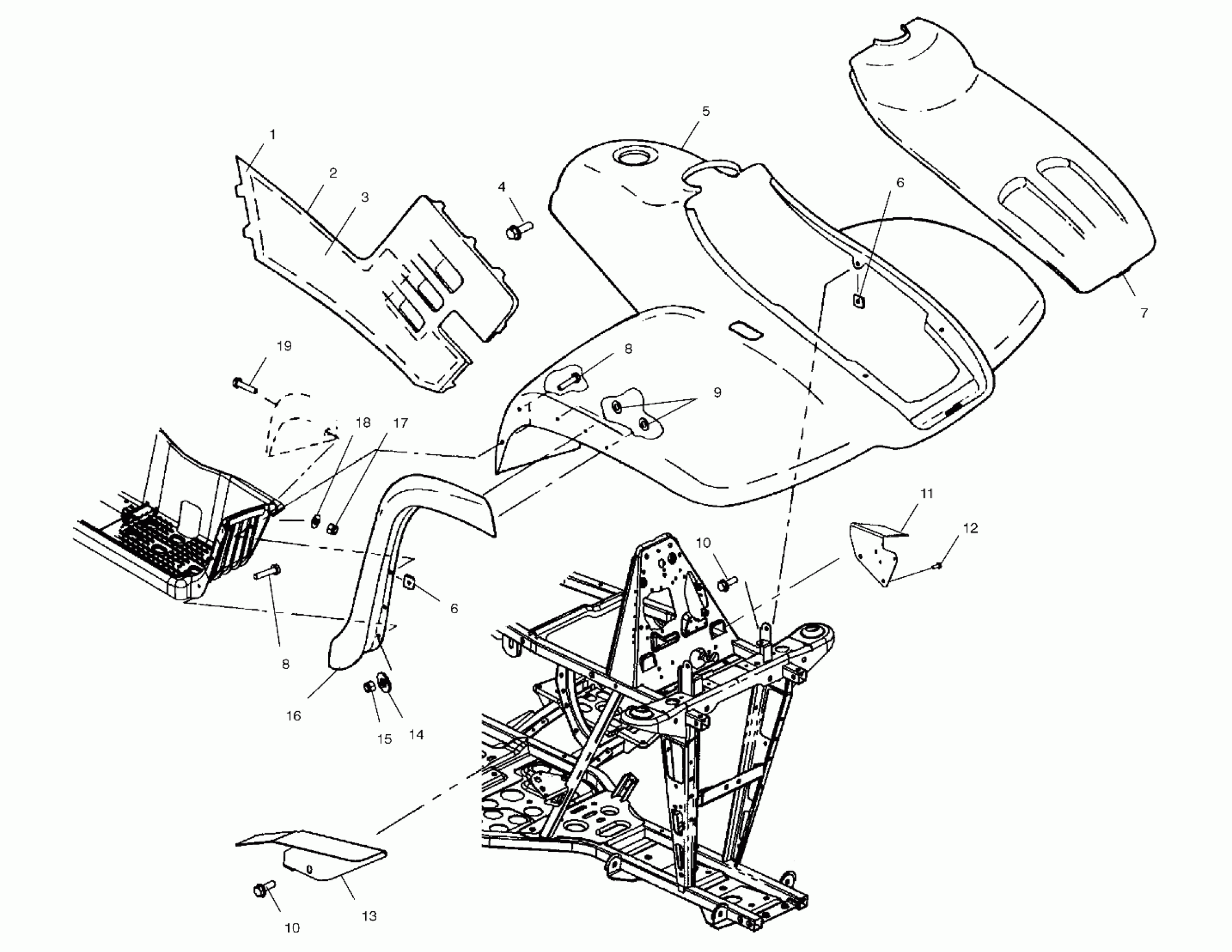

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL FRONT CAB - A03CH68AA/AC/AF/AH/AL (4975557555A05) Diagram
#
1
Foil, Side Panel, Gen. IV, RH
5811491
Unavailable
2
Panel/Foil, Camo Green Met, RH [AA]
2632471-400
Unavailable
2
Panel/Foil, Sonic Blue, RH [AH]
2632471-341
Unavailable
2
Panel, Side,Camo Green Met, LH [AA]
5433853-400
Unavailable
2
Panel, Side, New Break-Up, LH [AC]
5434917-419A
$186.65
2
Panel, Side, Silver Vapor Met, LH [AF]
5433853-382
Unavailable
2
Panel/Foil, Silver Vapor Met, RH [AF]
2632471-382
$111.99
2
Panel, Side, Sonic Blue, LH [AH]
5433853-341
$103.19
2
Panel/Foil, New Break-Up, RH [AC]
2632696-419
Unavailable
2
Panel, Side, NBU No Shadow, LH (AL)
5435140-460A
$186.65
2
Panel/Foil, NBU No Shadow, RH (AL)
2632814-460
Unavailable
3
Foil, Side Panel, RH
5812326
Unavailable
4
SCREW
7512232
$1.49
5
Cab, Front, Camo Green Met [AA]
2632748-400
Unavailable
5
Cab, Front, Sterling Spruce [AH]
2632748-341
Unavailable
5
Cab, Front, Black Met [AF]
2632748-177
$160.71
5
Cab, Front, New Break-Up [AC]
2632750-419
Unavailable
5
Cab, Front, NBU No Shadow (AL)
2632813-460
$539.99
6
NUT, U-TYPE SPEED
7670057
$1.49
6
NUT, U-TYPE SPEED
7670057
$1.49
7
Cover, Front, Camo Green Met [AA]
5432088-400
Unavailable
7
Cover, Front, Black Met [AF]
5432088-177
Unavailable
7
Cover, Front, Sonic Blue [AH]
5432088-341
Unavailable
7
Cover, Front, New Break-Up [AC]
5434857-419A
Unavailable
7
Cover, Front, NBU No Shadow (AL)
5435139-460A
$173.59
8
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
$1.49
8
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
$1.49
9
Nut, Push-on
7670135
$4.79
10
SCREW
7517386
$1.49
10
SCREW
7517386
$1.49
11
Guard, Splash, LH/Pump Mount
5246872
$44.99
12
SCREW
7517867
$1.59
13
Guard, Splash, RH
5246021-067
$28.15
14
Washer, Flat
7555931
Unavailable
15
Nut, Nylok
7542122
$1.49
16
Guard, Mud, Front, Black, LH
5431798-070
$79.99
16
Guard, Mud, Front, Black, RH
5431799-070
$84.99
17
Nut, Nylok
7541925
$1.49
18
WASHER
7555792
$4.79
19
Screw
7512085
Unavailable
