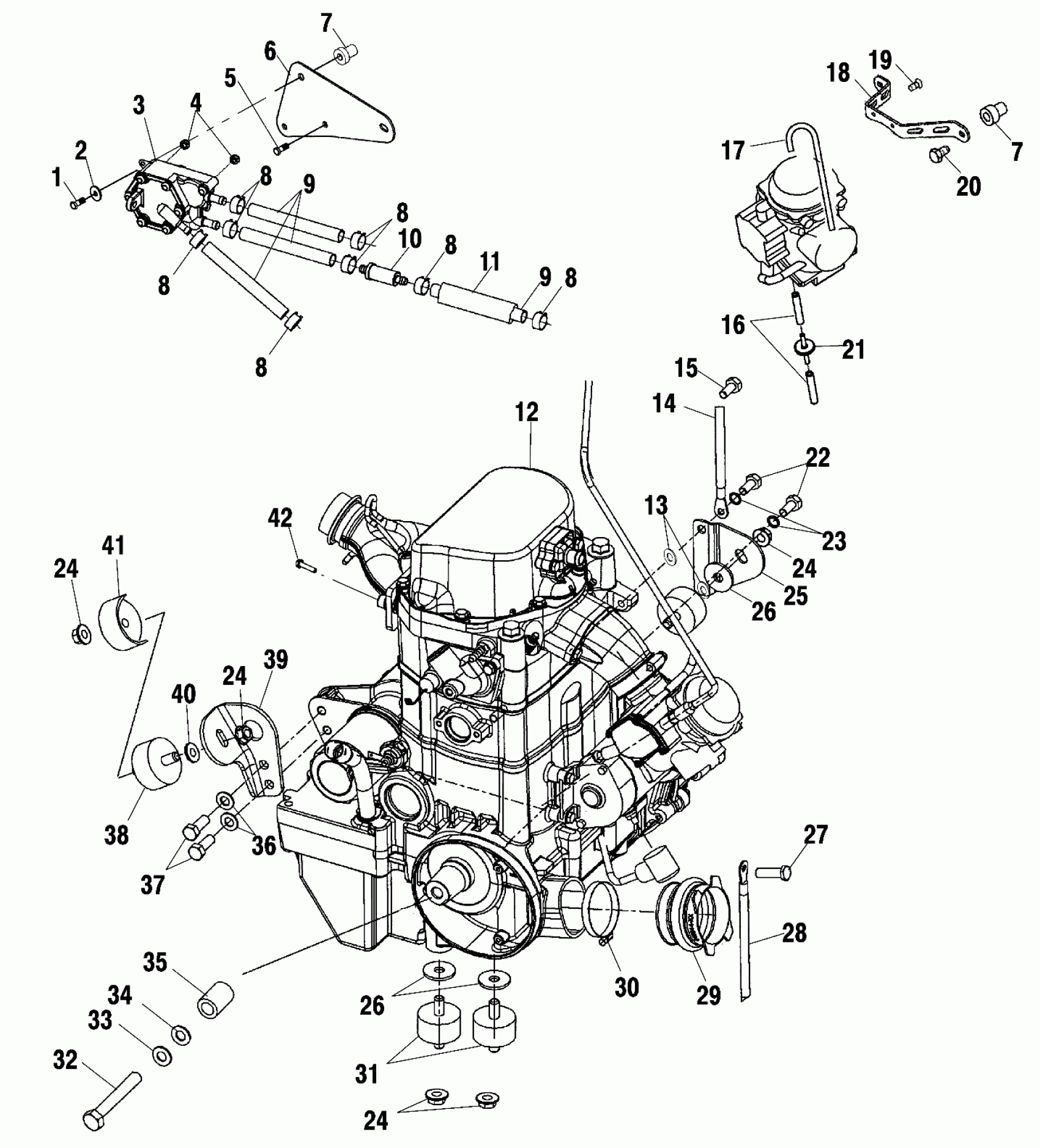

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL ENGINE MOUNTING - A03CH68AA/AC/AF/AH/AL (4975557555A13) Diagram

#

Description
Price

1

SCREW

7517867

$1.59

2

Washer, Flat

7558301

$1.19

3

Pump, Fuel

2520227

$79.37

4

NUT-M5X.8,HX NYL-Y

7546601

$1.19

5

Bolt

7512329

$3.97

6

Strap, Fuel Pump Mounting

5243829

Unavailable

7

Nut, Well

7541923

$5.56

7

Nut, Well

7541923

$5.56

8

HOSE CLAMP, RED

7080003

$1.19

8

HOSE CLAMP, RED

7080003

$1.19

8

HOSE CLAMP, RED

7080003

$1.19

8

HOSE CLAMP, RED

7080003

$1.19

8

HOSE CLAMP, RED

7080003

$1.19

8

HOSE CLAMP, RED

7080003

$1.19

9

Line, Fuel

8450040-600

Unavailable

9

Line, Fuel

8450040-600

Unavailable

10

FILTER

2530009

$6.46

11

Sheath, Foil

8450080-50

$64.75

12

Kit, Short Block, ATV NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty

2202082

Unavailable

13

WASHER

7555770

$0.99

14

Cable, Ground, Engine

4010132

Unavailable

15

SCREW

7517386

$1.19

16

LINE, FUEL

8360009-600

Unavailable

17

Hose, Formed, Vent

5412287

$10.63

18

Strap, Carburetor Mounting

5246647

Unavailable

19

SCREW

7517867

$1.59

20

Bolt

7512247

Unavailable

21

VALVE, CHECK

7051011

Unavailable

22

Screw

7516714

$3.97

23

WASHER, SPRING LOCK

7552901

$1.19

24

NUT, FLANGE LOCK

7547108

$4.76

24

NUT, FLANGE LOCK

7547108

$4.76

24

NUT, FLANGE LOCK

7547108

$4.76

24

NUT, FLANGE LOCK

7547108

$4.76

25

Bracket, Mount, Top

5244622-067

Unavailable

26

WASHER, FLAT

7555823

$3.97

26

WASHER, FLAT

7555823

$3.97

27

Screw

7517868

$7.94

28

Cable, Black

4010470

Unavailable

29

Boot, Intake

5411944

$11.32

30

CLAMP, HOSE

7080451

$7.14

31

Mount, Rubber

3021119

Unavailable

32

Screw

7518197

$34.99

33

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

34

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

35

BUSHING-.437 X.770 X.50

5430261

$7.14

36

Washer, Spring Lock

7552603

$0.79

37

Screw

7512492

$1.19

38

Mount, Rubber, Top

3110044

$44.51

39

Mount, Lower, Front

5244771-067

$144.99

40

WASHER, FLAT

7555823

Unavailable

41

Bracket, Torque Stop

5245043-067

$17.99

42

SCREW

7516734

$3.17
