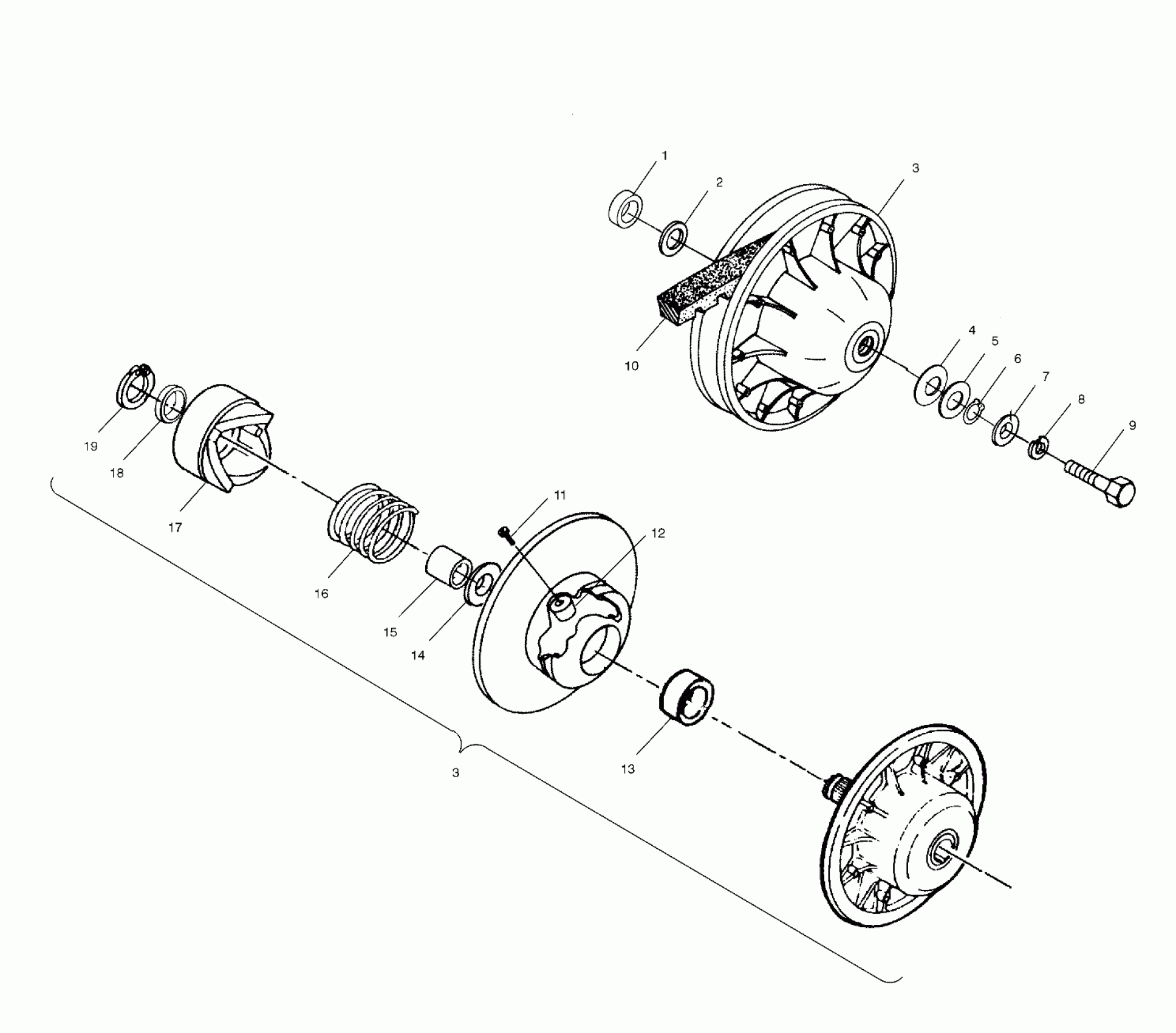

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL DRIVEN CLUTCH - A03CH68AA/AC/AF/AH/AL (4977187718C02) Diagram

#

Description
Price

1

Spacer, Driven

5010409

Unavailable

2

BUSHING

7556120

$1.49

3

Asm., Driven Clutch, EBS [Incl. 11-15,18,19]

1321973

Unavailable

3

Asm., Driven Clutch, EBS [Incl. 11-15,18,19]

1321973

Unavailable

4

Washer

7556203

Unavailable

5

Bushing

7556010

Unavailable

6

Ring, Retaining

7710461

Unavailable

7

Washer, Domed

5220646

$2.39

8

WASHER, SPRING LOCK

7552901

$1.49

9

BOLT

7515382

$2.39

10

Belt, Drive

3211091

$79.99

11

Screw

7517323

$13.59

12

Roller, Taper

1321977

$31.99

13

Bearing

3585710

$19.99

14

WASHER-2.06X2.62X.105-Y

5211115

$3.99

15

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

16

Spring

7041636

Unavailable

17

Ramp, Stationary

5132751

Unavailable

18

Spacer

5210753

$2.39

19

Ring, Retaining

7710448

$3.19
