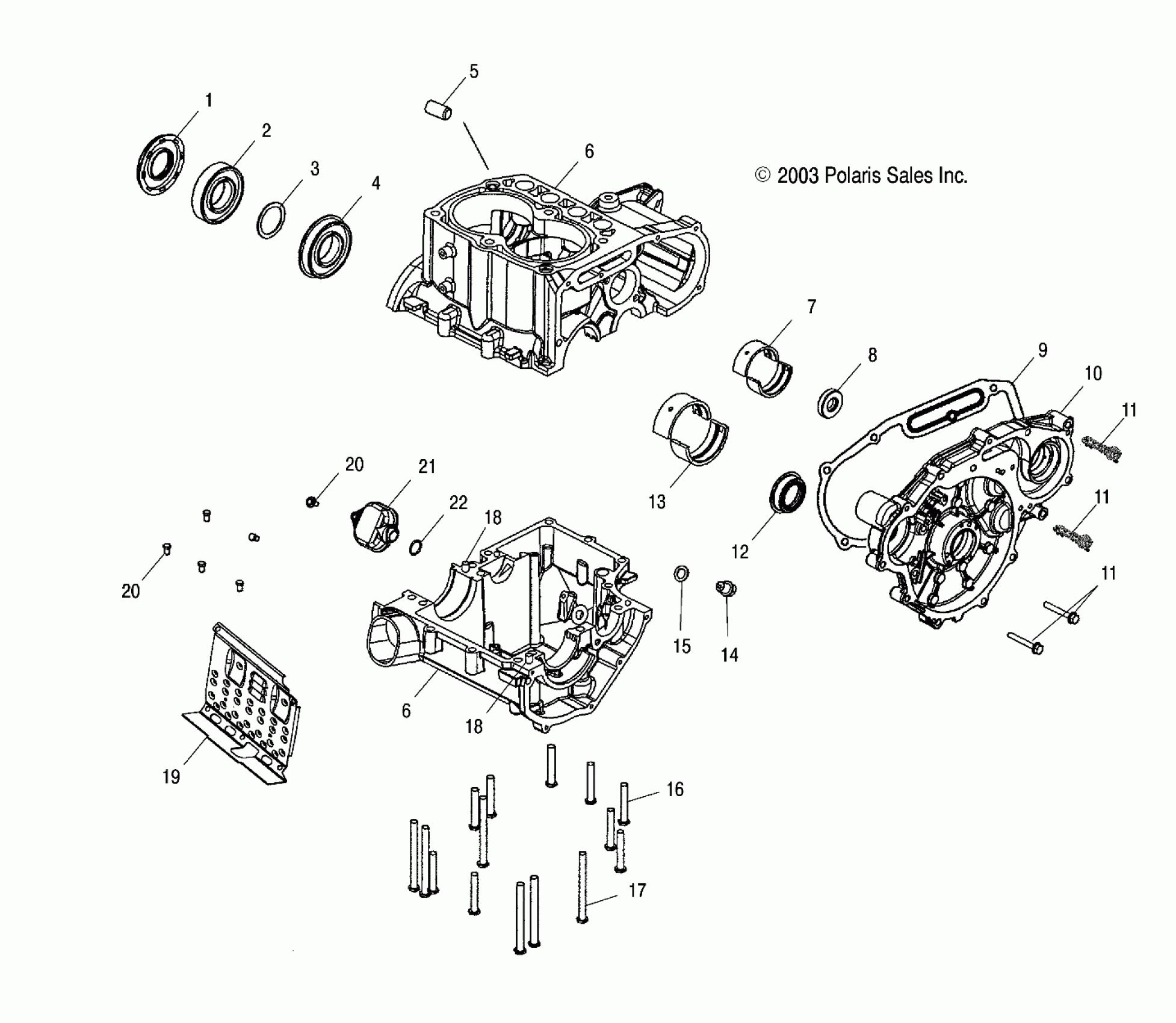

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL CRANKCASE - A03CH68AA/AC/AF/AH/AL (4975557555D03) Diagram

#

Description
Price

1

Seal, Flanged

5412114

$39.99

2

BEARING, BALL

3514361

Unavailable

3

BUSHING

7556194

$3.99

4

BEARING, BALL

3514318

$43.99

5

Plug

7518007

$5.65

6

RING, RETAINING

7710512

$3.99

6

Asm., Crankcase [Incl.14-22]

1201655

$1,058.49

6

RING, RETAINING

7710512

$3.99

6

Asm., Crankcase [Incl.14-22]

1201655

$1,058.49

7

BEARING

5132753

Unavailable

8

Seal, Oil

5411184

Unavailable

9

Gasket, Cover

5812364

$24.27

10

Cover, Engine, Magneto

1202384

$246.89

11

Screw

7517950

$5.59

11

Screw

7517950

$5.59

11

Screw

7517950

$5.59

12

Seal

5412048

Unavailable

13

BEARING, MAIN JOURNAL

3585704

$28.56

14

Plug, Magnetic

7052306

$15.37

15

WASHER, COPPER

5812232

$1.59

16

SCREW

7517793

$5.59

17

SCREW

7517792

$2.39

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

19

PLATE, BAFFLE

5211785

$39.99

20

BOLT

7516603

$10.39

20

BOLT

7516603

$10.39

21

Pickup, Oil

1201970

Unavailable

22

O-Ring

5812016

$3.19
