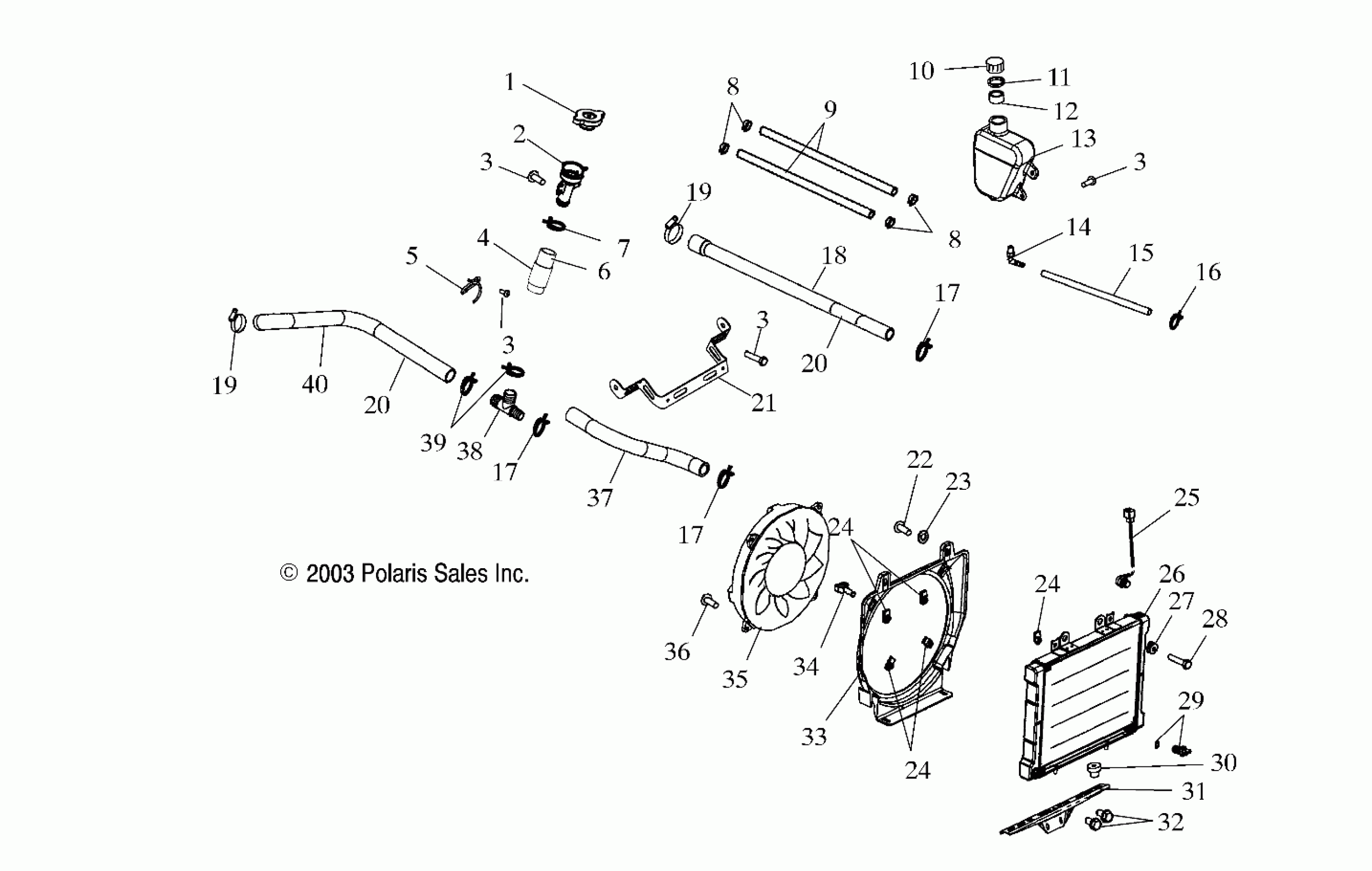

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL COOLING SYSTEM - A03CH68AA/AC/AF/AH/AL (4975557555A10) Diagram

#

Description
Price

1

Cap, Pressure

1240044

Unavailable

2

Filler, Coolant

5434325

Unavailable

3

Screw

7512084

$1.49

3

Screw

7512084

$1.49

3

Screw

7512084

$1.49

3

Screw

7512084

$1.49

4

Guard, Hose

5521644

Unavailable

5

Retainer, Hose

7042089

$7.03

6

Hose, Filler Neck

5412311

$28.32

7

Clamp, 1 Inch

7080827

Unavailable

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

9

Line, Fuel

8450040-150

Unavailable

10

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

11

GASKET-OVERFLOW CAP

5810279

$2.41

12

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

13

Tank, Surge

5431673

Unavailable

14

Fitting, Barbed, 90 Degree

7052065

$7.19

15

Line, Fuel

8450003-1525

$84.99

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

Clamp

7080826

$4.79

17

Clamp

7080826

$4.79

17

Clamp

7080826

$4.79

18

Hose, Engine, Upper

5412030

Unavailable

19

CLAMP, HOSE

7080614

$7.19

19

CLAMP, HOSE

7080614

$7.19

20

Hose, Guard

5521597

Unavailable

20

Hose, Guard

5521597

Unavailable

21

Bracket, Radiator Mount, Upper

5246656

Unavailable

22

Screw

7518014

$4.39

23

Washer

7556196

$4.23

24

U-Clip

7547197

$6.23

24

U-Clip

7547197

$6.23

24

U-Clip

7547197

$6.23

25

Sensor, Thermal

4010161

$103.99

26

Radiator

1240103

Unavailable

27

Grommet

5411975

$3.19

28

Screw

7515179

$2.39

29

Valve, Drain

7052296

Unavailable

30

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

31

Bracket, Radiator, Lower

5245773-067

$144.99

32

SCREW

7517386

$1.49

33

Shroud, Fan

5434171

$70.39

34

Clip, Wiring

4010631

$7.99

35

Asm., Fan and Motor

2410288

Unavailable

36

Screw

7517975

$5.59

37

Hose, Radiator, Lower

5412312

$40.46

38

Connector, Tee

7052282

$24.99

39

Clamp

7081047

Unavailable

40

Hose, Engine, Lower

5412313

$52.60
