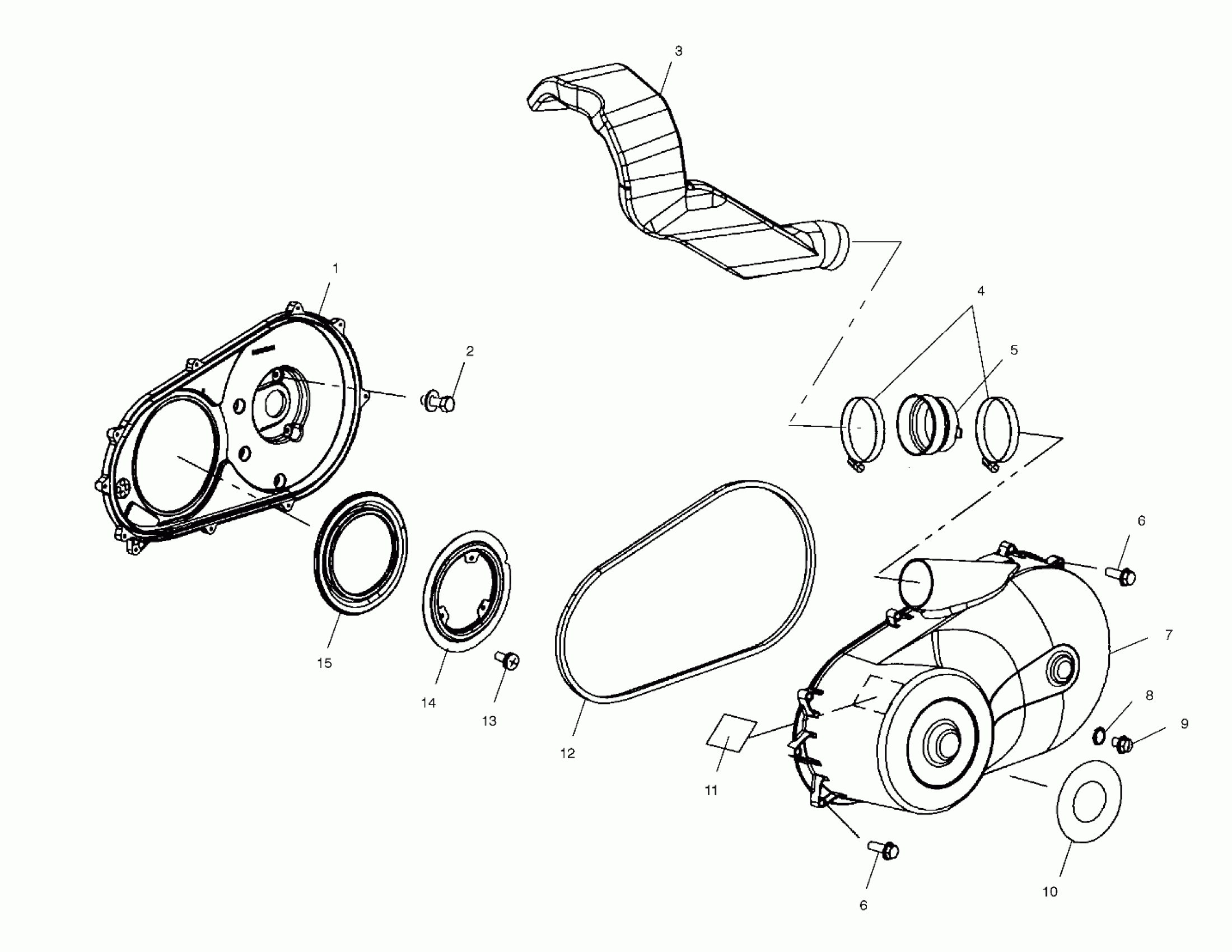

Polaris SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL CLUTCH COVER - A03CH68AA/AC/AF/AH/AL (4986128612C05) Diagram

#

Description
Price

1

Kit, Inner Clutch Cover [Incl. 6,15]

2201955

$140.79

1

Cover, Clutch, Inner

5434235

Unavailable

2

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

3

Duct, Clutch Outlet

5434012

Unavailable

4

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

5

Boot, Duct

5411489

Unavailable

6

SCREW

7512094

$1.59

6

SCREW

7512094

$1.59

7

Asm., Clutch Cover, Outer

2633262

$169.87

8

O RING-.364X.504X.07

5410542

Unavailable

9

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

10

Decal, "Automatic/EBS", Clutch

7077666

Unavailable

11

Decal, Warning, Clutch Cover

7078689

Unavailable

12

Seal, Cover, Clutch, Outer

5521578

Unavailable

13

SCREW

7517867

$1.59

14

Bracket, Retainer, Seal

5244527-067

Unavailable

15

Seal, Cover, Inner

5411918

Unavailable
