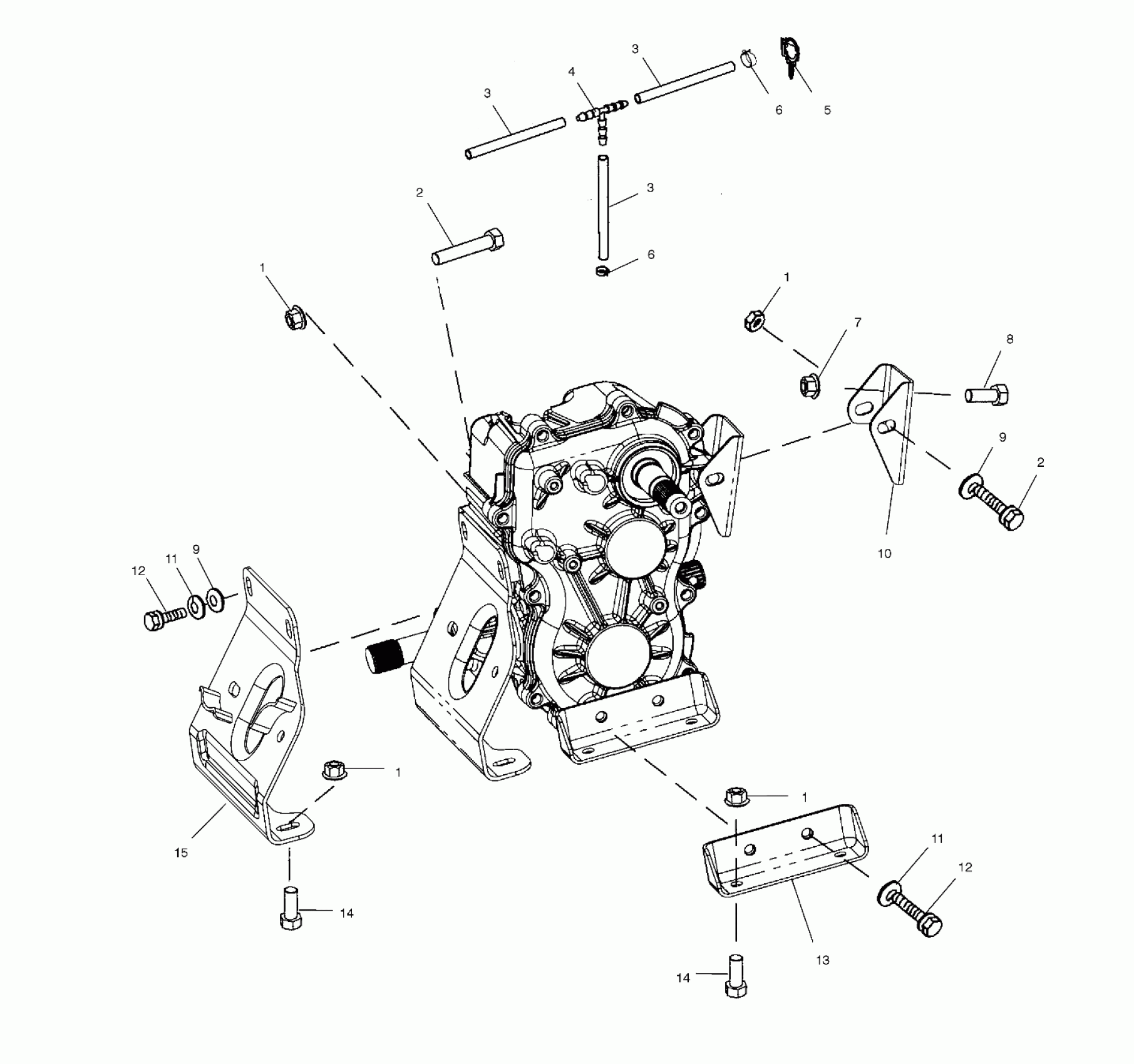

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB TRANSMISSION MOUNTING - A02CH68AA/AB/AC/CA/CB (4966346634C12) Diagram

#

Description
Price

-

ASM., MAIN GEARCASE [SEE GEARCASE PG. C14 FOR DETAILS]

----

Unavailable

1

NUT, FLANGE, LOCK

7547108

$4.76

1

NUT, FLANGE, LOCK

7547108

$4.76

1

NUT, FLANGE, LOCK

7547108

$4.76

1

NUT, FLANGE, LOCK

7547108

$4.76

2

SCREW

7515417

$4.76

2

SCREW

7515417

$4.76

3

Line, Fuel

8450003-1525

Unavailable

3

Line, Fuel

8450003-1525

Unavailable

3

Line, Fuel

8450003-1525

Unavailable

4

T-Fitting

7052075

$9.52

5

Clip

7080756

$4.76

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

7

Nut, Flange

7542321

$1.19

8

SCREW

7515398

$2.38

9

Washer, Flat

7555976

$3.97

9

Washer, Flat

7555976

$3.97

10

Mount, Rear Transmission

5244599-067

$9.05

11

Washer, Spring Lock

7552603

$0.79

11

Washer, Spring Lock

7552603

$0.79

12

Bolt

7515522

$3.97

12

Bolt

7515522

$3.97

13

Mount, Transmission

5245524-067

Unavailable

14

Screw

7517289

$3.29

14

Screw

7517289

$3.29

15

Mount, Rear Engine

1013134-067

Unavailable
