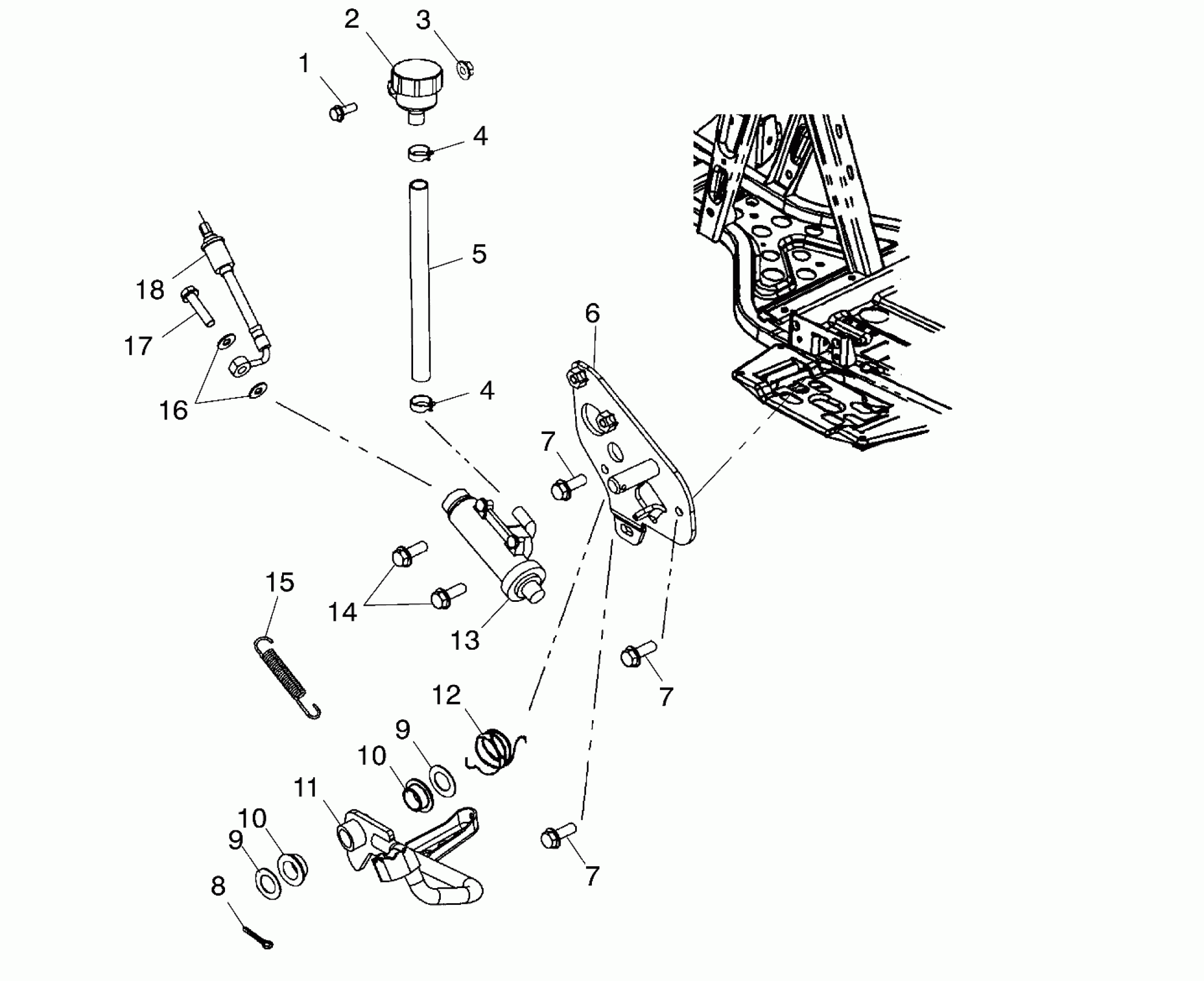

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB REAR MASTER CYLINDER/FOOT PEDAL - A02CH68AA/AB/AC/CA/CB (4966346634C08) Diagram

#

Description
Price

1

Screw

7512240

$3.99

2

Reservoir, Brake, Rear

1930854

$35.99

3

Nut

7542153

$1.59

4

HOSE CLAMP, RED

7080003

$1.49

4

HOSE CLAMP, RED

7080003

$1.49

5

Hose, Reservoir

1910331

$4.95

6

Mount, Brake

1013414-067

Unavailable

7

SCREW

7517386

$1.49

7

SCREW

7517386

$1.49

7

SCREW

7517386

$1.49

8

PIN, COTTER

7661401

$1.49

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

11

Rod, Brake

1013415-067

Unavailable

12

SPRING-TORSION,BRAKE

7041750

$8.79

13

Master Cylinder, Brake, Rear

1910301

$166.01

14

Screw

7515158

$4.79

15

Spring, Gear Selector Lockout

7042075

$49.99

16

Seal

5410988

$4.84

17

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

18

Line, Rear Brake, Foot

1910429

$84.93
