Description

Price

1

Rivet, T-Lock

7661645

$3.99

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

3

WASHER

7555792

$4.79

3

WASHER

7555792

$4.79

4

Foil, Rear Cab, Rear

5811107

$6.46

5

Cab, Rear, Yellow (AC)

5432117-053

Unavailable

5

Cab, Rear, Black Met (AA)(CA)(CB)

5432117-177

Unavailable

5

Cab, Rear, Spruce (AB)

5432117-333

Unavailable

6

Bolt

7511930

$2.39

7

Retainer, Seat Latch

5246076

Unavailable

8

Decal, 4 Stroke, Carb/Filter Information

7079902

Unavailable

9

Foil, Tape, Rear Cab

5811308

$12.79

10

SCREW

7512242

$2.39

11

Washer, Flat

7555859

$1.49

12

Screw

7512085

Unavailable

13

Box, Tool

5431786

$53.59

14

Screw

7517375

Unavailable

15

RIVET

7621403

$1.49

16

BRACKET, LEVER RETAINER

5211033

$29.25

17

LATCH, SEAT

1040387

$47.99

18

SPRING, LATCH

7041370

$9.59

19

Covering, Seat, Black

2682958-070

$141.65

19

Asm., Seat, Gun Metal

2682675-070

$424.98

20

BUMPER-RUBBER

5412067

$3.99

21

Cover, Tool Box

5431787

Unavailable

22

Cap, Drain

5410896

$5.59

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Guard, Clutch (If built before 3/12/02)

5245762-067

Unavailable

25

Nut

7542153

$1.59

26

Screw

7512283

$3.99

27

Brace, Frame

5244751-067

Unavailable

28

Frame, Main

1013214-067

Unavailable

29

Nut, Nylok

7542122

$1.49

30

Mount, Rubber [LH Side Only](AA)(CA)(CB)

5411548

$27.99

31

Spacer

5432280

$8.79

32

SCREW

7517377

$4.79

33

DECAL, HITCH, 1500 LBS. (AB)(AC)(AA, CA if built after 10/22/01)

7170509

$6.39

33

Decal, Hitch (CB)(AA, CA if built before 10/22/01)

7078261

Unavailable

34

SCREW

7517685

$1.59

35

Foil, Rear Fender

5811111

$32.37

36

Foil

5811087

Unavailable

37

Foil, Rear Cab, Front

5811106

$8.89

38

Guard, Mud, Rear, LH

5431796-070

Unavailable

38

Guard, Mud, Rear, RH

5431797-070

Unavailable

39

NUT, U-TYPE SPEED

7670057

$1.49

40

Screw [RH Side]

7517376

Unavailable

40

Screw [LH Side]

7517264

$3.99

41

Footwell, Black, LH

5432221-070

$230.70

41

Footwell, Black, RH

5433929-070

$230.70

42

Bracket, Reservoir

5244824-067

Unavailable

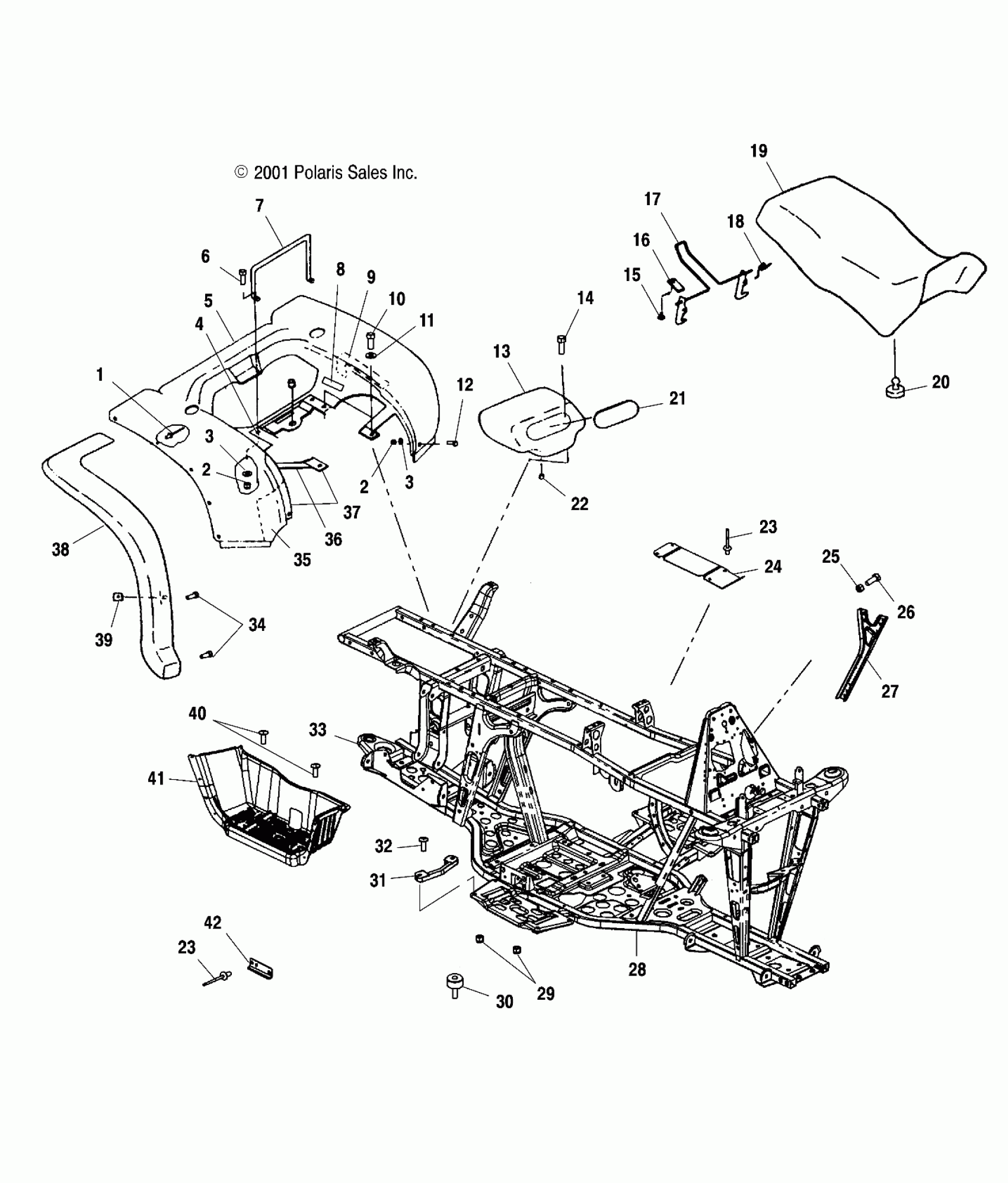

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB REAR CAB/SEAT/MAIN FRAME - A02CH68AA/AB/AC/CA/CB (4966346634A03) Diagram

Rivet, T-Lock

Nut, Nylok

Nut, Nylok

WASHER

WASHER

Foil, Rear Cab, Rear

Cab, Rear, Yellow (AC)

Cab, Rear, Black Met (AA)(CA)(CB)

Cab, Rear, Spruce (AB)

Bolt

Retainer, Seat Latch

Decal, 4 Stroke, Carb/Filter Information

Foil, Tape, Rear Cab

SCREW

Washer, Flat

Screw

Box, Tool

Screw

RIVET

BRACKET, LEVER RETAINER

LATCH, SEAT

SPRING, LATCH

Covering, Seat, Black

Asm., Seat, Gun Metal

BUMPER-RUBBER

Cover, Tool Box

Cap, Drain

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

Guard, Clutch (If built before 3/12/02)

Nut

Screw

Brace, Frame

Frame, Main

Nut, Nylok

Mount, Rubber [LH Side Only](AA)(CA)(CB)

Spacer

SCREW

DECAL, HITCH, 1500 LBS. (AB)(AC)(AA, CA if built after 10/22/01)

Decal, Hitch (CB)(AA, CA if built before 10/22/01)

SCREW

Foil, Rear Fender

Foil

Foil, Rear Cab, Front

Guard, Mud, Rear, LH

Guard, Mud, Rear, RH

NUT, U-TYPE SPEED

Screw [RH Side]

Screw [LH Side]

Footwell, Black, LH

Footwell, Black, RH

Bracket, Reservoir
