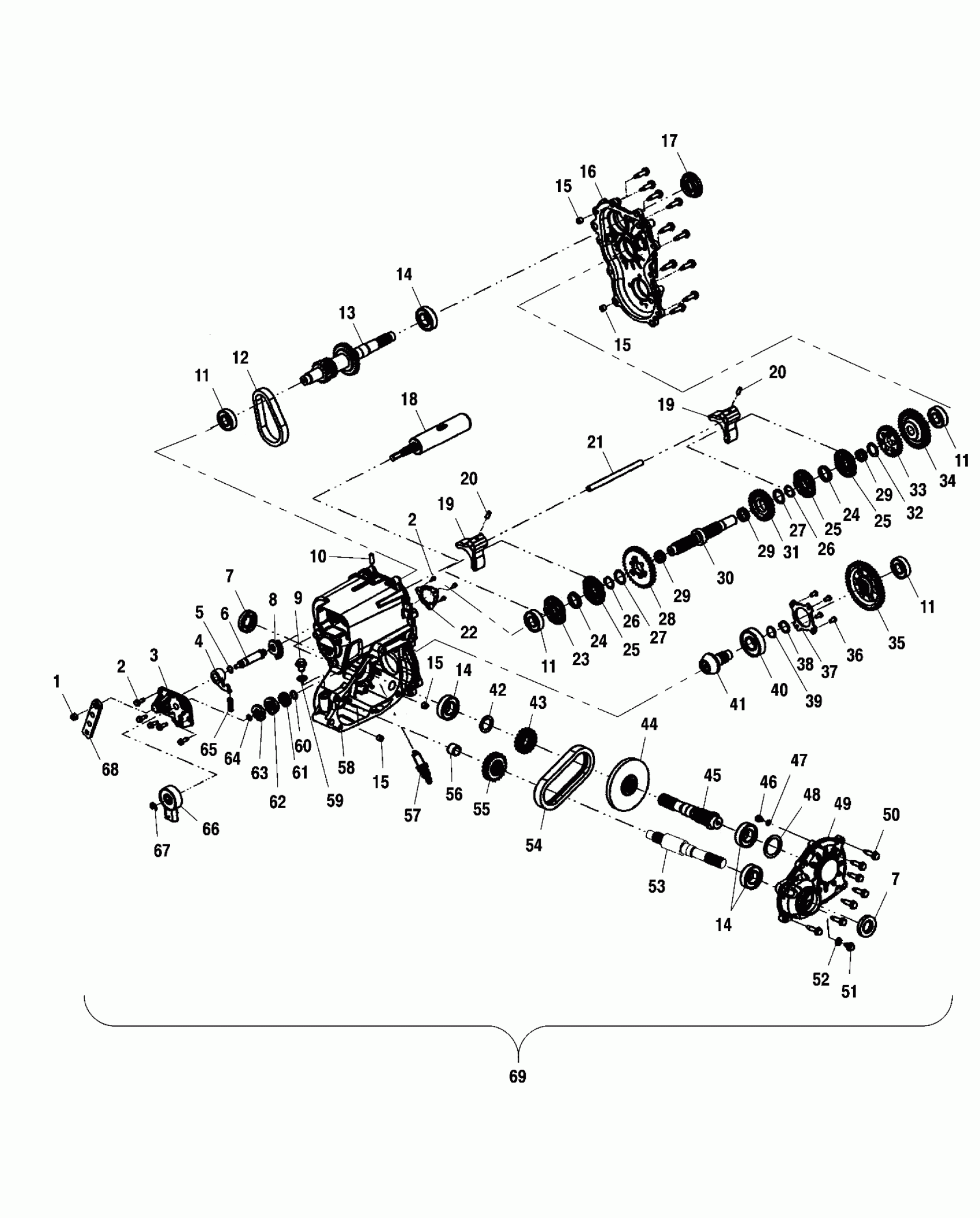

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB GEARCASE - A02CH68AA/AB/AC/CA/CB (4966346634C13) Diagram

#

Description
Price

1

NUT

3233961

$3.32

2

SCREW

3233826

$9.52

2

SCREW

3233826

$9.52

3

Cover

3233827

$113.32

4

Pawl, Detent

3233829

$36.41

5

O-RING

3233869

$5.65

6

SHAFT, SHIFT

3233831

$60.70

7

Seal

3233788

$32.37

7

Seal

3233788

$32.37

8

GEAR-SECTOR,31T

3233832

$36.41

9

Plug, Oil Fill

3233711

Unavailable

10

TUBE, VENT

3233524

$9.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

Chain, Silent

3233036

Unavailable

13

Shaft, Input

3233890

Unavailable

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

Pipe, Knock

3233529

$10.99

15

Pipe, Knock

3233529

$10.99

15

Pipe, Knock

3233529

$10.99

15

Pipe, Knock

3233529

$10.99

16

Cover, LH

3233865

Unavailable

17

Seal

3233874

$32.37

18

Drum, Shift

3233910

Unavailable

19

Fork, Shift w/Pin [Incl. 20]

3234141

Unavailable

19

Fork, Shift w/Pin [Incl. 20]

3234141

Unavailable

20

Pin, Dowel

----

Unavailable

20

Pin, Dowel

----

Unavailable

21

RAIL, SHIFT SHAFT

3233860

$64.99

22

PLATE, PARK

3233915

$40.46

23

ENGAGEMENT DOG

3234040

Unavailable

24

SPRING, WAVE

3234144

$33.24

24

SPRING, WAVE

3234144

$33.24

25

ENGAGEMENT DOG

3233875

$165.94

25

ENGAGEMENT DOG

3233875

$165.94

25

ENGAGEMENT DOG

3233875

$165.94

26

RING, RETAINING

3233850

$10.32

26

RING, RETAINING

3233850

$10.32

27

WASHER

3233851

$10.32

27

WASHER

3233851

$10.32

28

GEAR, 33T

3233852

$246.89

29

BEARING, NEEDLE

3233718

$35.71

29

BEARING, NEEDLE

3233718

$35.71

29

BEARING, NEEDLE

3233718

$35.71

30

Shaft, Reverse

3233853

Unavailable

31

Sprocket, 24T

3233854

$169.99

32

WASHER

3233855

$10.32

33

Gear, 28T

3233912

Unavailable

34

Gear, 40T

3233913

Unavailable

35

Gear, 44T

3233612

Unavailable

36

Screw

3233608

$5.99

37

Cover, Bearing

3233609

$19.99

38

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

39

SPACER

3233357

$24.99

40

Bearing, Ball

3233607

$36.41

41

Subasm., Ground Spiral Bevel [Incl. 44]

3234912

Unavailable

42

WASHER,THRUST

3233619

$24.99

43

SPROCKET, 22T/18T

3233873

$124.99

44

Subasm., Ground Spiral Bevel [Incl. 41]

3234912

Unavailable

45

SHAFT-OUTPUT,MAIN,REAR

3233911

$214.99

46

THRUST BUTTON

3233582

$8.99

47

SHIM

3233583

Unavailable

48

SHIM

3233611

Unavailable

49

Cover, Output, Front

3233781

Unavailable

50

SCREW

3234114

$7.14

51

Plug

3233777

$34.99

52

Washer

3233254

$8.08

53

SHAFT,FRONT OUTPUT

3233625

$141.65

54

CHAIN, SILENT

3233784

$93.08

55

SPROCKET-22T

3233844

$144.99

56

BUSHING-GARLOCK

3233552

$23.81

57

Lockout, Park

3233917

Unavailable

58

Gearcase, Main

3233867

$569.99

59

Washer

3233324

$8.54

60

O-Ring

3233548

$33.24

61

GEAR, 16T

3233839

$36.41

62

DISC, LOCKOUT

3233838

$33.24

63

Star, Detent

3234082

$42.74

64

O-RING

3233076

$6.46

65

SPRING, COMPRESSION

3233830

$10.32

66

SWITCH

3233835

$142.49

67

RING, RETAINING

3233834

$10.32

68

Bellcrank

3233906

Unavailable

69

Asm., Main Gearcase

1341343

Unavailable
