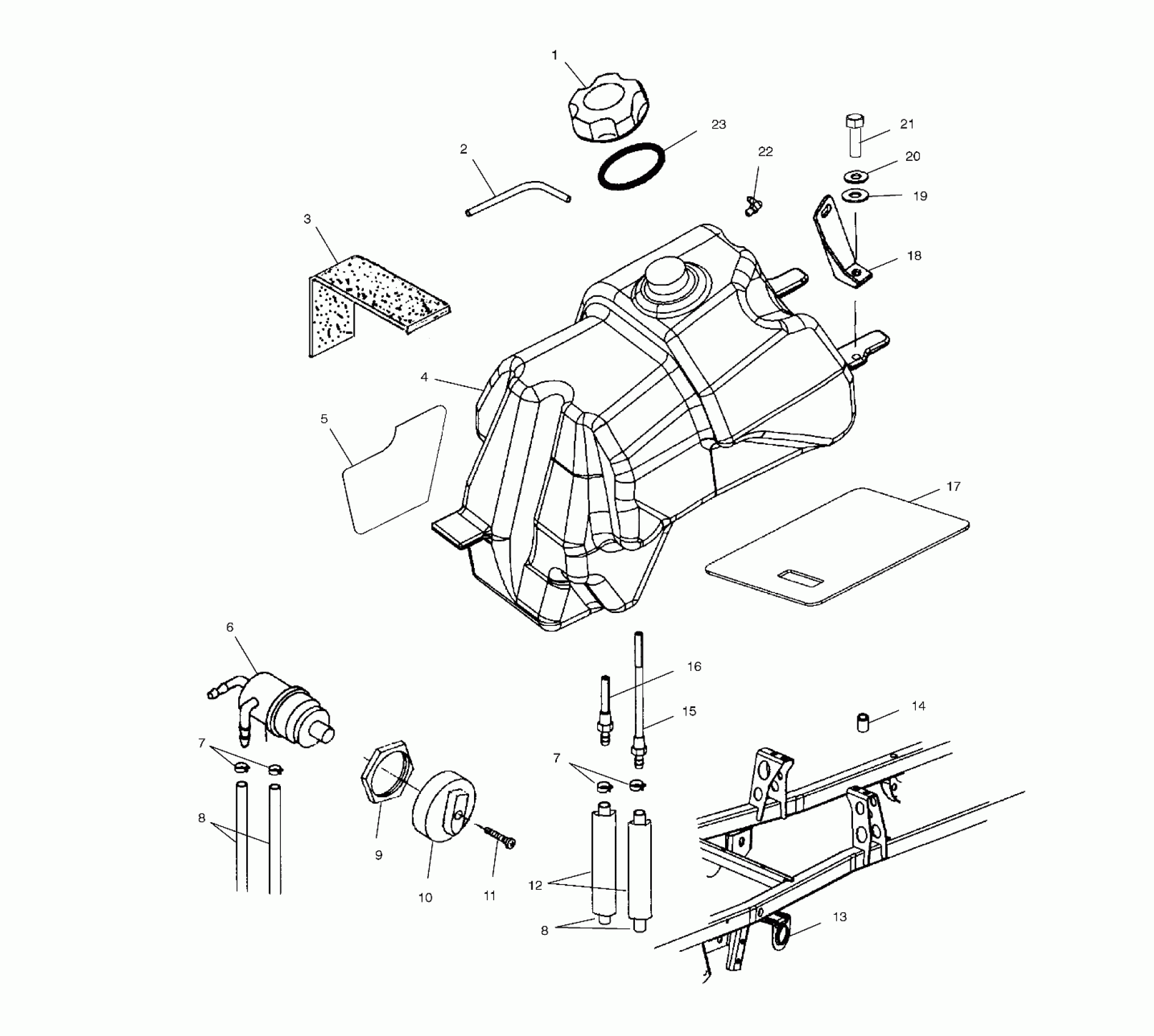

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB FUEL TANK - A02CH68AA/AB/AC/CA/CB (4966346634A12) Diagram

#

Description
Price

1

Cap, Gas Tank [Incl. 23]

5434329

$24.27

2

LINE, FUEL

8360009-600

Unavailable

3

SEAL, FOAM

5812265

$28.32

4

Asm., Fuel Tank [Incl. 15,16,22]

2520203

Unavailable

5

Foil, Fuel Tank

5182004

Unavailable

6

Valve, 3-Way

7052161

$44.51

7

HOSE CLAMP, RED

7080003

$1.19

7

HOSE CLAMP, RED

7080003

$1.19

8

Line, Fuel

8450040-600

Unavailable

8

Line, Fuel

8450040-600

Unavailable

9

Nut, Fuel Valve

5432733

Unavailable

10

Knob, Fuel Valve

5432559

$11.32

11

Screw

7517505

$1.59

12

Sheath, Foil

8450080-65

$64.75

13

Bracket, Fuel Valve

5240577-067

Unavailable

14

Nutsert

7547069

$3.97

15

Fitting, Fuel Outlet, Main

7052150

$27.78

16

Fitting, Fuel Outlet, Reserve

7052149

$23.81

17

Foil, Fuel Tank

5812005

$20.22

18

Bracket, Mounting, Rear, LH

5246069-067

Unavailable

18

Bracket, Mounting, Rear, RH

5246070-067

$49.99

19

Washer, Flat

7558301

$1.19

20

WASHER, SPRING LOCK

7552801

$1.59

21

Bolt

7512247

Unavailable

22

Vent, Tank

5431053

$24.27

23

GASKET

5812123

$5.65
