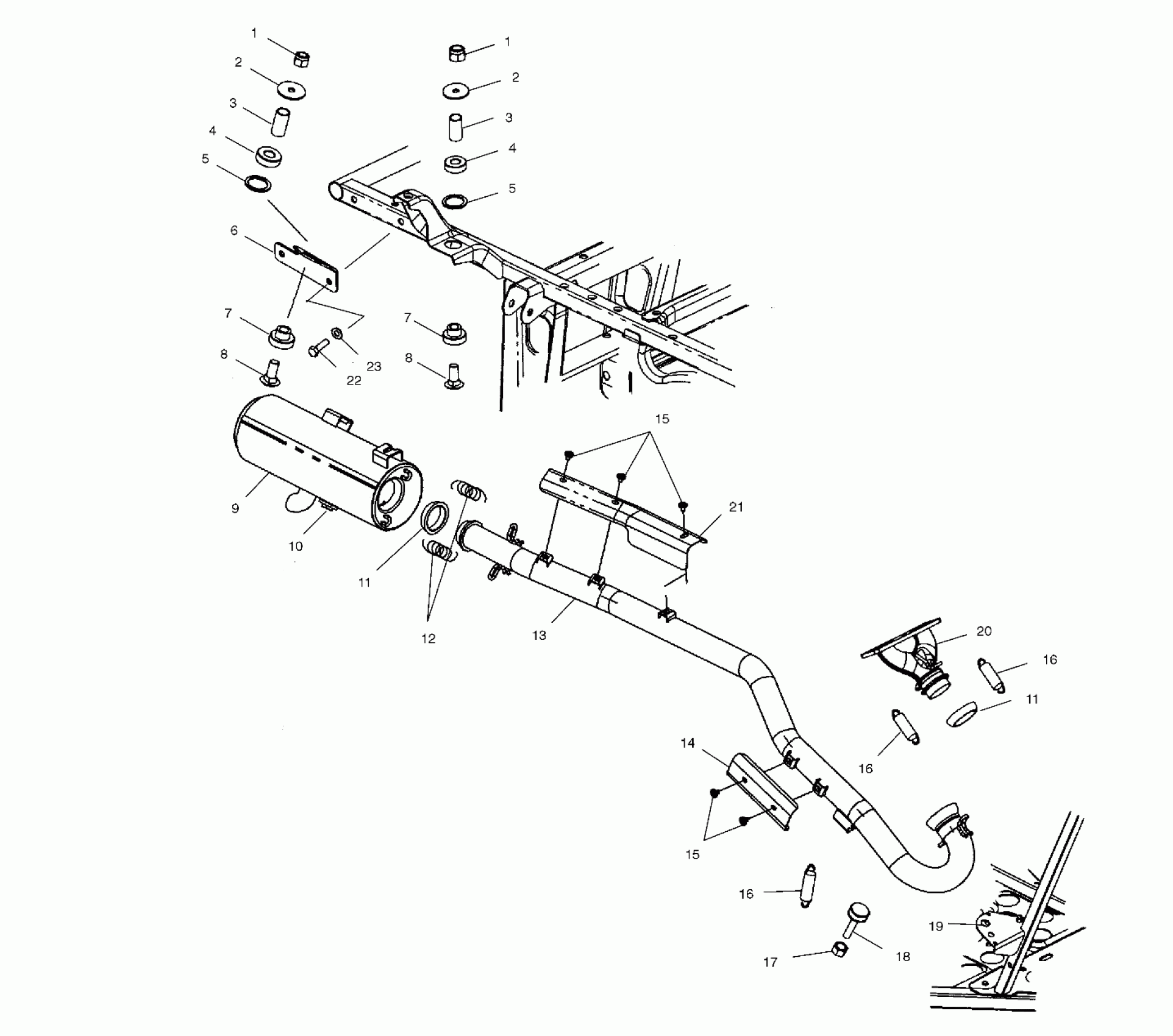

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB EXHAUST SYSTEM - A02CH68AA/AB/AC/CA/CB (4966346634A11) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

BUSHING

5010192

$6.39

3

BUSHING

5010192

$6.39

4

WASHER, RUBBER

5410436

$1.59

4

WASHER, RUBBER

5410436

$1.59

5

Washer

7555863

$2.39

5

Washer

7555863

$2.39

6

BRACKET, SILENCER, FRAME

5241663

$10.39

7

Dampener, Vibration

5410241

Unavailable

7

Dampener, Vibration

5410241

Unavailable

8

BOLT, CARRIAGE

7515316

$2.39

8

BOLT, CARRIAGE

7515316

$2.39

9

Silencer, Exhaust (If built after 10/22/01)

1261223-029

Unavailable

9

Silencer, Exhaust (If built before 10/22/01)

1261079-029

Unavailable

10

BOLT

7512666

$2.39

11

SEAL, EXHAUST

3610047

$36.41

11

SEAL, EXHAUST

3610047

$36.41

12

SPRING, EXHAUST

7041804

$7.99

13

Pipe, Exhaust

1261080-029

$229.99

14

Shield, Heat

5244014

$39.99

15

Screw

7515106

$2.39

15

Screw

7515106

$2.39

16

SPRING-EXHAUST

7041789

$7.99

16

SPRING-EXHAUST

7041789

$7.99

16

SPRING-EXHAUST

7041789

$7.99

17

NUT

7542301

$1.59

18

Mount, Torque Stop

3110064

Unavailable

19

NUTSERT

7547101

$9.59

20

Manifold

1261077-029

Unavailable

21

Shield, Heat, Exhaust

5245502

$23.99

22

Bolt

7512329

$3.99

23

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
