- SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB
ELECTRICAL/TAILLIGHT - A02CH68AA/AB/AC/CA/CB (4966346634C07)

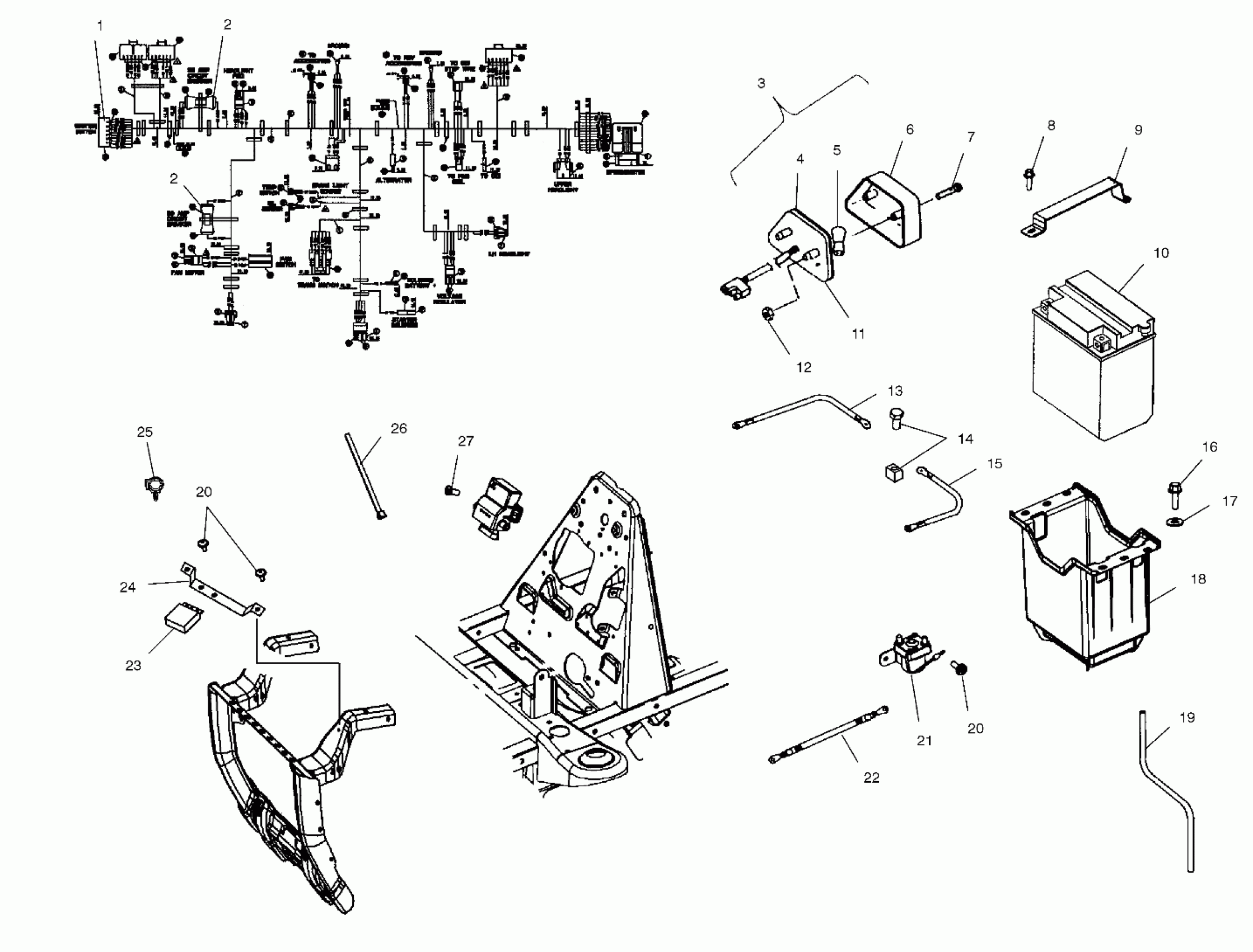

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB ELECTRICAL/TAILLIGHT - A02CH68AA/AB/AC/CA/CB (4966346634C07) Diagram
#
Description
Price
1
Harness, Main Wire
2460936
Unavailable
2
Circuit Breaker, 20 AMP
2410323
$64.75
3
Asm., Taillight w/Brake Light [Incl. 6-12](If built before 2/01/02)
2432034
$55.99
3
Asm., Taillight, 12V [Incl. 6-12](If built after 2/01/02)
2410320
$63.99
4
Gasket, Taillight
4032045
$4.03
5
Bulb, Taillight
4030043
$6.46
6
Lens, Taillight
4032046
$32.37
7
Screw, Taillight
4032029
$4.79
8
SCREW
7517386
$1.49
9
Strap, Battery Holddown
5245125-067
Unavailable
10
Battery, 30 AMP
4010630
$147.60
11
Backing, Taillight/Brake Light
4032064
$83.99
12
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
13
Cable
4010470
Unavailable
14
Kit, Battery Bolt
2202099
$5.99
15
Cable, Battery/Solenoid
4010471
Unavailable
16
SCREW
7512232
$1.49
17
Washer, Flat
7555859
$1.49
18
Box, Battery
5434037
$27.99
19
Tube, Battery Vent
5432077
Unavailable
20
SCREW
7512024
$4.79
20
SCREW
7512024
$4.79
21
Switch, Magnetic
3083211
Unavailable
22
CABLE, SOLENOID/STARTER
4010376
$47.99
23
Rectifier, Regulator
4010657
Unavailable
24
Sink, Heat
5133182
Unavailable
25
Clip, Rosebud [Small]
4020139
$4.79
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
Screw
7512027
$1.49
