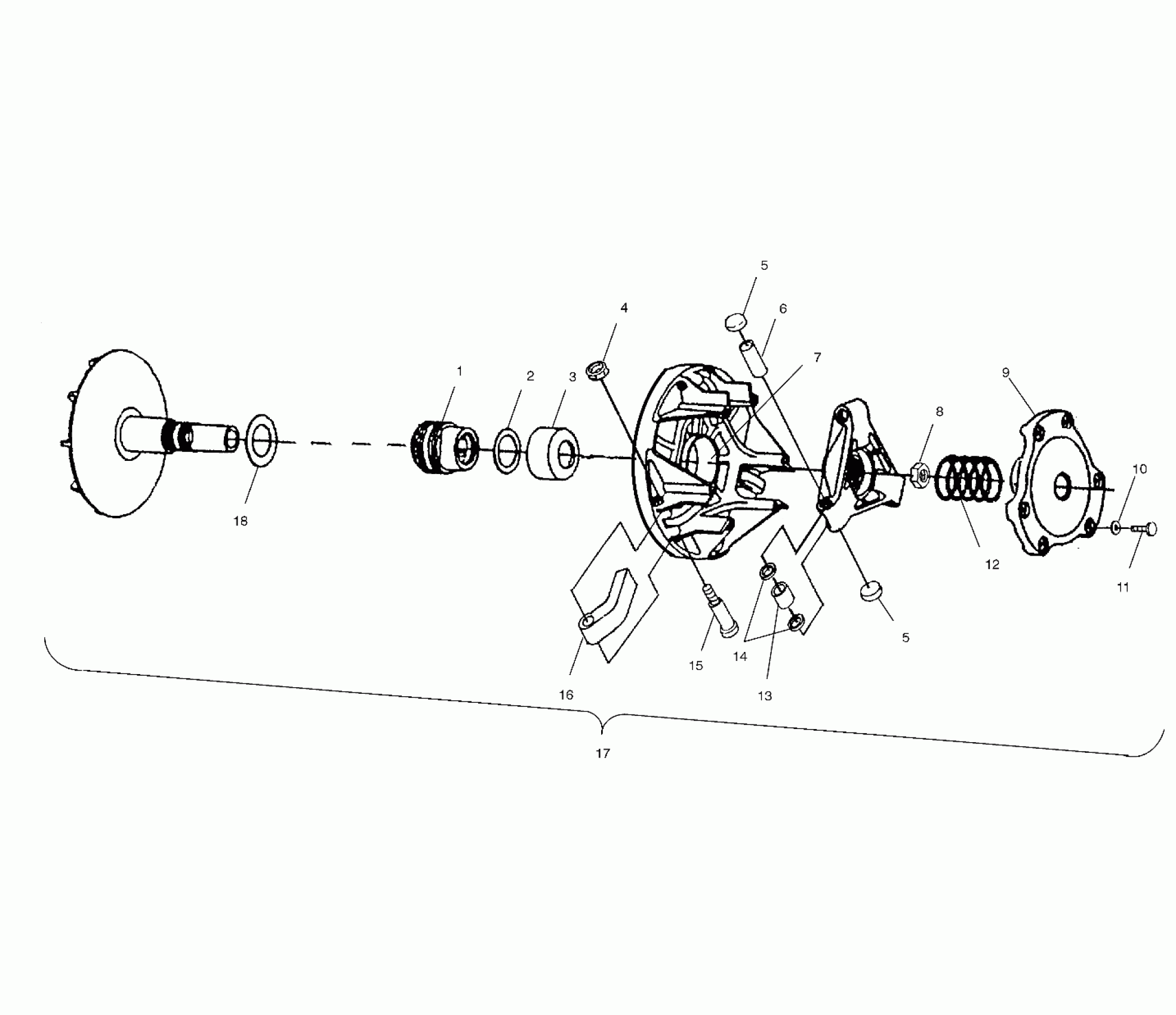

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB DRIVE CLUTCH - A02CH68AA/AB/AC/CA/CB (4966346634C01) Diagram

#

Description
Price

1

Clutch, One Way Drive

1520231

$309.99

2

Washer, Brass

7556202

$6.46

3

Spacer

5631119

Unavailable

4

NUT, FLEXLOC

7541906

$3.17

5

Button, Clutch, Stemless

5431936

$8.08

5

Button, Clutch, Stemless

5431936

$8.08

6

PIN-ROLLER

5020422

$2.38

7

Bearing

3585712

$31.75

8

Nut, Jam

7547130

Unavailable

9

COVER, BEARING

3576510

$9.52

10

WASHER, SPRING LOCK

7552801

$1.59

11

Bolt

7512176

$3.97

12

SPRING, CLUTCH

7041157

$48.56

13

ASM-ROLLER AND BUSHING

1321622

$32.37

14

WASHER,MULTILUBE

5430945

$1.59

15

BOLT, SHOULDER

7512266

$3.17

16

Weight, Shift, 20-56

5631215

$39.99

17

Asm., Drive Clutch, EBS, Wide [Incl. All Less 12,16]

1321971

$626.99

18

Washer, Thrust

7556204

$11.11
