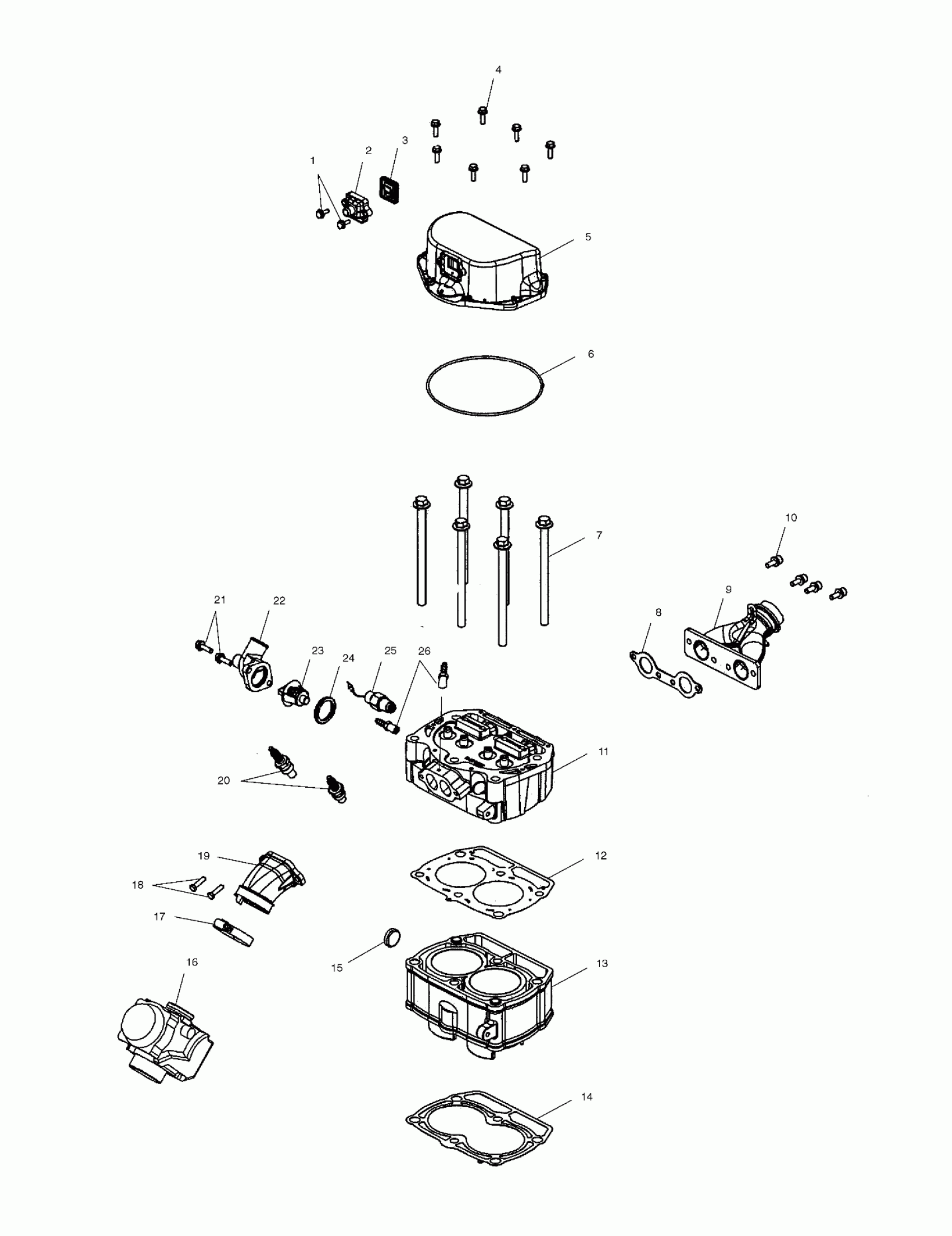

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB CYLINDER and CYLINDER HEAD - A02CH68AA/AB/AC/CA/CB (4966346634D05) Diagram

#

Description
Price

1

SCREW

7517277

$3.19

2

Cover, Breather

5432533

Unavailable

3

ASM-REED W/GASKET

3021352

$28.32

4

SCREW

7516822

$2.39

5

Cover, Rocker

1201973

Unavailable

6

Seal

5411862

$48.56

7

Screw

7517883

Unavailable

8

GASKET, EXHAUST

5811511

$48.56

9

MANIFOLD (See Exhaust System Pg. A11, Ref. 20)

-------

Unavailable

10

Screw

7516730

$6.39

11

Guide, Valve

5131429

Unavailable

11

Head, Cylinder

1201657

Unavailable

12

Gasket, Head

5812193

$55.99

13

Kit, Cylinder [Incl. 15]

2202158

Unavailable

14

Gasket, Base

5811455

$39.99

15

PLUG

7051534

$5.59

16

Asm., Carburetor

1253158

Unavailable

17

Clamp, Hose

7080681

$9.59

18

SCREW

7516734

$3.19

19

Adapter, Carburetor

1253415

$91.99

20

Spark Plug, RC7YC

3070195

Unavailable

21

SCREW

7516822

$2.39

22

Cover, Thermostat

5631196

Unavailable

23

Thermostat

7052308

Unavailable

24

O-Ring

5411521

$24.19

25

Switch, Temperature

4010356

$59.99

26

Fitting

7052135

$9.52
