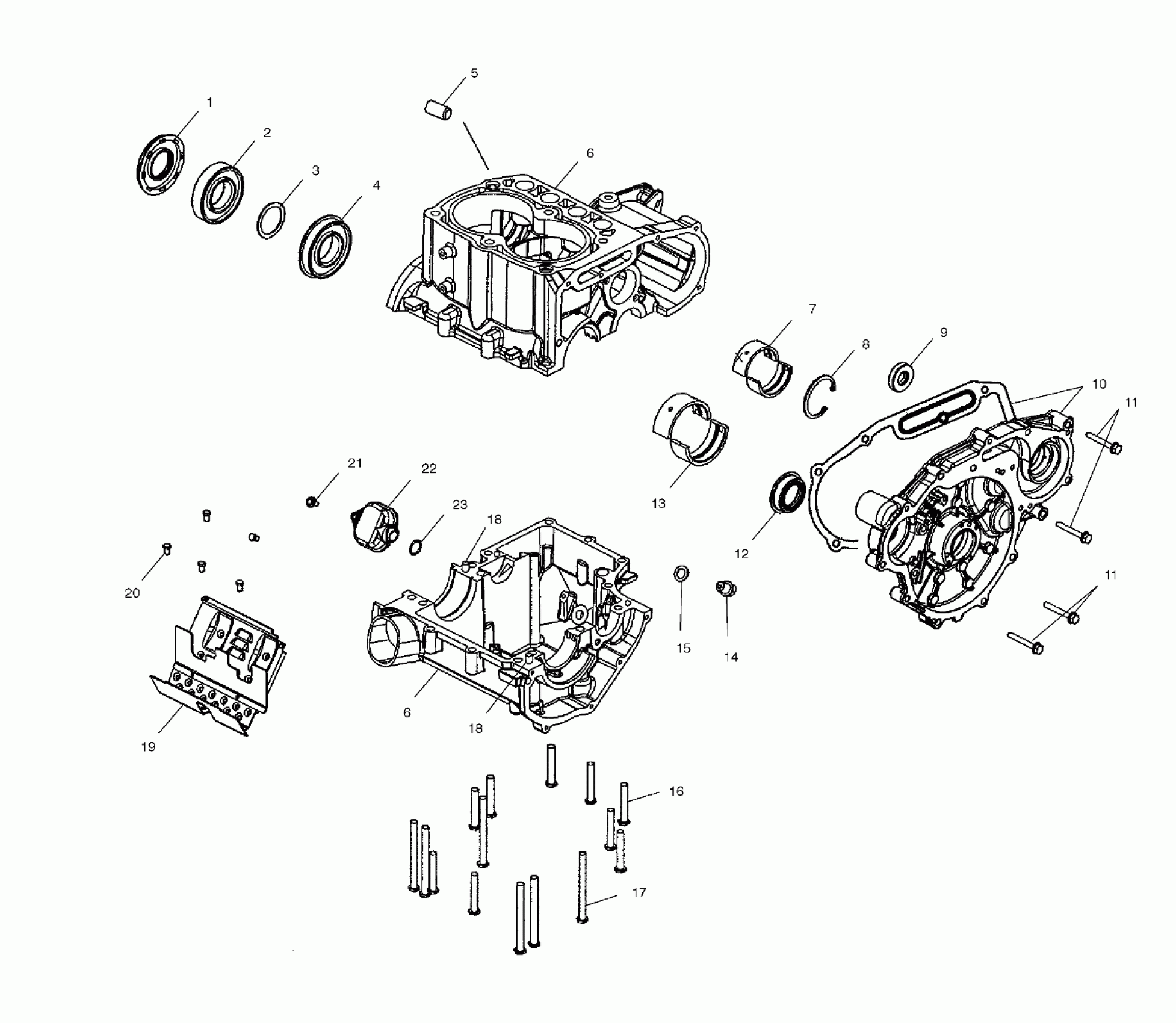

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB CRANKCASE - A02CH68AA/AB/AC/CA/CB (4966346634D03) Diagram

#

Description
Price

1

Seal, Flanged (If built before 10/01/01)

5411394

$29.99

1

Seal, Flanged (If built after 10/01/01)

5412114

$39.99

2

BEARING, BALL

3514361

Unavailable

3

BUSHING

7556194

$3.99

4

BEARING, BALL

3514318

$43.99

5

Plug

7518007

$5.65

6

Kit, Crankcase [Incl. 8,14-23]

2202364

$1,058.49

6

Kit, Crankcase [Incl. 8,14-23]

2202364

$1,058.49

7

BEARING

5132753

Unavailable

8

RING, RETAINING

7710512

$3.99

9

Seal, Oil

5411184

Unavailable

10

Gasket, Cover

5812364

$24.27

10

Kit, Cover (Incl. Gasket)

2202178

$246.89

11

Screw

7517950

$5.59

11

Screw

7517950

$5.59

12

Seal (If built after 10/01/01)

5412048

Unavailable

12

Seal (If built before 10/01/01)

5411919

Unavailable

13

BEARING, MAIN JOURNAL

3585704

$28.56

14

Plug, Magnetic

7052306

$15.37

15

WASHER, COPPER

5812232

$1.59

16

SCREW

7517793

$5.59

17

SCREW

7517792

$2.39

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

19

Baffle

1202113

Unavailable

20

Screw

7517318

$2.39

21

Screw

7516603

$10.39

22

Pickup, Oil

1201970

Unavailable

23

O-Ring

5812016

$3.19
