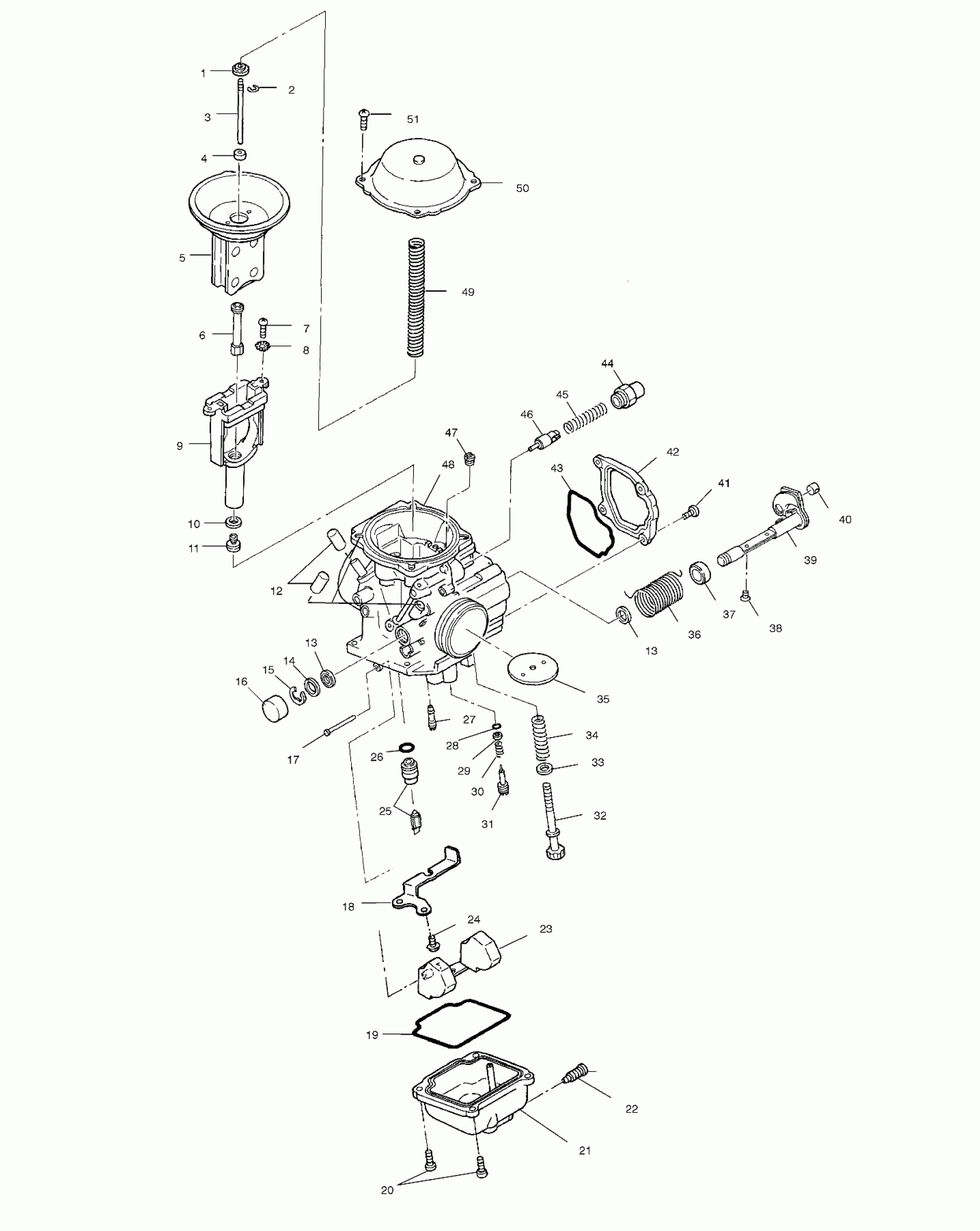

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB CARBURETOR - A02CH68AA/AB/AC/CA/CB (4966346634D07) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING

3130508

$6.46

3

Needle, Jet

3130963

$40.46

4

RING

3130752

$5.65

5

Diaphragm

3130732

$156.74

6

Needle, Jet [P-6]

3131363

$40.46

7

SCREW

3130541

$11.11

8

WASHER, SPRING

3130540

$4.76

9

ASM., JET BLOCK

----

Unavailable

10

WASHER

3130014

$1.59

11

Jet, Main [#155]

3130571

$8.89

12

Cap

5434505

$4.84

13

SEAL

3130515

$12.13

13

SEAL

3130515

$12.13

14

PACKING

----

Unavailable

15

E-RING

----

Unavailable

16

CAP

3130519

$10.51

17

PIN, FLOAT

3130361

$9.70

18

PLATE

3130594

$32.37

19

O-RING

3130532

$32.37

20

SCREW

3130520

$1.59

21

Asm., Float Body

3130590

$119.98

22

SCREW

3130521

$10.32

23

ASM., FLOAT

3130529

$99.74

24

SCREW

3130591

$3.97

25

Valve, Needle [1.5]

3131360

$61.74

26

O-RING

3130533

$5.65

27

Jet, Pilot [#45]

3131397

$28.32

28

O-Ring

3130522

$5.65

29

Washer

3130523

$2.38

30

Spring

3130525

$5.65

31

Adjuster

3130524

$23.81

32

Screw, Adjust

3130546

$13.75

33

Ring

3130545

$12.13

34

Spring

3130544

$10.51

35

VALVE, THROTTLE [100]

----

Unavailable

36

Spring

3131398

$11.90

37

Ring

3130514

$7.27

38

SCREW

----

Unavailable

39

ASM., THROTTLE SHAFT

----

Unavailable

40

GUIDE, CABLE

3130543

$32.37

41

SCREW

3130535

$7.14

42

COVER

3130511

$54.99

43

O-Ring

3130512

Unavailable

44

HOLDER, GUIDE

3131396

$14.56

45

SPRING

3130538

$5.65

46

ASM., PLUNGER

3131395

$40.46

47

Jet, Air [#160]

3130625

$14.56

48

Asm., Carburetor [Incl. 1-12][AA]

1253438

Unavailable

48

Asm., Carburetor [Incl. 1-12][CA]

1253158

Unavailable

49

SPRING

3130505

$28.32

50

ASM., COVER

3130503

$68.79

51

SCREW-MIKUNI C2=0408

3130592

$1.59
