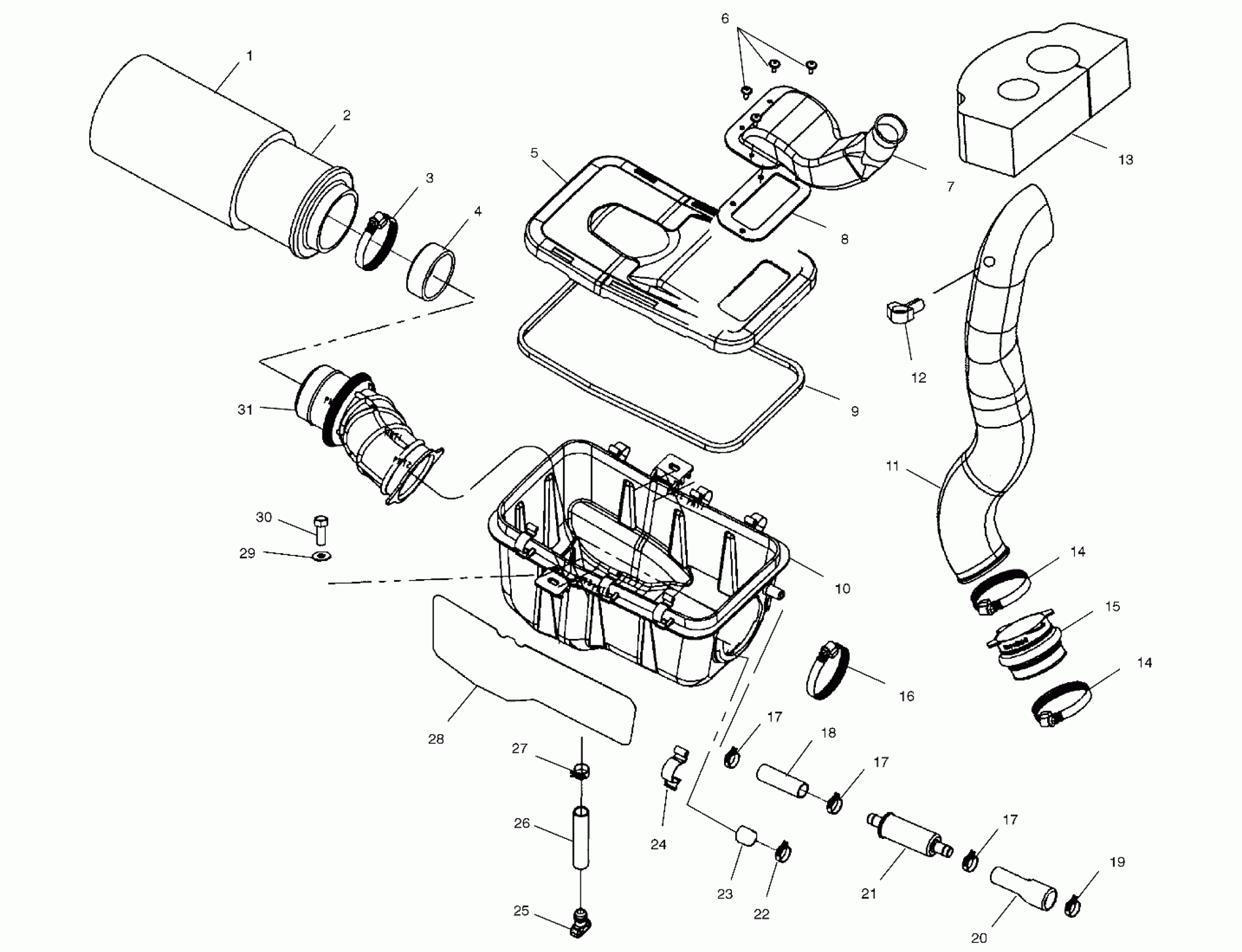

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB AIR BOX - A02CH68AA/AB/AC/CA/CB (4966346634B01) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.90

2

FILTER, AIR INTAKE

7080595

$27.78

3

Clamp, Narrow Band

7080413

$3.17

4

Sleeve

5433847

$14.56

5

Cover, Air Box

5432868

$56.65

6

Screw

7517541

$4.76

7

Duct, Air Inlet

5434013

Unavailable

8

Gasket, Intake

5411422

$6.59

9

Seal, Air Box Cover

5811482

$28.32

10

Box, Air

5433678

$137.60

11

Duct, Clutch Air Inlet

5434044

Unavailable

12

Clip

7670102

$2.38

13

Seal, Foam

5812316

$32.37

14

CLAMP, HOSE

7080451

$7.14

14

CLAMP, HOSE

7080451

$7.14

15

Boot

5411944

$11.32

16

Clamp, Narrow Band

7080511

$4.76

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

18

Line, Breather

8450073-600

Unavailable

19

Clamp

7080694

$6.64

20

Hose, Breather, Formed

5411966

$11.32

21

Filter, Breather

2530029

$6.35

22

Clamp, Hose

7080534

$1.59

23

Cap, End

5433396

$4.84

24

CLIP-AIR BOX

5242044

$9.52

25

Plug, Trap

5432377

Unavailable

26

Line, Fuel

8450059-150

Unavailable

27

Clamp, Hose

7080650

$3.97

28

Foil, Air Box

5811650

Unavailable

29

Washer, Flat

7558301

$1.19

30

Screw

7515179

$2.38

31

Boot, Carb

5412066

$40.46
