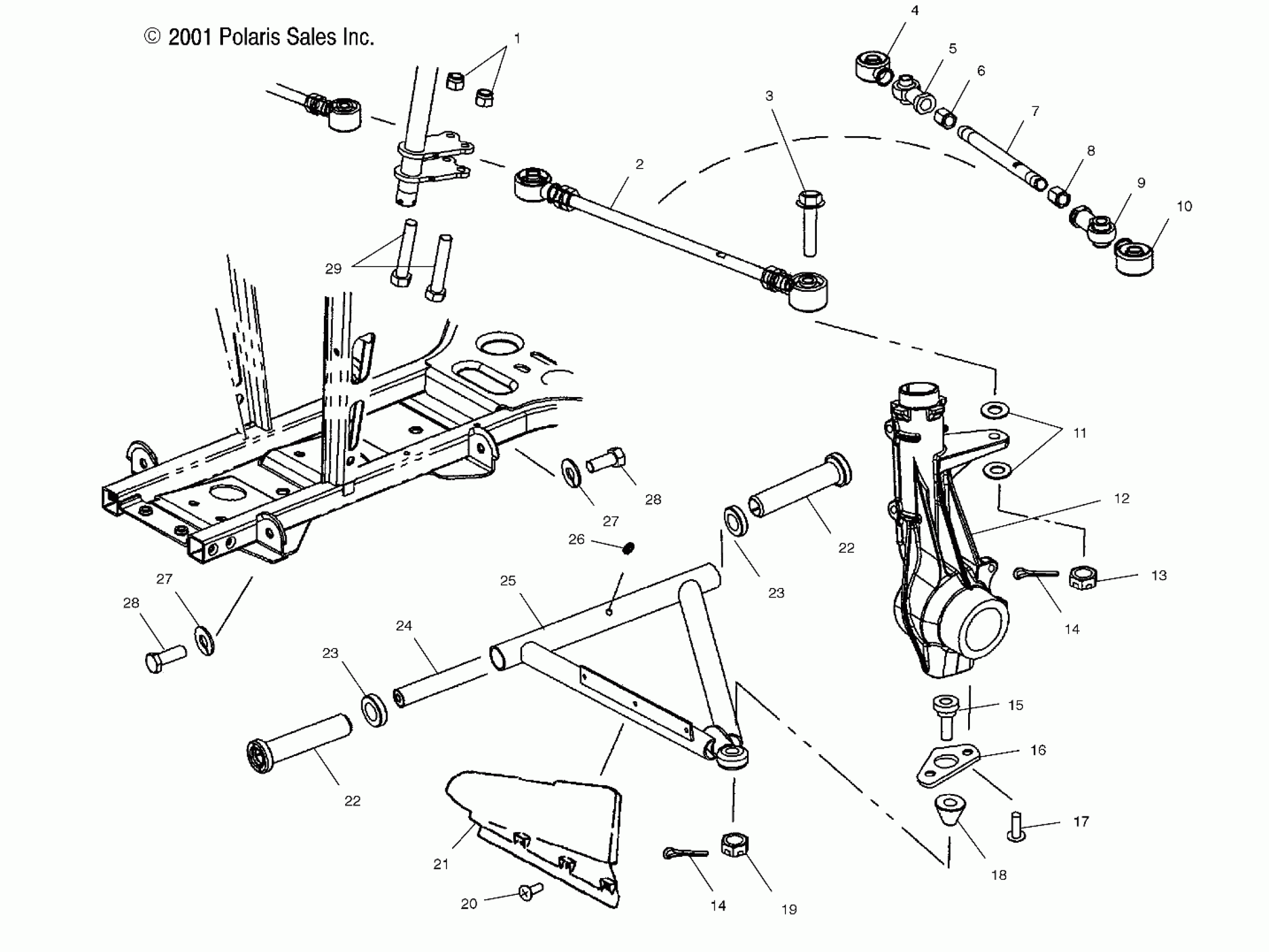

Polaris SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB A-ARM/STRUT MOUNTING - A02CH68AA/AB/AC/CA/CB (4966346634B12) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

$3.99

2

Asm., Tie Rod

1820805

Unavailable

3

Bolt

7517909

$5.59

4

Boot, Seal, Rod End

5411291

Unavailable

5

Rod End

7061034

$54.04

6

Nut

7542711

$2.39

7

Tie Rod

5020926

$39.99

8

Nut, LH

7547028

$2.39

9

Rod End, LH

7061054

Unavailable

10

Boot, Seal, Rod End

5411920

Unavailable

11

Washer, Flat

7556099

$1.59

12

ASM., HUBSTRUT [See Front Strut Pg. B6 for Details]

-------

Unavailable

13

Nut

7547177

$2.39

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

Joint, Ball

7080927

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

Screw

7512084

$1.49

21

Shield, CV Joint, RH

5433928-070

Unavailable

21

Shield, CV Joint, LH

5433927-070

Unavailable

22

Bushing, A-Arm, Long

5434551

$5.01

22

Bushing, A-Arm, Long

5434551

$5.01

23

Bushing

5020677

$10.39

23

Bushing

5020677

$10.39

24

Shaft, A-Arm

5020681

Unavailable

25

Kit, A-Frame, LH

2200627

$123.70

25

Kit, A-Frame, RH

2200628

$123.70

26

Fitting, Lubrication

7080433

$1.49

27

Washer, Spring Lock

7552603

$1.49

27

Washer, Spring Lock

7552603

$1.49

28

Screw

7512492

$1.49

28

Screw

7512492

$1.49

29

Screw

7515415

$1.49
