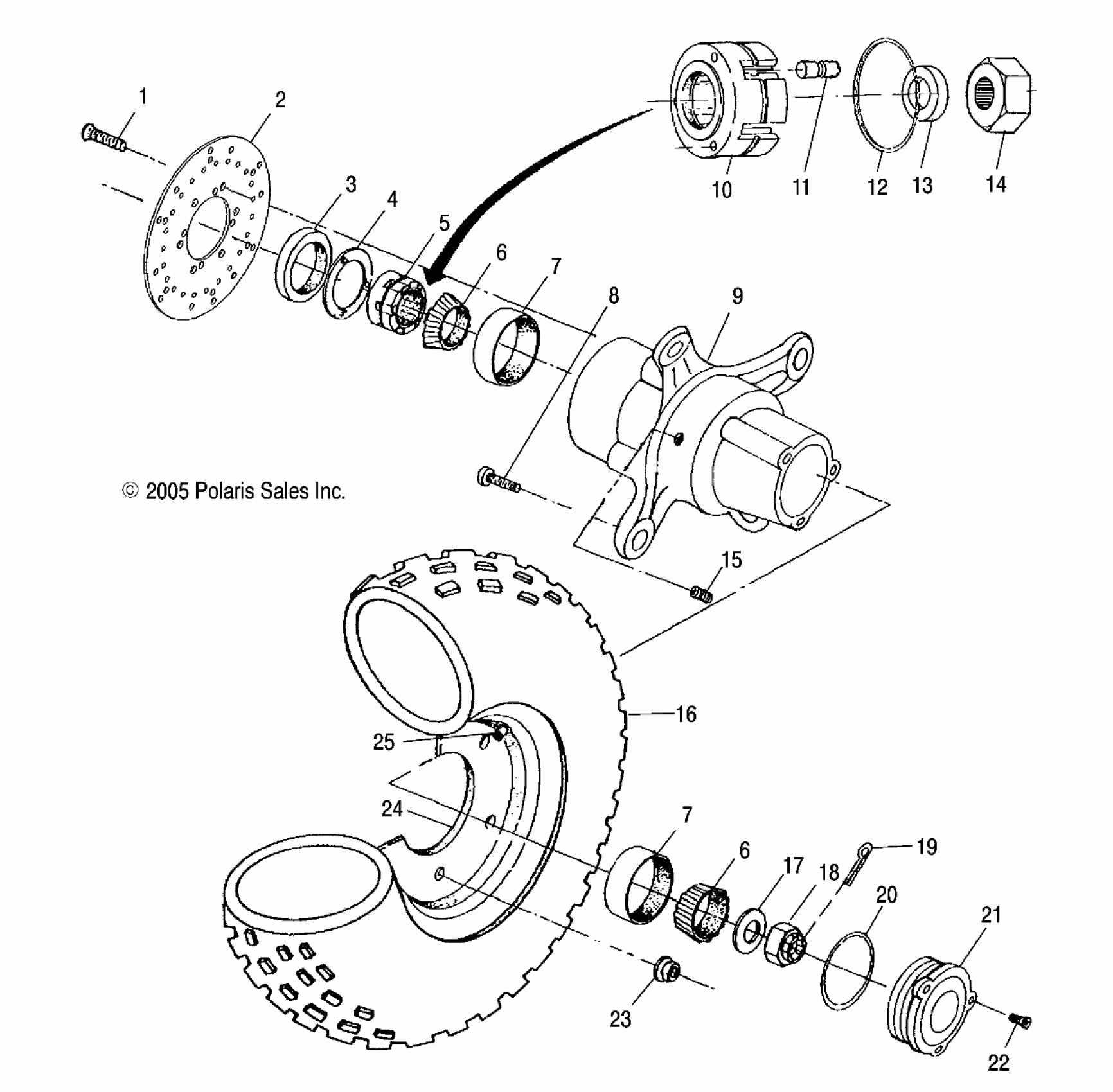

Polaris SPORTSMAN 6X6 - A08CL50AA WHEELS, FRONT - A08CL50AA (4999201649920164B03) Diagram

#

Description
Price

1

BOLT

7512325

$2.39

2

Disc, Brake

5243676

Unavailable

3

Seal, Front Hub

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

Clutch, Front Hub, Elec./Mech.

1520281

$354.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

8

Stud

7515513

$1.49

9

Asm., Hub w/Bearing Race [Incl. 3,7,8]

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

Roll

3250010

$35.99

12

Spring, Garter

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

Plug, Magnetic Drain

7052045

$12.79

16

Tire, 25x8-12 [Built 1/09/08 and Before]

5410947

Unavailable

16

Tire, 25x8-12 [Built 1/10/08 and After]

5412396

Unavailable

17

WASHER

7556004

$7.19

18

NUT, SLOTTED

7542810

$3.19

19

PIN, COTTER

7661402

$1.86

20

O-Ring

5410470

$2.41

21

Cap, Hub

5432611

$14.39

22

Screw

7512027

$1.49

23

NUT, FLANGE

7547237

$2.39

24

RIM, FRONT, BLACK

1520269-067

Unavailable

25

VALVE-RIM

1525017

$5.59
