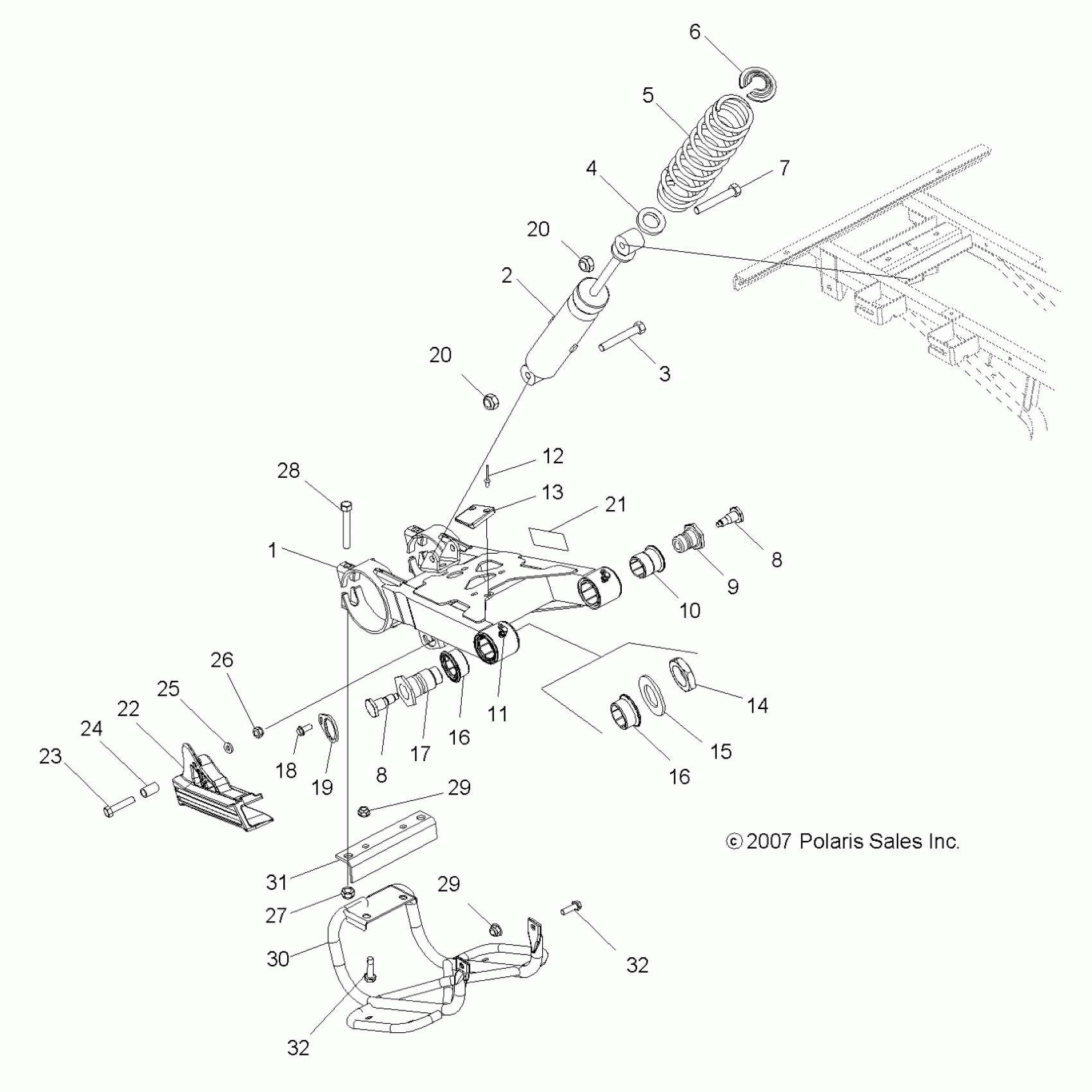

Polaris SPORTSMAN 6X6 - A08CL50AA SUSPENSION, SWING ARM and SHOCK MOUNTING - A08CL50AA (49ATVSHOCKMTG086X6) Diagram

#

Description
Price

1

Asm., Swing Arm [Incl. 10,11,16]

1541583

$357.14

2

Shock, Mid Axle

7041962

$230.70

3

Bolt

7515438

$4.76

4

Washer

7556142

Unavailable

5

Spring, Compression, Black

7041987-067

Unavailable

6

RETAINER-SPRING,STEEL

5251753

$10.32

7

Screw

7515415

$1.19

8

Bolt, Pivot

5134321

$40.46

8

Bolt, Pivot

5134321

$40.46

9

Bushing, LH

5133166

$31.75

10

Bushing, Black, LH

5434545

$8.73

11

FITTING, ZERK

7080510

$5.56

12

Rivet

7661046

$3.97

13

Guide, Chain Pad

5432727

Unavailable

14

Nut, Hex, Jam

7547082

$32.37

15

Washer, Flat

7556035

Unavailable

16

Bushing, Black, RH

5434546

$8.73

16

Bushing, Black, RH

5434546

$8.73

17

Bushing, Pivot, RH

5133167

$35.71

18

SCREW

7515399

$1.19

19

Bracket, Bolt Lock

5247488

Unavailable

20

Nut, Nylok

7542439

$1.19

20

Nut, Nylok

7542439

$1.19

21

Decal, "Chain Free Play"

7078572

Unavailable

22

Guard, Chain

5432854

Unavailable

23

Screw, Flange

7515304

$5.56

24

Bushing

5332828

$9.70

25

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

27

Nut, Flange

7542522

$3.84

28

Bolt

7512586

Unavailable

29

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

29

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

30

Guard, Swing Arm, Black

1013328-067

Unavailable

31

Mount, Rock Guard, Bracket, Black

5222221-067

$8.98

32

Bolt, Flange

7515398

$2.38

32

Bolt, Flange

7515398

$2.38
