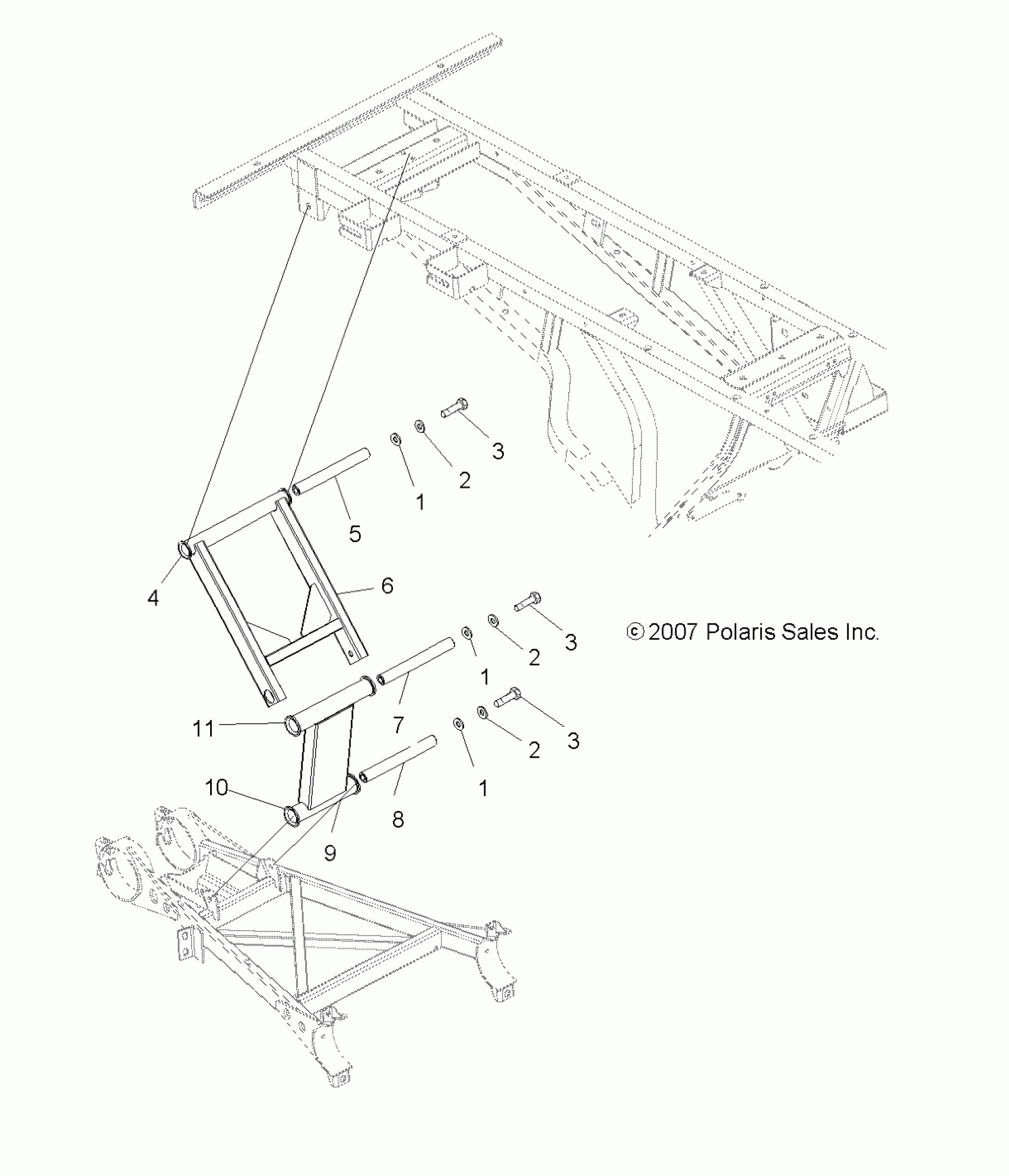

Polaris SPORTSMAN 6X6 - A08CL50AA SUSPENSION, REAR STRUT STABILIZER - A08CL50AA (49ATVSTABILIZER086X6) Diagram

#

Description
Price

1

WSHR-.813X.406X.105-Y

7555832

$2.38

1

WSHR-.813X.406X.105-Y

7555832

$2.38

1

WSHR-.813X.406X.105-Y

7555832

$2.38

2

Washer, Spring Lock

7552603

$0.79

2

Washer, Spring Lock

7552603

$0.79

2

Washer, Spring Lock

7552603

$0.79

3

Screw

7512492

$1.19

3

Screw

7512492

$1.19

3

Screw

7512492

$1.19

4

Bushing, A-Arm, Long, Black

5434551

$5.56

5

Shaft, Upper, Stabilizer

5020764

Unavailable

6

Stabilizer, Upper, Black

1541853-067

Unavailable

7

Shaft, Stabilizer

5020765

Unavailable

8

Shaft, Stabilizer, Lower

5020766

$49.99

9

Stabilizer, Lower, Black

1541852-067

Unavailable

10

Bushing, A-Arm, Short, Black

5434548

$2.38

11

Bushing, Stabilizer, Long, Black

5434553

$8.99
