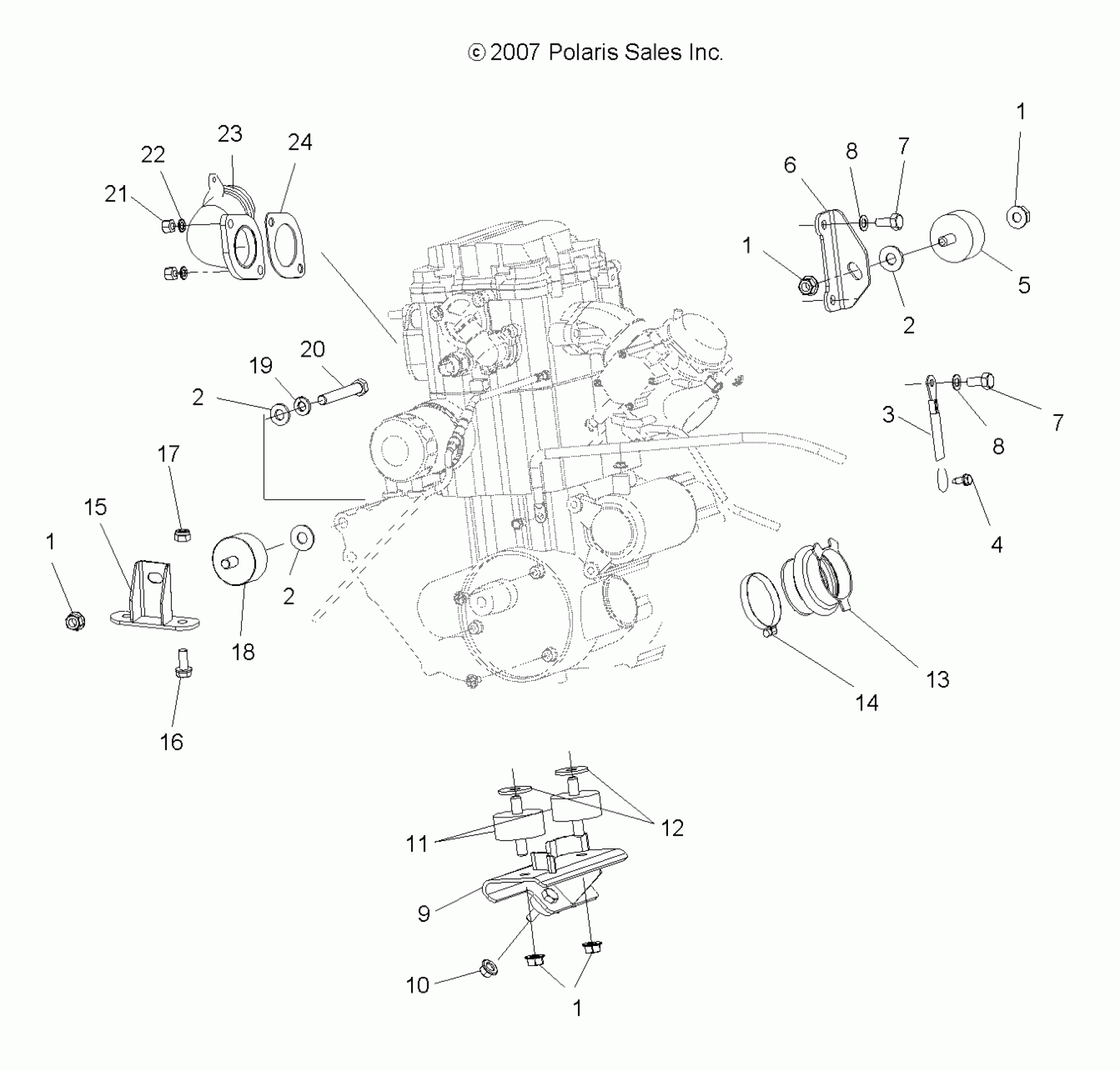

Polaris SPORTSMAN 6X6 - A08CL50AA ENGINE, MOUNTING - A08CL50AA (49ATVENGINEMTG086X6) Diagram

#

Description
Price

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

2

Washer

7555801

$3.97

2

Washer

7555801

$3.97

2

Washer

7555801

$3.97

3

Cable, Ground/Engine

4010132

Unavailable

4

Bolt

7512232

$1.19

5

Isolator

3022271

Unavailable

6

BRACKET, MOUNT, ENGINE, TOP

5242674

Unavailable

7

BOLT

7512315

$4.76

7

BOLT

7512315

$4.76

8

WASHER, SPRING LOCK

7552901

$1.19

8

WASHER, SPRING LOCK

7552901

$1.19

9

Mount, Rear Engine, Black

1014993-067

$24.60

10

Nut, Flange, Lock

7547089

$4.76

11

Mount, Rubber, Front

3110046

Unavailable

12

WASHER, FLAT

7555815

$3.97

13

BOOT, CLUTCH INTAKE

5412487

Unavailable

14

Clamp, Narrow Band

7080511

$4.76

15

Mount, Engine, Front, Black

1040688-067

$14.68

16

SCREW

7515398

$2.38

17

NUT-5/16-18 NYLOK-Y

7542324

$0.79

18

Mount, Motor

3110067

Unavailable

19

Washer, Spring Lock

7552603

$0.79

20

SCREW

7515417

$4.76

21

Nut

3087199

Unavailable

22

Washer, Spring Lock

3080530

$3.17

23

Manifold, Black

1261391-029

$189.99

24

GASKET

3085075

$40.46
