ENGINE, CYLINDER and HEAD - A08CL50AA (49ATVCYLINDER08SP500)

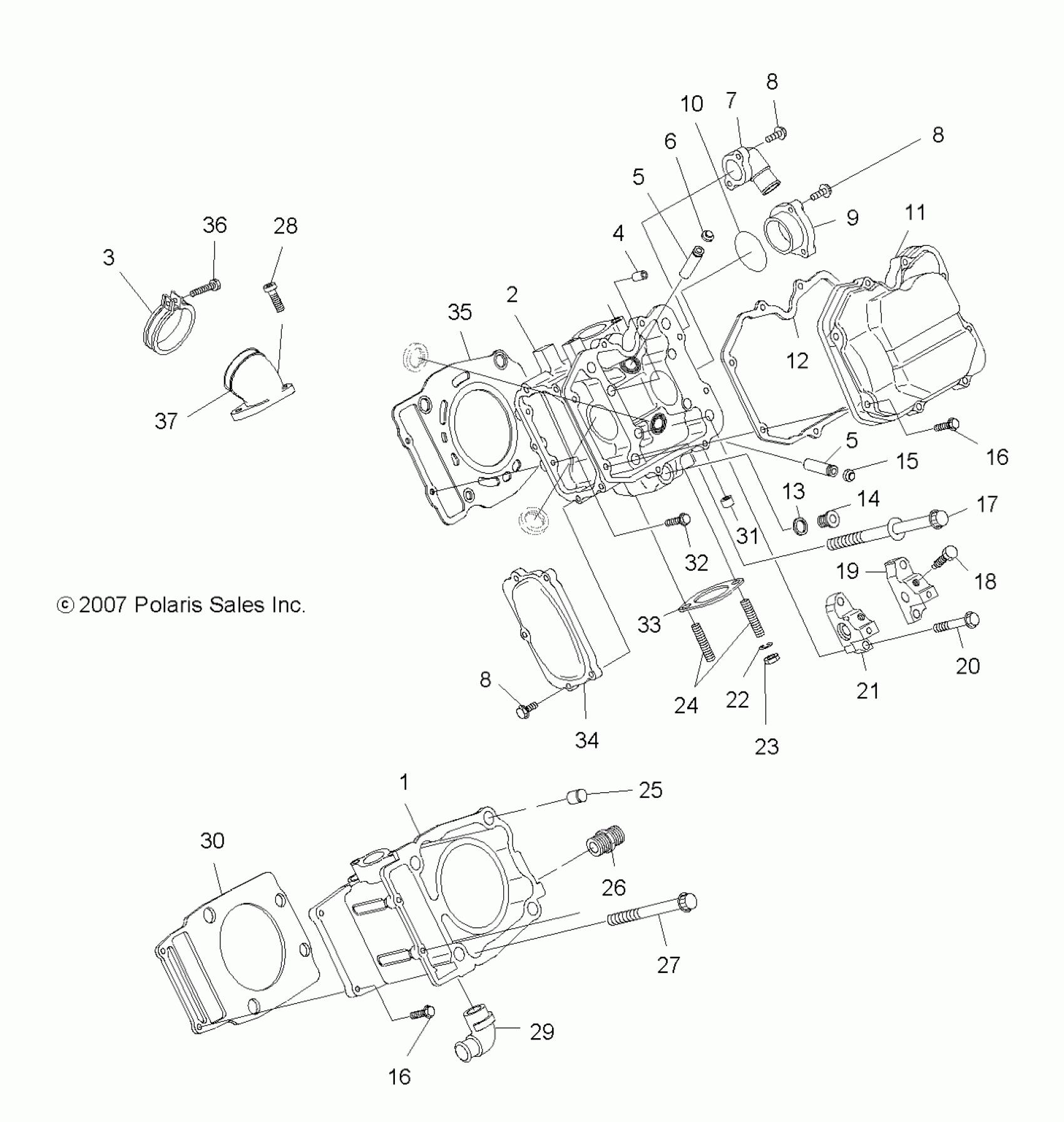

Polaris SPORTSMAN 6X6 - A08CL50AA ENGINE, CYLINDER and HEAD - A08CL50AA (49ATVCYLINDER08SP500) Diagram
#
Description
Price
1
Asm., Cylinder [Incl. 29]
3089256
$417.29
2
HEAD, CYLINDER, COMPLETE [INCL. 4-6,13-15,24,31]
3085527
$712.79
3
Asm., Band [Incl. 36]
3083166
$19.84
4
Pin, Straight
3084857
Unavailable
5
GUIDE, VALVE
3084994
$39.99
5
GUIDE, VALVE
3084994
$39.99
6
Seal, Intake Valve
3084858
$13.59
7
ADAPTER
3084870
$59.99
8
BOLT, FLANGE
3084877
Unavailable
8
BOLT, FLANGE
3084877
Unavailable
8
BOLT, FLANGE
3084877
Unavailable
9
ADAPTER, CAMSHAFT
3084866
Unavailable
10
O-RING
3084867
$23.99
11
COVER, ROCKER
3085073
$75.99
12
GASKET, ROCKER COVER
3085074
$31.99
13
GASKET
3084861
$4.79
14
PLUG
3084860
$7.19
15
SEAL, EXHAUST VALVE
3084859
$23.99
16
BOLT, FLANGE
3084874
Unavailable
16
BOLT, FLANGE
3084874
Unavailable
17
BOLT
3084875
Unavailable
18
BOLT, ROCKER SHAFT
3085854
Unavailable
19
SUPPORT, VALVE ROCKER SHAFT
3084864
Unavailable
20
BOLT
3084876
$4.79
21
SUPPORT, VALVE ROCKER SHAFT
3084863
$91.99
22
Washer, Spring Lock
3080530
$3.19
23
Nut
3087199
Unavailable
24
Stud
3085326
Unavailable
25
PIPE, KNOCK
3087266
Unavailable
26
Union
3084849
Unavailable
27
BOLT, FLANGE
3084873
Unavailable
28
BOLT, SOCKET HEAD
3081330
$3.99
29
Pipe, Elbow, 2
3086747
Unavailable
30
Gasket, Cylinder
3085370
$38.60
31
PLUG, BLIND
3084862
Unavailable
32
Bolt, Flange
3086781
$4.79
33
GASKET
3085075
$39.99
34
COVER, CAMSHAFT
3089242
$55.99
35
GASKET, HEAD
3085371
$55.99
36
ASM., SCREW AND WASHER
3081497
$2.39
37
ADAPTER
3084879
Unavailable
