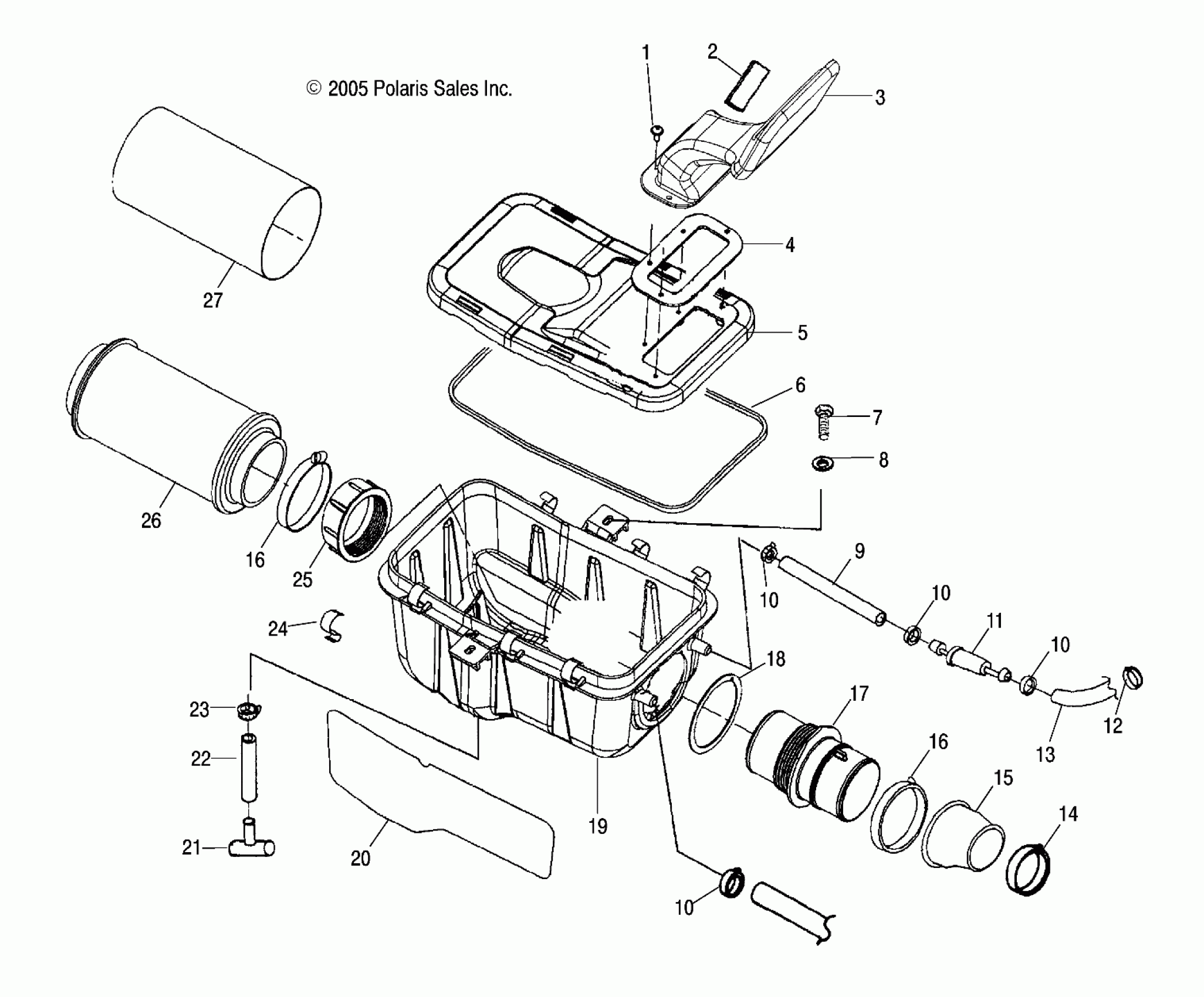

Polaris SPORTSMAN 6X6 - A08CL50AA ENGINE, AIR INTAKE SYSTEM - A08CL50AA (4999201649920164C05) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

2

Pad

5810455

$3.22

3

Duct, Inlet

5436941

$45.24

4

Gasket, Intake

5411422

$6.59

5

Cover, Air Box

5432868

$56.65

6

Seal, Cover

5812829

$28.32

7

Screw

7515179

$2.38

8

Washer, Flat

7558301

$1.19

9

Line, Breather

8450073-600

Unavailable

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

11

Filter, Breather

2530029

$6.35

12

Clamp, Hose, Spring

7080694

$6.64

13

Hose, Breather

5411921

$174.99

14

Clamp, Band

7080511

$4.76

15

Boot, Carburetor

5411540

Unavailable

16

Clamp, Band

7080413

$3.17

16

Clamp, Band

7080413

$3.17

17

Duct, Carburetor, Inlet

5432473

Unavailable

18

Gasket, Carburetor Inlet Duct

5830128

Unavailable

19

Box, Air

5433387

$137.60

20

Foil

5813042

$20.22

21

Plug, Trap

5435299

$6.46

22

Line, Fuel

8450059-150

Unavailable

23

Clamp, Hose

7080650

$3.97

24

CLIP-AIR BOX

5242044

$9.52

25

Collar, Inlet, Carburetor

5432601

$12.94

26

Filter, Air

7080595

$27.78

27

Filter, Sleeve, Precleaner

5811633

$11.90
