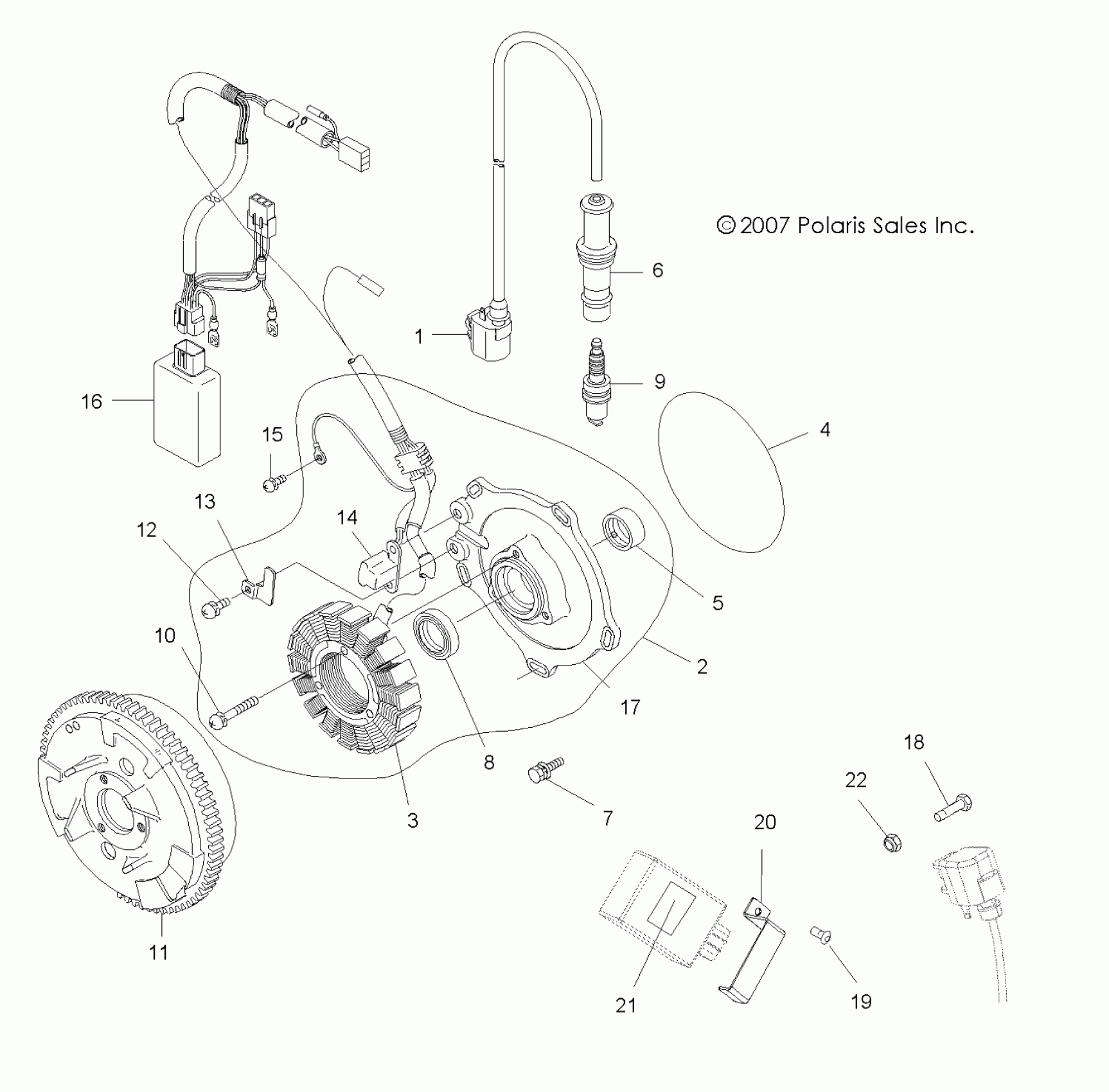

Polaris SPORTSMAN 6X6 - A08CL50AA ELECTRICAL, IGNITION SYSTEM - A08CL50AA (49ATVMAGNETO086X6) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,6]

3089239

$195.99

2

Asm., Plate [Incl. 5,6,8-13,15,17]

3089965

$699.99

3

STATOR [INCL. 14]

3089546

Unavailable

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

CAP, SPARK PLUG

3084980

$59.99

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Plug, Spark, BKR5E

3070175

$3.99

10

Screw and Washer

3089547

$3.19

11

Flywheel w/Ring Gear

3089544

Unavailable

12

Screw and Washer

3084976

Unavailable

13

BAND, PULSE

3089250

Unavailable

14

COIL, PULSER

3089254

$103.99

15

Screw and Washer

3081256

$3.19

16

CDI System

3089238

$375.99

17

PLATE

3089248

Unavailable

18

BOLT

7512007

$3.99

19

SCREW

7512024

$4.79

20

BRACKET, CDI

5246747

$7.99

21

Pad

5810317

Unavailable

22

Nut, Nylok

7541925

$1.49
