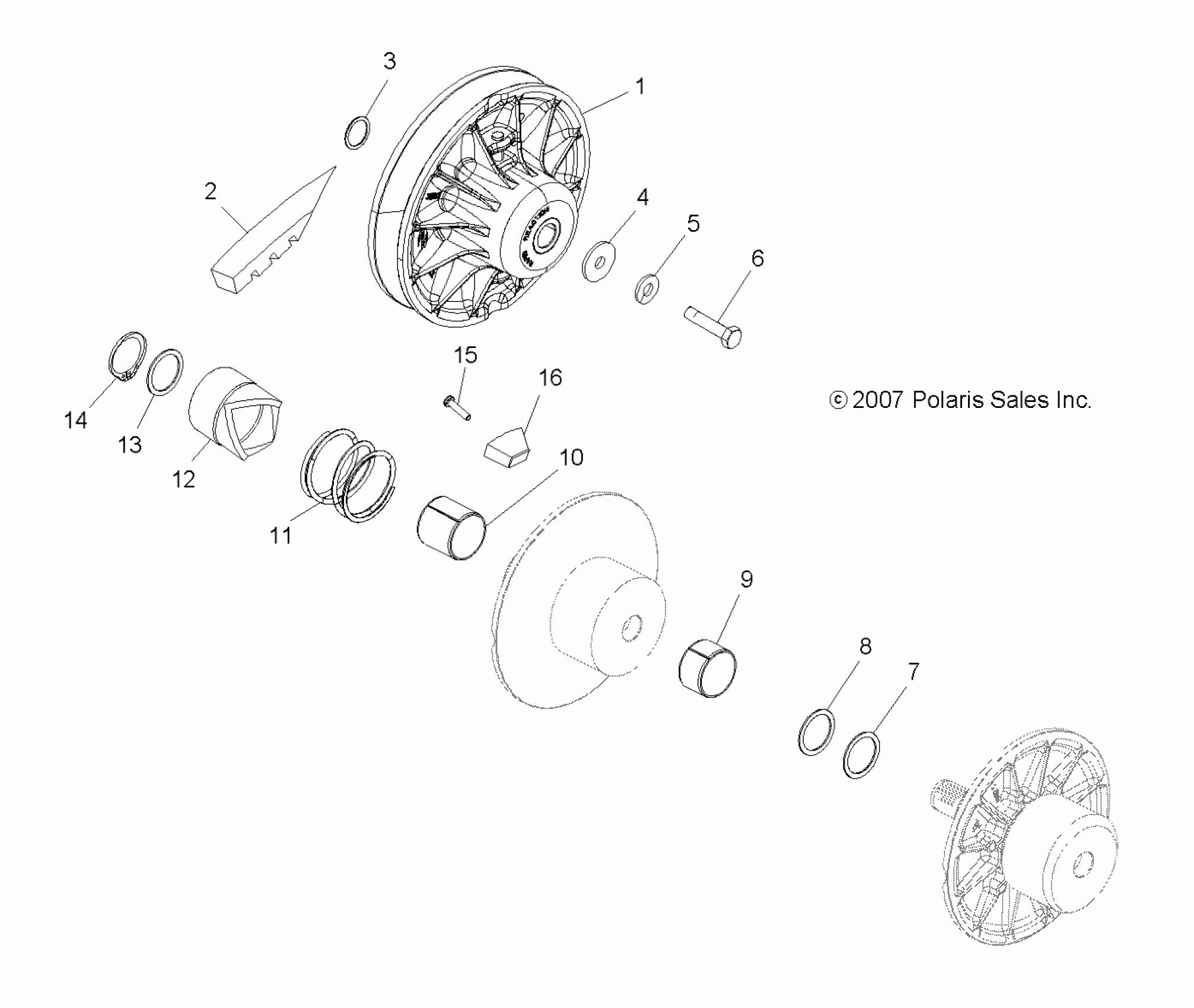

Polaris SPORTSMAN 6X6 - A08CL50AA DRIVE TRAIN, SECONDARY CLUTCH - A08CL50AA (49ATVCLUTCHDRIVEN086X6) Diagram

#

Description
Price

1

Asm., Driven Clutch [Incl. 7-14]

1322180

Unavailable

2

BELT, DRIVE

3211077

$75.99

3

BUSHING [3 MAX]

7556120

Unavailable

4

Washer, Dome

5220646

$2.38

5

WASHER, SPRING LOCK

7552901

$1.19

6

BOLT

7515382

$2.38

7

Washer, .020

7555898

Unavailable

7

Washer, .025

7556076

Unavailable

8

Washer, .030

7556804

Unavailable

9

Bushing, Moveable

3576504

$23.81

10

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

11

Spring, Clutch, Red

7041198

$56.65

12

RAMP, STATIONARY

5131446

$93.08

13

Spacer, 020

5210752

$1.59

14

Ring, Retaining

7710448

$3.17

15

Bolt

7511854

$1.19

16

Button, Ramp

5436521

$6.35
