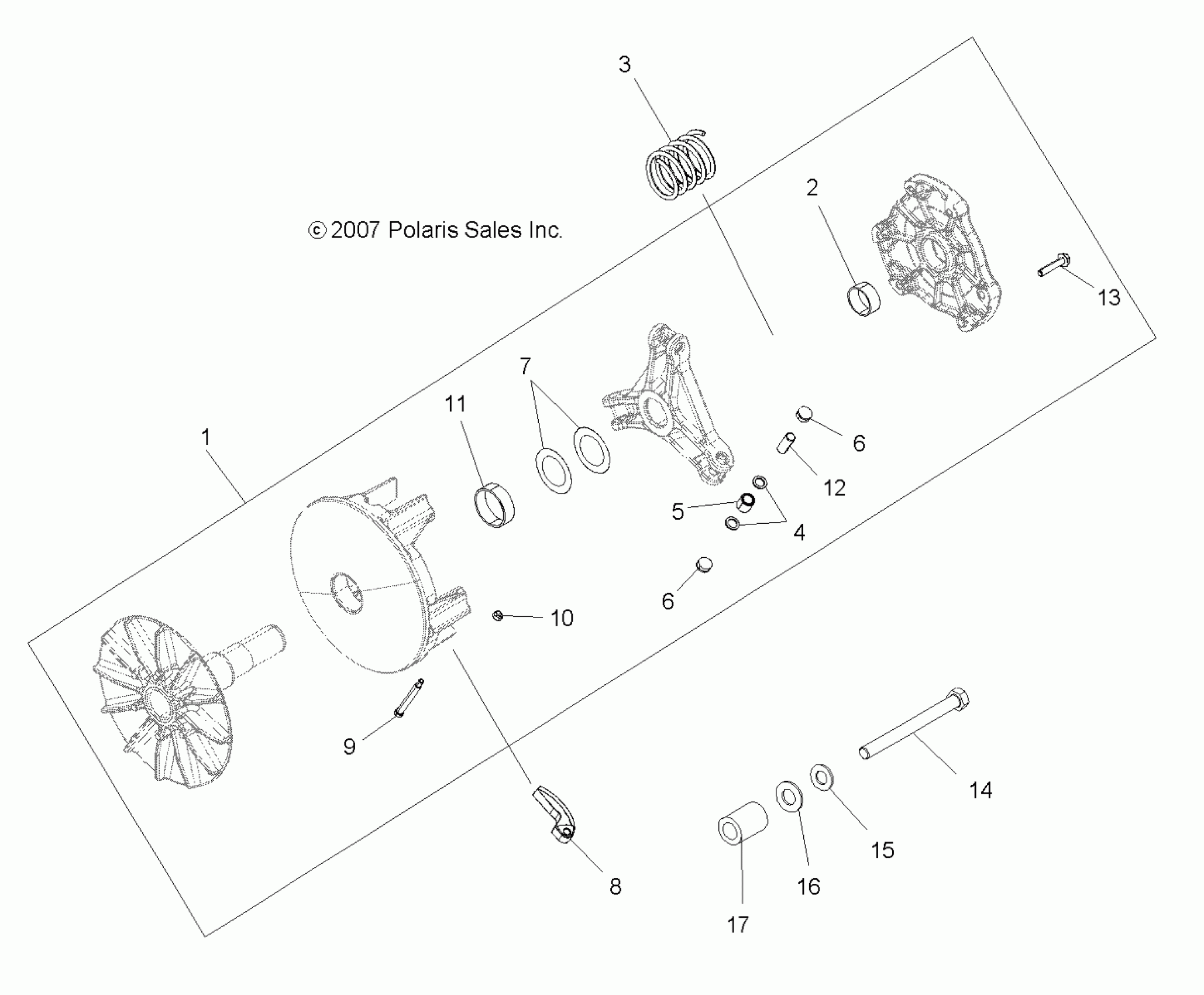

Polaris SPORTSMAN 6X6 - A08CL50AA DRIVE TRAIN, PRIMARY CLUTCH - A08CL50AA (49ATVCLUTCH086X6) Diagram

#

Description
Price

1

Asm., Drive Clutch [Incl. 1-2,4-7,9-13]

1322682

$561.59

2

Bearing, Cover

3576510

$9.59

3

SPRING, CLUTCH

7041157

$47.99

4

WASHER,MULTILUBE

5430945

$1.59

5

ASM-ROLLER AND BUSHING

1321457

$40.46

6

BUTTON, CLUTCH

5431936

Unavailable

6

BUTTON, CLUTCH

5431936

Unavailable

7

SPACER, .050

5210754

Unavailable

7

SPACER, .025

5242981

Unavailable

7

SPACER, .020

5210752

Unavailable

7

SPACER, .032

5210753

Unavailable

8

Weight, Shift, 10-MHF

5632281

$31.99

9

BOLT, SHOULDER

7512266

$3.19

10

NUT, FLEXLOC

7541906

$3.19

11

Bushing, Moveable

3576504

$23.99

12

PIN-ROLLER

5020422

$2.39

13

SCREW

7518062

$4.79

14

BOLT

7512566

$30.79

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

BUSHING-.437 X.770 X.50

5430261

$7.19
