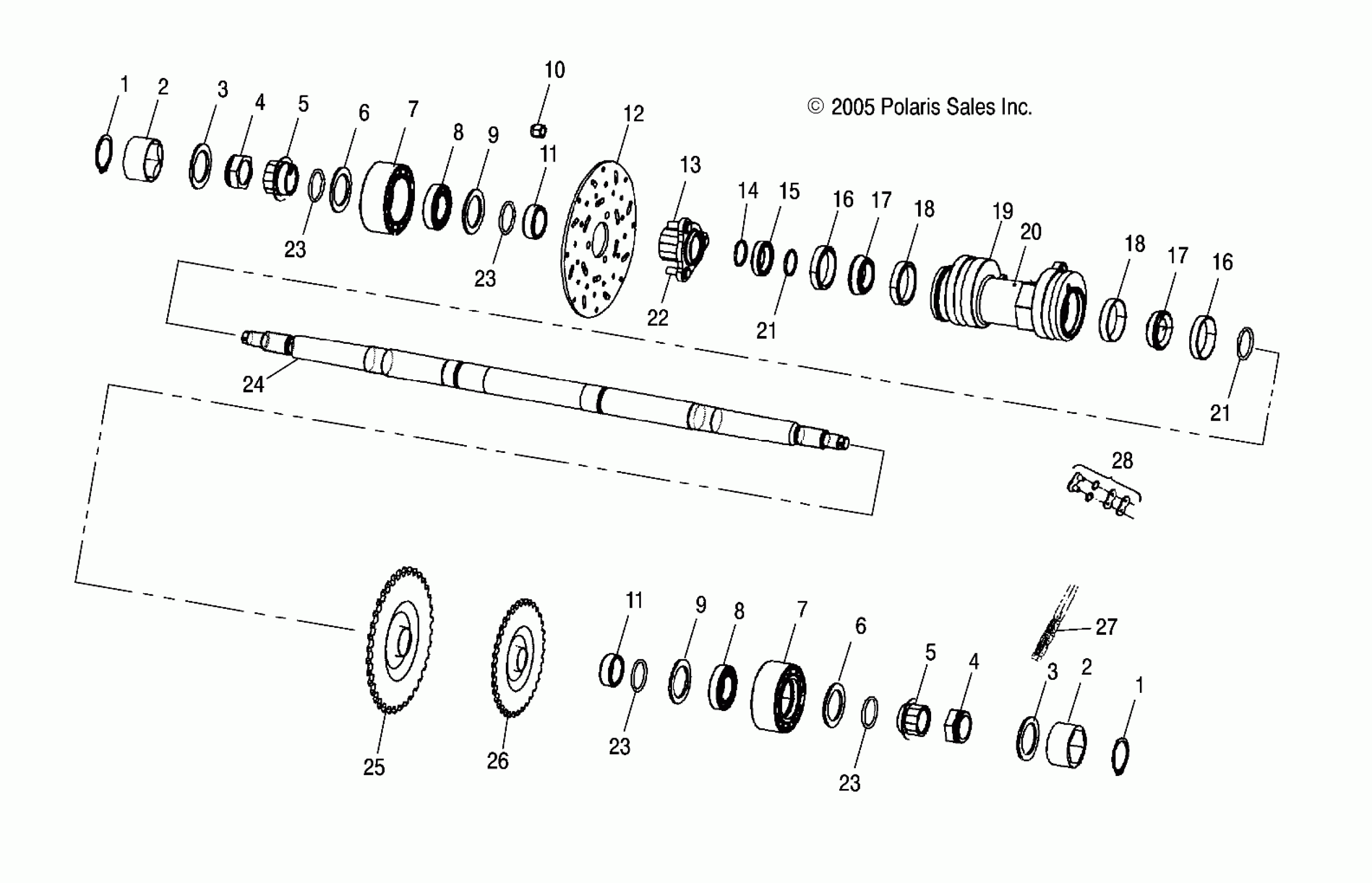

Polaris SPORTSMAN 6X6 - A08CL50AA DRIVE TRAIN, MIDDLE DRIVE - A08CL50AA (4999201649920164B11) Diagram

#

Description
Price

1

Ring, Retaining

7710472

$5.59

1

Ring, Retaining

7710472

$5.59

2

Retainer, Nut

5510372

Unavailable

2

Retainer, Nut

5510372

Unavailable

3

Seal, Foam

5411555

$13.59

3

Seal, Foam

5411555

$13.59

4

Nut, Jam

7547031

$27.99

4

Nut, Jam

7547031

$27.99

5

Hub, Locking Middle Axle

5630987

Unavailable

5

Hub, Locking Middle Axle

5630987

Unavailable

6

Seal, Inner

3610074

$39.99

6

Seal, Inner

3610074

$39.99

7

Housing, Swing Arm

5132219

$183.99

7

Housing, Swing Arm

5132219

$183.99

8

Bearing

3515501

$27.99

8

Bearing

3515501

$27.99

9

Seal, Axle, Rear

3610013

$19.99

9

Seal, Axle, Rear

3610013

$19.99

10

Nut, Nylok

7542439

$1.49

11

Spacer, Bearing

5132218

$27.99

11

Spacer, Bearing

5132218

$27.99

12

Disc, Brake

5244425

$76.89

13

Asm., Hub, Brake Disc, Locking

1520259

Unavailable

14

Ring, Snap

7710405

$4.79

15

Spacer, Axle

5010462

$27.99

16

Seal, Lip

3610070

$15.99

16

Seal, Lip

3610070

$15.99

17

Bearing, Cone, Tapered

3554518

$39.99

17

Bearing, Cone, Tapered

3554518

$39.99

18

Bearing, Cup, Tapered

3554517

$15.99

18

Bearing, Cup, Tapered

3554517

$15.99

19

Housing, Axle, Rear

5132098

$115.99

20

Fitting, Lubrication

7080306

$3.19

21

O-Ring

5410889

Unavailable

21

O-Ring

5410889

Unavailable

22

Stud

7515513

$1.49

23

O-Ring

5411739

$6.99

23

O-Ring

5411739

$6.99

23

O-Ring

5411739

$6.99

23

O-Ring

5411739

$6.99

24

Axle, Middle

5132049

Unavailable

25

Sprocket, 38T

3221139

$99.99

26

Sprocket, 30T

3221138

$89.03

27

Chain, 80P

3221193-080

$129.51

28

Link, Connector

3221192

$27.99
