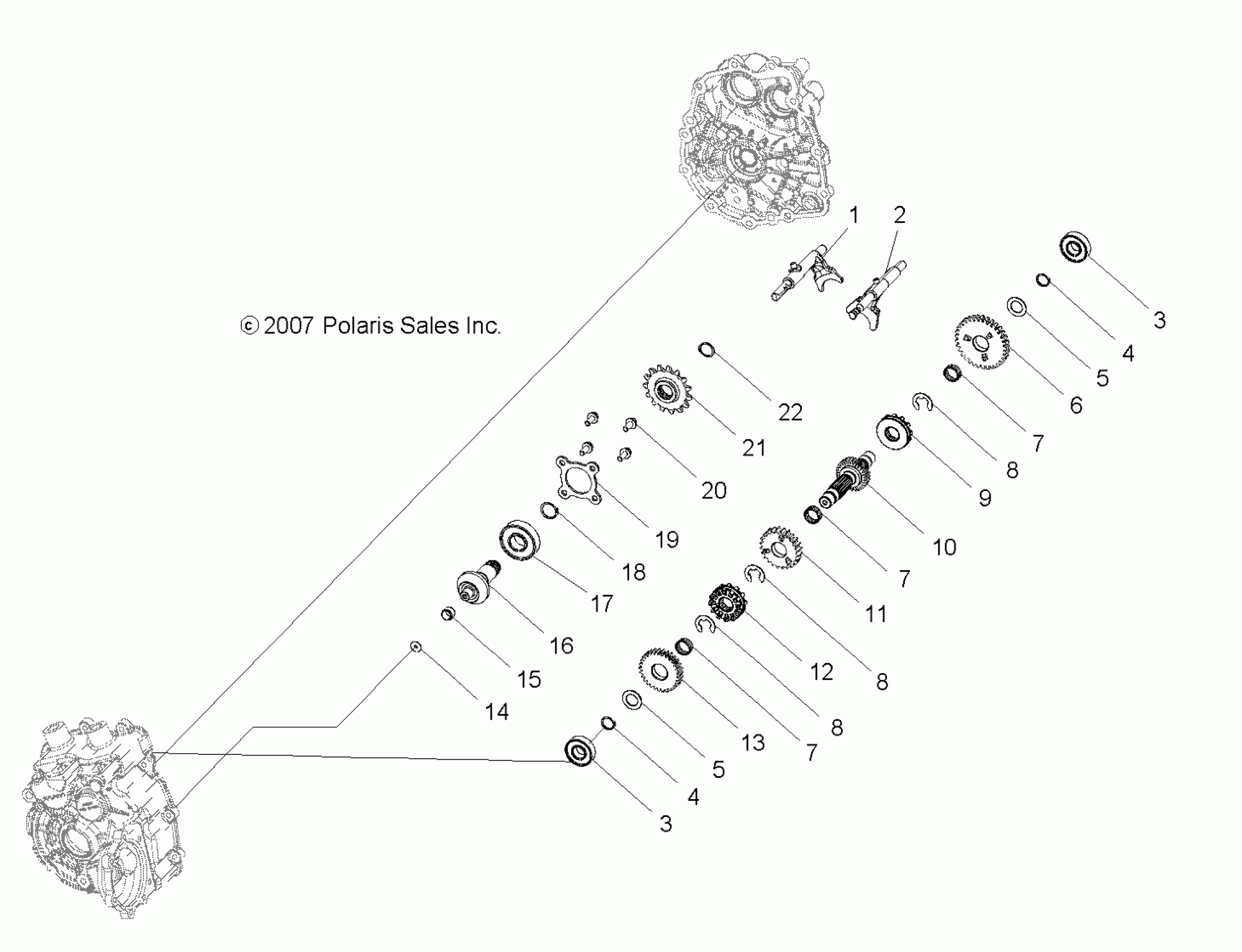

Polaris SPORTSMAN 6X6 - A08CL50AA DRIVE TRAIN MAIN GEARCASE INTERNALS - A08CL50AA (49ATVTRANSINTL) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341428

Unavailable

1

Fork, Shift, Low

3233706

$119.05

2

Fork, Shift, High/Reverse

3233633

$141.65

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

4

Ring, Retaining

3233177

$6.46

4

Ring, Retaining

3233177

$6.46

5

Washer

3233176

$9.52

5

Washer

3233176

$9.52

6

Gear, 33T

3233731

Unavailable

7

BEARING, NEEDLE

3233718

$35.71

7

BEARING, NEEDLE

3233718

$35.71

7

BEARING, NEEDLE

3233718

$35.71

8

Ring, Retaining

3233720

$9.52

8

Ring, Retaining

3233720

$9.52

8

Ring, Retaining

3233720

$9.52

9

Dog, Engagement, Low

3233732

$178.08

10

Shaft, Reverse, 29T

3233733

Unavailable

11

Sprocket, 24T

3233719

$109.27

12

Dog, Engagement, High/Reverse

3233721

Unavailable

13

Gear, 30T

3233722

Unavailable

14

Washer, Thrust

3233542

$11.32

15

Bushing

3233541

$23.81

16

Shaft, Pinion

3233540

$158.73

17

BEARING

3233020

$47.62

18

RING, RETAINING

3233306

$4.76

19

Cover, Bearing

3233263

Unavailable

20

Screw

3233539

Unavailable

21

Sprocket, 15/22T

3233730

Unavailable

22

Ring, Retaining

3233537

$6.99
