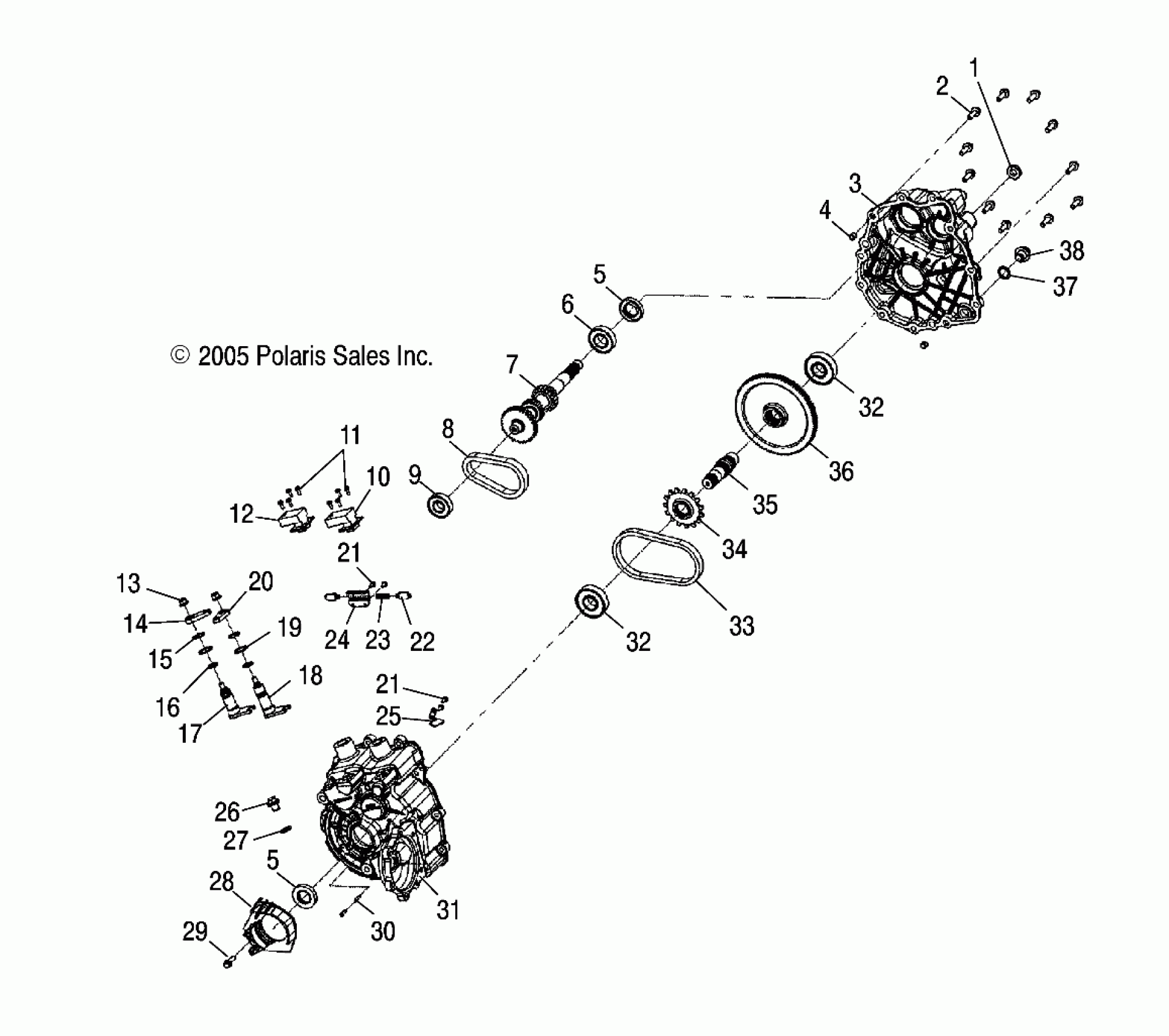

Polaris SPORTSMAN 6X6 - A08CL50AA DRIVE TRAIN, MAIN GEARCASE - A08CL50AA (4999201649920164C13) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341428

Unavailable

1

Bushing, Pivot

3233527

$35.19

2

Screw

3233252

$5.27

3

Gearcase, LH

3233632

$354.99

4

Pipe, Knock

3233529

$7.99

5

Seal, Triple Lip

3233788

$31.99

5

Seal, Triple Lip

3233788

$31.99

6

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

7

Shaft, Input

3233704

Unavailable

8

Chain, Silent

3233036

Unavailable

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

Switch, 3 Position

3234002

$174.99

11

SCREW

3233749

$5.59

12

Switch, 2 Position

3234001

Unavailable

13

Nut, Flange Lock

3233961

$2.79

14

Bellcrank

3234148

$39.99

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

O-Ring

3233548

$27.99

17

Shaft, Shift

3233549

Unavailable

18

Shaft, Shift, High/Reverse

3233737

$71.99

19

Washer

3233040

$9.59

20

Bellcrank, HLR

3234147

Unavailable

21

Screw, Tapping w/Lock Washer

3233747

Unavailable

21

Screw, Tapping w/Lock Washer

3233747

Unavailable

22

Pin, Interlock

3233308

Unavailable

23

Spring

3233032

$12.94

24

Bracket, Interlock

3233309

$20.63

25

Deflector, Oil

3233043

$13.19

26

Plug, Oil Fill

3233711

Unavailable

27

Washer, Nylon

3233872

$9.59

28

Guide, Chain

3233897

$48.39

29

Screw

3233026

$6.46

30

Vent

3233037

Unavailable

31

Gearcase, RH

3233895

Unavailable

32

BEARING

3233020

$47.99

32

BEARING

3233020

$47.99

33

Chain, Roller

3233546

$67.99

34

Sprocket, 15/26T

3233729

$97.13

35

Shaft, Output

3233544

$174.99

36

Gear, 100T

3233360

Unavailable

37

Washer

3233035

Unavailable

38

Plug

3233448

$23.99
