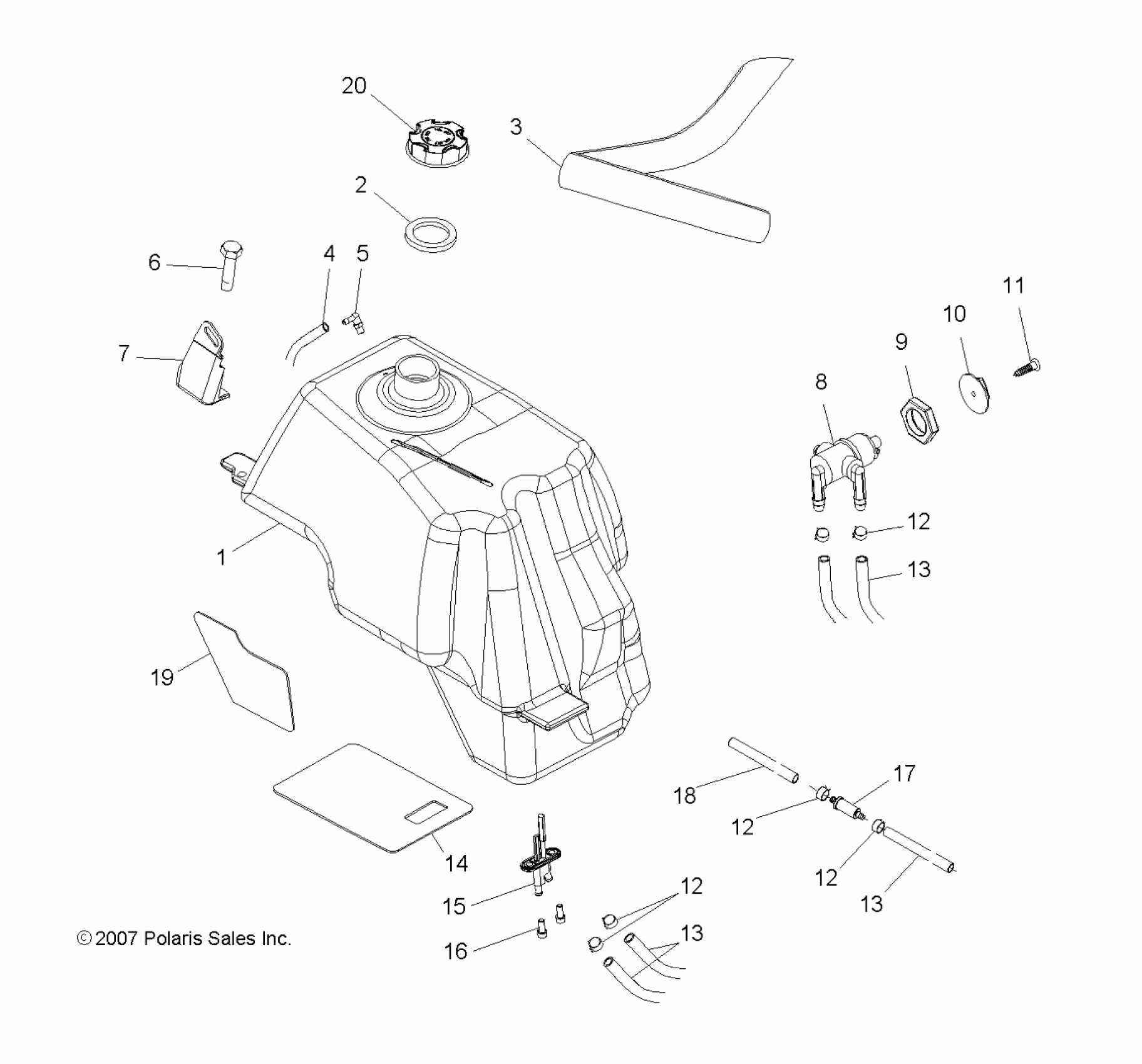

Polaris SPORTSMAN 6X6 - A08CL50AA BODY, FUEL SYSTEM - A08CL50AA (49ATVFUEL086X6) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 14-16,19]

2520407

Unavailable

2

GASKET

5812123

$5.65

3

Seal, Foam

5811310

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Screw

7515179

$2.39

7

Bracket, Fuel Mounting, Cover, LH

5222154

Unavailable

7

Bracket, Fuel Mounting, Cover, RH

5222155

Unavailable

8

Valve, 3-Way

7052161

$39.99

9

Nut, Fuel Valve

5432733

Unavailable

10

Knob, Fuel Valve

5432559

$10.39

11

Screw

7517505

$1.59

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

13

Line, Fuel

8450103

Unavailable

13

Line, Fuel

8450103

Unavailable

13

Line, Fuel

8450103

Unavailable

14

Foil

5813045

$19.99

15

Fitting, Dual, Outlet

7052364

Unavailable

16

Screw

7515136

$1.49

17

FILTER, SMALL, IN-LINE

2530009

$5.65

18

Sheath, Reflect Sleeve

8450105-65

Unavailable

19

Foil

5813044

$20.22

20

Cap, Gas Tank

5433687

$20.22
