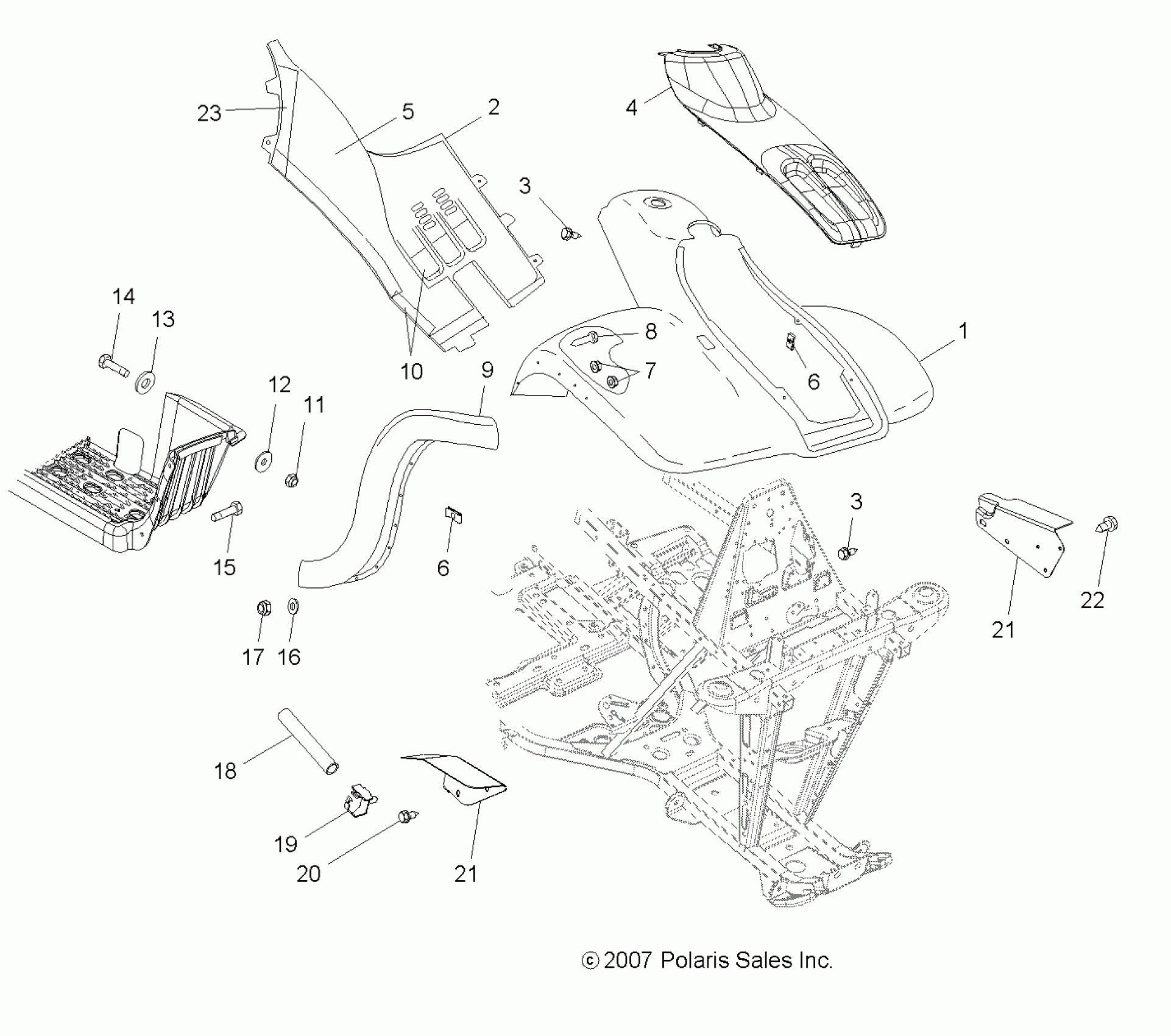

Polaris SPORTSMAN 6X6 - A08CL50AA BODY, FRONT CAB - A08CL50AA (49ATVCAB086X6) Diagram

#

Description
Price

1

Asm., Cab, Front, Sage Brush Green Metallic [w/Warning Decals]

2632986-498

$261.90

2

Foam, LH

5812138

$6.39

2

Asm., Panel/Foam, Black Metallic, RH [Incl. Foil]

2632782-177

Unavailable

2

Asm., Panel/Foam, Black Metallic, LH [Incl. Foam]

2632663-177

$115.99

3

SCREW

7517386

$1.49

3

SCREW

7517386

$1.49

4

Cover, Front, Sage Brush Green Metallic

5435110-498

$66.39

5

Foil, Foam

5810996

$55.99

6

NUT, SPEED

7670057

$1.49

6

NUT, SPEED

7670057

$1.49

7

Nut, Speed

7670135

$4.79

8

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

9

Guard, Mudflap, Front, Black, LH

5431798-070

$79.99

9

Guard, Mudflap, Front, Black, RH

5431799-070

$84.99

10

Foil

5811110

$12.39

11

Nut, Nylok

7541925

$1.49

12

WASHER

7555792

$4.79

13

WASHER

7556034

$2.39

14

Screw

7512085

Unavailable

15

Bolt

7512232

$1.49

16

Washer

7555931

Unavailable

17

Nut, Nylok

7542122

$1.49

18

Line, Breather

5412191

$15.67

19

CLIP, ROUTING

7670109

$2.39

20

RIVET

7621509

$1.49

21

Guard, Splash, Black, RH

5246316-067

$35.19

21

Guard, Splash, Black, LH

5246315-067

$26.19

21

Guard, Splash, Black, RH

5246316-067

$35.19

21

Guard, Splash, Black, LH

5246315-067

$26.19

22

SCREW

7517685

$1.59

23

Foil, Side Panel, RH

5811491

Unavailable
